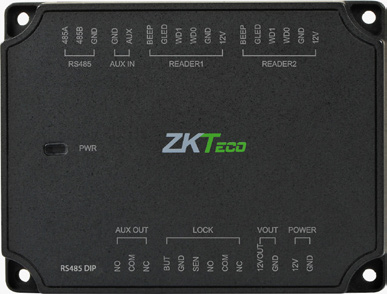

ZKTeco EC10 Elevator Access Controller

EC10 Elevator Control Panel

The EC10 Elevator Control Panel is a dedicated elevator access control solution designed to restrict access to authorized floors using secure user credentials. It supports fingerprint, RFID card, and password authentication, making it suitable for controlled elevator access in commercial buildings, offices, residential properties, and other facilities.

The EC10 can control access to up to 10 floors independently. By connecting EX16 elevator floor extension boards, a single EC10 bundle can control up to 58 floors. Multiple EC10 panels can also be daisy-chained together to control as many floors as required.

Key Features

• Dedicated elevator access control panel.
• Controls access to up to 10 floors.
• Supports up to 3 EX16 elevator floor extension boards.
• Up to 58 floors can be controlled with a single EC10 and EX16 bundle.
• Multiple EC10 panels can be daisy-chained for larger installations.
• Supports fingerprint, RFID card, and password authentication.
• Floor access can be restricted according to user credentials.
• Supports predefined time schedules for floor access.
• Passage mode can allow unrestricted floor access during normal business hours.
• Supports TCP/IP and RS485 communication with a PC.
• RS485 communication with EX16 extension boards.
• SDK available for software integration.

Product Advantages

• Provides dedicated and controlled access to elevator floors.
• Flexible authentication options improve access security.
• Expandable architecture supports larger elevator installations.
• Up to three EX16 boards can be connected to a single EC10.
• Daisy-chaining EC10 panels allows the system to scale for additional floors.
• Time-based access schedules provide flexible floor permissions.
• Passage mode supports unrestricted access during defined periods.
• High-capacity fingerprint, RFID card, and event storage support larger deployments.

Technical Specifications

Main Features

• 10-floor elevator access control.
• Fingerprint authentication.
• RFID card authentication.
• Password authentication.
• 3,000 fingerprint capacity.
• 30,000 RFID card capacity.
• 100,000 event capacity.
• 16 floor button control relays.
• Supports up to 3 EX16 boards.
• Up to 58 floors with EC10 and EX16 expansion.
• TCP/IP and RS485 communication.
• Time-based floor access control.
• Passage mode.
• SDK support for software integration.

Applications

• Commercial Buildings
• Corporate Offices
• Residential Buildings
• Apartment Complexes
• Hotels
• Hospitals
• Educational Institutions
• Government Buildings
• Industrial Facilities
• Restricted-Floor Access Systems

Why Choose the EC10 Elevator Control Panel?

• Purpose-built for secure elevator floor access control.
• Supports multiple authentication methods including fingerprint, RFID card, and password.
• Expandable up to 58 floors using EX16 extension boards.
• Multiple EC10 panels can be daisy-chained for larger elevator systems.
• High RFID card capacity of up to 30,000.
• Fingerprint capacity of up to 3,000 users.
• Stores up to 100,000 access events.
• Time schedules provide flexible floor access permissions.
• TCP/IP and RS485 communication enable system integration.
• SDK availability supports customized software integration.
