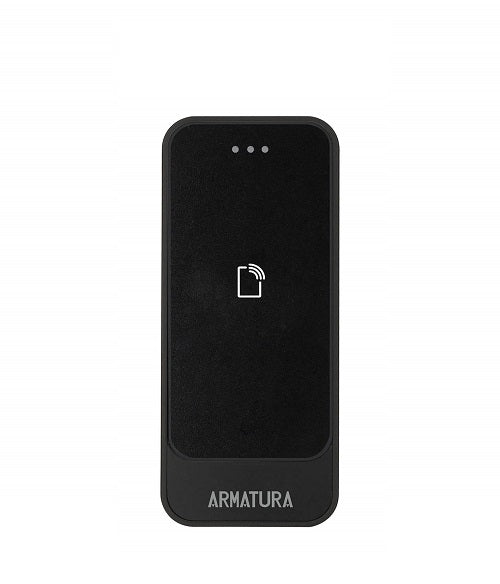

ZKTeco EP10C[DF] Multi-Tech Card Reader

ZKTeco EP10C[DF] Multi-Tech Card Reader

The ZKTeco EP10C[DF] is a compact multi-technology RFID reader designed for secure and flexible access control applications. Supporting over 100 RFID credential types, the reader combines 125 kHz, 13.56 MHz RFID and 2.4 GHz Bluetooth technologies in a compact mullion-style form factor.

The EP10C[DF] supports both Wiegand and OSDP v2.2 communication, making it suitable for integration with modern access control panels. AES128-secured communication and secure credential storage in an EAL5+ certified crypto chip provide enhanced protection for access credentials and reader-to-controller communication.

With IP68 weather and dust protection and an IK10 vandal-resistant structure, the EP10C[DF] is suitable for demanding indoor and outdoor access control installations. Its compact design makes it particularly suitable for mullion-mounted doors and other space-constrained locations.

Key Features

• Compact multi-technology RFID reader for access control applications.
• Supports over 100 RFID credential types.
• 125 kHz RFID support.
• 13.56 MHz RFID support for ISO14443A Types A & B and ISO15693.
• 2.4 GHz Bluetooth Low Energy support.
• Supports Wiegand communication up to 128 bits.
• OSDP v2.2 communication via RS-485.
• Up to 128-bit SCP secure communication support.
• AES128 secured communication between reader and controller.
• Secure credential data storage using an EAL5+ certified crypto chip.
• IP68 weather and dust-proof protection.
• IK10 certified reinforced vandal-resistant structure.
• RGB LED visual indicator with configurable settings.
• Internal buzzer with adjustable intensity.
• Suitable for mullion-mount and flat-surface installations.
• Bluetooth smartphone reading distance of up to 10 metres, depending on configuration and environment.

Multi-Technology Credential Support

Communication & Security

Durability & Protection

• IP68 weather and dust-proof protection.
• IK10 reinforced vandal-resistant structure.
• Polycarbonate housing with UL94-V0 & UL746C (F1) compliance.
• Operating temperature from -30°C to 70°C.
• Designed for demanding indoor and outdoor access control environments.
• UV stability with no structural degradation specified for the life of the reader over 3 years.

Technical Specifications

Installation & Applications

The compact design of the EP10C[DF] makes it suitable for installations where available mounting space is limited. It can be installed on mullion-mounted doors as well as suitable flat surfaces.

• Corporate Offices
• Commercial Buildings
• Hotels & Hospitality
• Educational Institutions
• Healthcare Facilities
• Industrial Facilities
• Residential Buildings
• Government Buildings
• Data Centers
• Secure Access Points
• Outdoor Access Control Gates
• High-Security Door Applications

Why Choose ZKTeco EP10C[DF]?

• Compact mullion-style design for space-constrained installations.
• Supports multiple RFID technologies in a single reader.
• Supports both RFID credentials and Bluetooth mobile credentials.
• OSDP v2.2 and Wiegand connectivity for flexible access control integration.
• AES128 secure communication and EAL5+ secure credential storage.
• IP68 protection for demanding outdoor environments.
• IK10 vandal-resistant construction for improved physical protection.
• RGB LED and adjustable buzzer provide intuitive user feedback.
• Wide operating temperature range from -30°C to 70°C.
