ZKTeco EP20CQ[DF] Card Reader

ZKTeco EP20CQ[DF] Card Reader

Rs. 23,636.00
Rs. 28,364.00 Rs. 23,636.00
Sale Sold out
Product Details

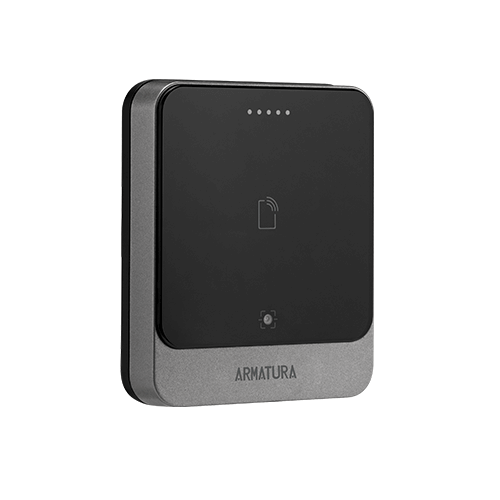

ZKTeco EP20CQ[DF] Card Reader

The ZKTeco EP20CQ[DF] is an all-weather outdoor multi-tech smart card reader designed for secure and flexible access control applications. It supports multiple RFID technologies along with Bluetooth and QR code authentication, providing users with convenient credential options for modern access control systems.

The reader supports 125 kHz and 13.56 MHz RFID technologies, including ISO14443 Type A and B and ISO15693 standards. Bluetooth connectivity enables mobile credential use with compatible smartphones, while the integrated QR code scanner supports both one-dimensional and two-dimensional codes.

With Wiegand and OSDP v2.2 communication, AES128 secured communication and secure data storage in an EAL6+ certified crypto chip, the EP20CQ[DF] is designed for advanced security installations. Its compact enclosure and wide operating temperature range make it suitable for demanding indoor and outdoor environments.

Key Features

  • All-weather outdoor multi-tech smart reader.
  • Supports over 100 RFID credential types.
  • Supports 125 kHz RFID credentials.
  • Supports 13.56 MHz RFID credentials.
  • Supports ISO14443 Type A and B standards.
  • Supports ISO15693 standard.
  • Built-in 2.4 GHz Bluetooth support.
  • Integrated QR code scanner.
  • Supports one-dimensional and two-dimensional barcode formats.
  • Wiegand communication interface.
  • OSDP v2.2 via RS-485.
  • Up to 128-bit SCP secure communication.
  • AES128 secured communication between reader and controller.
  • Secure data storage in an EAL6+ certified crypto chip.
  • RGB LED visual status indicator.
  • Internal buzzer with adjustable intensity.
  • Compact 89.8 × 107.8 × 23.6 mm housing.
  • Wide operating temperature range from -30°C to 70°C.
  • Bluetooth smartphone reading distance of up to 10 metres, depending on configuration and environment.

Product Advantages

  • Combines RFID, Bluetooth and QR code authentication in one reader.
  • Supports a wide range of RFID credential technologies.
  • Provides secure OSDP and Wiegand communication options.
  • AES128 encryption helps protect communication between the reader and controller.
  • Secure crypto-chip storage provides additional protection for sensitive reader data.
  • QR code functionality enables convenient mobile and printed credential authentication.
  • Suitable for outdoor installations and demanding environmental conditions.
  • Compact design makes it suitable for a wide range of access control doors.

RFID & Bluetooth Authentication

Multi-Frequency RFID

The EP20CQ[DF] supports 125 kHz and 13.56 MHz RFID technologies. The 13.56 MHz interface supports ISO14443 Type A, ISO14443 Type B and ISO15693 standards.

Bluetooth Credentials

The integrated 2.4 GHz Bluetooth interface supports smartphone-based credentials. Depending on the environment and reader configuration, Bluetooth smartphone reading can operate at a distance of up to 10 metres.

QR Code Authentication

The EP20CQ[DF] includes an integrated QR code scanner capable of reading supported one-dimensional and two-dimensional codes. This provides a convenient option for mobile, printed and digital credentials.

Communication & Security

  • Wiegand communication.
  • OSDP v2.2 communication via RS-485.
  • Up to 128-bit SCP secure communication.
  • AES128 secured communication between reader and controller.
  • Secure data storage in EAL6+ certified crypto chip.
  • RGB LED status indication.
  • Internal buzzer with adjustable intensity.

QR Code & Barcode Support

One-Dimensional Codes

The reader supports UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, EAN-14, EAN-128, UCC128, ISBN/ISSN, CODE11, CODE32, CODE39, CODE39 Full ASCII, CODE93, CODE128, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Toshiba Code, UK/Plessey and GS1.

Two-Dimensional Codes

Supported two-dimensional formats include QR Code, PDF417, Data Matrix, MicroPDF417 and Aztec.

Technical Specifications

Specification Details
Model ZKTeco EP20CQ[DF]
Product Type All Weather Outdoor Multi-Tech Smart Card Reader
Standard Functions RFID / Bluetooth / QR Code
Internal Number EP20CQ
Operating Frequency 125 kHz / 13.56 MHz / 2.4 GHz Bluetooth
RFID Standards ISO14443 Type A & B / ISO15693
Reading Distance 13.56 MHz & 125 kHz: Up to 2.3" / 60 mm, depending on environment and transponder
Bluetooth Reading Distance Up to 393.7" / 10 m with Bluetooth Smartphone
Communications Wiegand / OSDP v2.2 via RS-485
Secure Communication Up to 128-bit SCP Secure Communication
Data Protection AES128 / EAL6+ Certified Crypto Chip
QR Code Scanner Supported
QR Code Scanning Pattern Area Image, 648 × 488 Pixel Array
QR Code Scan Angle Horizontal: 66° / Vertical: 50°
QR Code Print Contrast 25% Minimum Reflectance Difference
Rotation / Pitch / Skew 360° / ±40° / ±60°
Visual Indicator RGB LEDs, Configurable by Armatura Connect Mobile App
Audio Indicator Internal Buzzer with Adjustable Intensity
Dimension 3.54" W × 4.24" H × 0.93" D (89.8 × 107.8 × 23.6 mm)
Power Supply 9 VDC to 24 VDC
Operating Temperature -22°F to 158°F / -30°C to 70°C

QR Code Scanning Performance

Parameter Specification
Code128 Narrow Width 6.0 mil / 9.0 mil / 15.0 mil / 20.0 mil
QR Code Narrow Width 6.0 mil / 9.0 mil / 15.0 mil / 20.0 mil
Depth of Field - Code128 2.0"–3.1" / 2.0"–4.7" / 2.3"–7.7" / 2.3"–9.8"
Depth of Field - QR Code 2.0"–2.3" / 2.0"–3.5" / 2.0"–6.3" / 2.3"–7.9"
Print Contrast 25% Minimum Reflectance Difference
Rotation 360°
Pitch ±40°
Skew ±60°

Design & Installation

  • Compact reader design for professional access control installations.
  • Suitable for outdoor and indoor access control applications.
  • Designed for demanding all-weather environments.
  • Compact dimensions of 89.8 × 107.8 × 23.6 mm.
  • RGB LED indicators provide clear visual feedback.
  • Adjustable internal buzzer provides audible authentication feedback.

Applications

  • Corporate Offices
  • Commercial Buildings
  • Factories & Industrial Facilities
  • Warehouses
  • Educational Institutions
  • Government Buildings
  • Banks & Financial Institutions
  • Hotels & Hospitality Facilities
  • Residential Buildings
  • Parking Access Control
  • Outdoor Gates
  • Secure Entry Points
  • Multi-Factor Access Control Systems

Why Choose ZKTeco EP20CQ[DF]?

  • Multi-tech reader supporting RFID, Bluetooth and QR credentials.
  • Supports both 125 kHz and 13.56 MHz RFID technologies.
  • Supports ISO14443 Type A/B and ISO15693 standards.
  • Integrated QR code scanning for digital and printed credentials.
  • OSDP v2.2 and Wiegand communication support.
  • AES128 secured communication improves data protection.
  • EAL6+ certified crypto chip provides secure data storage.
  • Bluetooth smartphone reading distance of up to 10 metres.
  • Compact design suitable for professional access control installations.
  • Wide operating temperature range from -30°C to 70°C.
