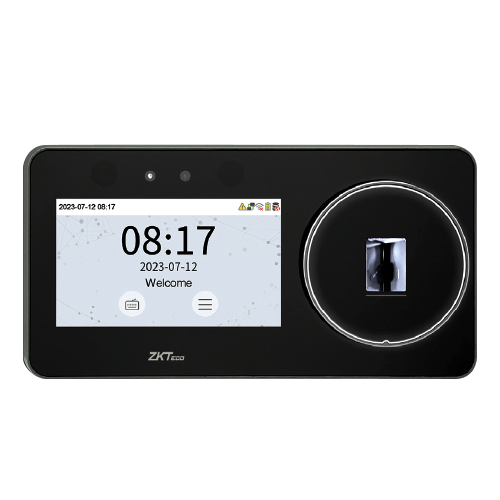

ZKTeco FaceDepot-4A+4G Face Recognition Terminal

Rs. 38,414.00

~~Rs. 46,097.00~~ Rs. 38,414.00

Sale Sold out

Product Details

FaceDepot 4A +4G Hybrid Biometric Time & Attendance Terminal

The FaceDepot 4A is a Linux-based hybrid biometric time and attendance terminal featuring ZKTeco Visible Light Facial Recognition technology. It uses deep learning algorithms to perform facial recognition from 0.3 to 2 meters, including dimly lit environments without supplemental lighting.

The terminal combines visible light facial recognition with fingerprint, card and password authentication, providing flexible multi-modal verification. It also incorporates enhanced pose angle tolerance and anti-spoofing technology to help protect against printed photos, video attacks and 3D mask attacks.

With TCP/IP connectivity and optional Wi-Fi, 4G, PoE and backup battery functions, FaceDepot 4A provides a versatile solution for modern access control and time attendance applications.

Key Features

Visible Light Facial Recognition technology.
Supports identification of individuals wearing masks.
Visible Light Facial Recognition in dimly lit environments without supplemental light.
Facial recognition distance from 0.3 to 2 meters.
Enhanced pose angle tolerance for convenient face verification.
Anti-spoofing algorithm against laser, color and black-and-white photo attacks.
Protection against video attacks and 3D mask attacks.
Multiple verification methods: Face, Fingerprint, Card and Password.
In-glass fingerprint sensor.
Optional 125 kHz ID card, HID Prox and 13.56 MHz IC card modules.
Optional dual-frequency ID & IC & DESFire EV1/EV2 multi-tech card module.
TCP/IP communication.
Optional Wi-Fi and 4G connectivity.
Optional PoE and backup battery.
Wiegand input/output and RS485 communication.
Advanced access control interfaces for electric lock, door sensor, exit button and alarm output.

Product Advantages

Advanced Visible Light Facial Recognition

FaceDepot 4A uses visible light facial recognition with deep learning technology and supports recognition at distances from 0.3 to 2 meters.

Multi-Biometric Authentication

Users can be authenticated through facial recognition, fingerprint, card or password, providing flexible verification options for different applications.

Enhanced Anti-Spoofing

The facial recognition system incorporates anti-spoofing algorithms designed to defend against printed images, videos and 3D mask attacks.

Flexible Connectivity

Standard TCP/IP communication is complemented by optional Wi-Fi, 4G and PoE functions for flexible deployment and system integration.

Technical Specifications

Specification	Details
Model	FaceDepot 4A
Product Type	Hybrid Biometric Time & Attendance Terminal
Operating System	Linux
Display	4.3-inch TFT Color Touch LED Screen, 480 × 800
Camera	Binocular Camera @ 2MP WDR
CPU	Quad Core @ 1.2GHz
Memory	1GB RAM / 8GB ROM
Speaker	8 ohm @ 1W
Supplement Light	No
Fingerprint Sensor	In-Glass Fingerprint Sensor
Authentication Methods	Fingerprint / Face / Card / Password (Virtual Keypad)
Biometric Algorithms	ZKFace V6.0 / ZKFingerprint V10.0
Face Template Capacity	10,000 (1:N) Standard
Fingerprint Template Capacity	10,000 (1:N) Standard
Card Capacity	10,000 (1:N) Optional
User Capacity	10,000 (1:N) Standard
Card Type	ID Card @ 125 kHz Optional HID Prox @ 125 kHz Optional IC Card @ 13.56 MHz Optional
Optional Multi-Tech Card Module	ID & IC & DESFire EV1/EV2 125 kHz & 13.56 MHz Dual Frequency
Communication	TCP/IP ×1 Wi-Fi @ 2.4 GHz / 5 GHz Optional Wiegand Input & Output ×1 ZKTeco RS485 ×1 USB Type-A, USB Drive Only ×1
Access Control Interfaces	Auxiliary Input ×1 Electric Lock ×1 Door Sensor ×1 Exit Button ×1 Alarm Output ×1
Optional Functions	Wi-Fi / 4G / Backup Battery / PoE
PoE	IEEE 802.3af
Power Supply	DC 12V 3A
Dimension	193.00 × 100.00 × 32.40 mm (L × W × H)
Net Weight	0.402 kg
Gross Weight	0.447 kg
Operating Temperature	0°C to 45°C
Operating Humidity	20% to 80% RH (Non-condensing)
Certifications	ISO14001, ISO9001, CE, FCC, RoHS
Supported Software	easy TimePro / ZKBio CVSecurity (T&A Module)

Main Features

Visible Light Facial Recognition.
0.3 to 2 meter facial recognition distance.
Masked individual identification support.
2MP WDR binocular camera.
In-glass fingerprint sensor.
10,000 face templates.
10,000 fingerprint templates.
10,000 user capacity.
Optional 10,000 card capacity.
Face, fingerprint, card and password verification.
ZKFace V6.0 and ZKFingerprint V10.0 algorithms.
Anti-spoofing protection against photo, video and 3D mask attacks.
TCP/IP communication.
Optional Wi-Fi and 4G.
Optional PoE and backup battery.
Wiegand input/output.
RS485 communication.
HTTPs / SSH backend access.

Access Control Functions

Electric lock interface.
Door sensor interface.
Exit button interface.
Alarm output.
Auxiliary input.
12V output.
Wiegand input/output.
RS485 communication.
Tamper switch alarm.
Multiple verification methods.

Applications

Office Buildings
Corporate Offices
Factories and Industrial Facilities
Educational Institutions
Government Buildings
Commercial Buildings
Warehouses
Restricted Access Areas
Time & Attendance Systems
Biometric Access Control Systems

Why Choose FaceDepot 4A?

Advanced Visible Light Facial Recognition technology.
Supports facial recognition in dimly lit environments without supplemental lighting.
Facial recognition distance of 0.3 to 2 meters.
Supports multiple biometric verification methods.
Large 10,000 face and fingerprint template capacity.
Enhanced anti-spoofing protection.
Flexible card technology options.
Optional Wi-Fi, 4G, PoE and backup battery connectivity and power features.
Advanced access control interfaces for integration with door hardware.
Compact Linux-based design suitable for modern access control and attendance deployments.

Product Highlights

Model: FaceDepot 4A
Authentication: Face / Fingerprint / Card / Password
Face Capacity: 10,000
Fingerprint Capacity: 10,000
User Capacity: 10,000
Card Capacity: 10,000 Optional
Face Recognition: Visible Light
Camera: 2MP WDR Binocular Camera
Communication: TCP/IP, Optional Wi-Fi / 4G
Optional PoE: IEEE 802.3af
Operating System: Linux
Power: DC 12V 3A
Operating Temperature: 0°C to 45°C
