ZKTeco FBL200 Flap Barrier Turnstile
ZKTeco FBL200 Flap Barrier Turnstile
Couldn't load pickup availability
Product Details

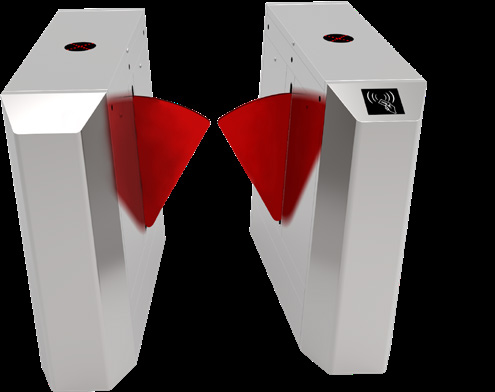

FBL200 Single Lane Flap Barrier Turnstile
The ZKTeco FBL200 is a single-lane flap barrier turnstile designed as an elegant and cost-effective entrance control solution for high-traffic environments. It provides smooth and silent operation while consuming very little power. The durable SUS304 stainless steel construction provides long-lasting performance in demanding access control applications.
The FBL200 barriers normally remain in a locked position to prevent unauthorized access. When the integrated access control system positively verifies a valid user's RFID card or fingerprint, the barriers automatically retract upward to allow passage.
For emergency situations, the barriers automatically retract upward to provide a fast and unobstructed exit. A battery can also be installed to automatically retract the barriers during a power outage, providing an additional safety function.
Key Features
- Single-lane flap barrier turnstile designed for high-traffic applications.
- Smooth and silent barrier operation.
- Low power consumption.
- Durable SUS304 stainless steel cabinet.
- Acrylic retracting barriers.
- Barriers remain locked until valid access authentication is received.
- Compatible with RFID and fingerprint authentication.
- Automatic upward barrier retraction after successful authentication.
- Automatic barrier retraction during emergencies.
- Optional battery supports automatic barrier retraction during power outages.
- LED status indicator.
- Compact and elegant design.
Product Advantages
With a maximum throughput of 30 people per minute, the FBL200 is designed to efficiently manage busy pedestrian entrance and exit points.
The cabinet and lid are manufactured from SUS304 stainless steel, providing a durable structure for long-term use.
The flap barriers automatically retract during emergencies. An optional battery can provide automatic retraction during power outages.
The FBL200 features a 0.8-second opening time and opening noise of ≤30dB for smooth and quiet pedestrian movement.
Technical Specifications
| Specification | Details |
|---|---|
| Model | FBL200 |
| Product Type | Single Lane Flap Barrier Turnstile |
| Barrier Material | Acrylic |
| Barrier Movement | Retracting |
| Cabinet Material | SUS304 Stainless Steel |
| Lid Material | SUS304 Stainless Steel |
| Dimension (L × W × H) | 1200 × 300 × 980 mm |
| Lane Width | 570 mm |
| Maximum Speed of Throughput | 30 people per minute |
| Opening Time | 0.8s |
| Opening Noise | ≤30dB |
| Emergency Mode | Supported |
| LED Indicator | Supported |
| Power Requirements | AC100 ~ 120V / 200 ~ 240V, 50/60Hz |
| Security Level | Medium |
| Working Environment | Indoor / Outdoor (if sheltered) |
| Working Humidity | 5% ~ 80% |
| Working Temperature | -28°C ~ 60°C |
Main Features
- Single-lane flap barrier design.
- Acrylic retracting barrier.
- SUS304 stainless steel cabinet.
- SUS304 stainless steel lid.
- 570mm lane width.
- 30 people per minute maximum throughput.
- 0.8-second opening time.
- ≤30dB opening noise.
- LED indicator support.
- Emergency mode support.
- Optional battery for power outage safety.
- Medium security level.
Safety & Security
- Barriers remain locked until valid authentication is received.
- Supports RFID and fingerprint-based access authentication.
- Barriers automatically retract upward during emergencies.
- Optional battery enables automatic barrier retraction during power outages.
- Retracting barrier mechanism provides controlled pedestrian passage.
Applications
- Office Buildings
- Corporate Offices
- Factories and Industrial Facilities
- Schools and Educational Institutions
- Commercial Buildings
- Transportation Facilities
- Public Facilities
- High-Traffic Entrance Areas
Why Choose FBL200?
- Cost-effective single-lane flap barrier solution.
- Designed specifically for high-traffic pedestrian access control.
- Durable SUS304 stainless steel construction.
- Fast 0.8-second opening time.
- Supports throughput of up to 30 people per minute.
- Quiet operation with opening noise of ≤30dB.
- Automatic emergency barrier retraction.
- Optional battery support for power outage safety.
- Compact and elegant design suitable for modern entrance areas.
Product Highlights
- Model: FBL200
- Barrier Type: Acrylic Flap Barrier
- Movement: Retracting
- Cabinet: SUS304 Stainless Steel
- Lane Width: 570mm
- Throughput: Up to 30 people/minute
- Opening Time: 0.8s
- Opening Noise: ≤30dB
- Security Level: Medium
- Emergency Mode: Supported
- Environment: Indoor / Outdoor (if sheltered)
