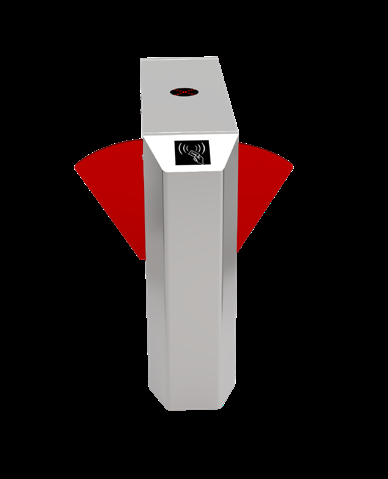

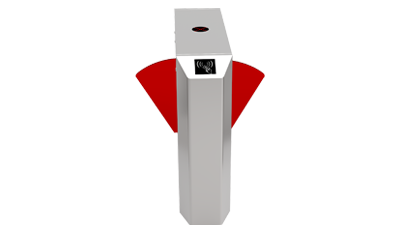

ZKTeco FBL220 Flap Barrier Turnstile
ZKTeco FBL220 Flap Barrier Turnstile
Couldn't load pickup availability
Product Details
ZKTeco FBL220 – Dual-Lane Flap Barrier Turnstile
The ZKTeco FBL220 is a dual-lane flap barrier turnstile designed as an additional lane solution for high-traffic entrance control systems. It is intended to work together with the FBL200 series to create multiple access lanes while providing smooth, silent, and efficient pedestrian passage.
Constructed with durable SUS304 stainless steel, the FBL220 combines a compact and elegant design with reliable access control performance. Under normal conditions, the barriers remain locked to prevent unauthorized access. Once an integrated RFID card or fingerprint reader verifies a valid user, the barriers retract upward automatically to allow passage.
The FBL220 is designed for convenient operation with low power consumption and an opening time of approximately 0.8 seconds. It also supports emergency mode and LED status indication, making it suitable for controlled entrances in high-traffic environments.
Key Features
The FBL220 is an additional-lane flap barrier turnstile designed to work together with the FBL200 series for creating multiple pedestrian access lanes.
The cabinet and lid are made from SUS304 stainless steel, providing a strong and durable structure for long-term entrance control applications.
Following successful authentication, the acrylic barriers retract upward automatically to provide access to the secured side.
The FBL220 can work with RFID and/or fingerprint access control readers for authorized user verification.
The flap barrier is designed for smooth operation with an opening time of approximately 0.8 seconds and an opening noise level of no more than 30 dB.
The FBL220 supports a maximum throughput of up to 30 people per minute, making it suitable for busy entrances and controlled pedestrian areas.
The FBL220 supports an emergency mode to provide appropriate passage during emergency situations.
Integrated LED indicators provide visual status information for users and access control personnel.
With dimensions of 1200 × 300 × 980 mm, the FBL220 provides a compact solution for adding controlled pedestrian lanes where space efficiency is important.
Authentication Options
- RFID Card Authentication
- Fingerprint Authentication
- RFID and Fingerprint Combination
Safety & Security Features
- Normally locked barrier position
- Automatic barrier retraction after valid authentication
- Emergency mode support
- LED status indication
- Controlled pedestrian access
- Medium security level
Applications
- Corporate Offices
- Commercial Buildings
- Factories and Industrial Facilities
- Educational Institutions
- Government Buildings
- Transportation Facilities
- High-Traffic Building Entrances
- Employee Access Points
- Reception and Lobby Areas
- Indoor Locations
- Sheltered Outdoor Installations
Specifications
| Parameter | Specification |
|---|---|
| Model | FBL220 |
| Product Type | Dual-Lane Flap Barrier Turnstile / Additional Lane Series |
| Barrier Material | Acrylic |
| Barrier Movement | Retracting |
| Cabinet Material | SUS304 Stainless Steel |
| Lid Material | SUS304 Stainless Steel |
| Lane Width | 570 mm |
| Dimensions (L × W × H) | 1200 × 300 × 980 mm |
| Maximum Throughput | 30 People per Minute |
| Opening Time | 0.8 Seconds |
| Opening Noise | ≤30 dB |
| Emergency Mode | Supported |
| LED Indicator | Supported |
| Power Requirements | AC 100–120V / 200–240V, 50 / 60Hz |
| Security Level | Medium |
| Working Environment | Indoor / Outdoor if Sheltered |
| Working Humidity | 5% to 80% RH, Non-condensing |
| Working Temperature | -28°C to 60°C |
Frequently Asked Questions
The FBL220 is a dual-lane flap barrier turnstile designed as an additional lane for high-traffic entrance control systems. It is designed to work together with the FBL200 series to create multiple access lanes.
The barriers normally remain locked. When an integrated RFID or fingerprint reader successfully verifies an authorized user, the acrylic barriers retract upward automatically to allow passage.
The FBL220 can be configured to work with RFID card and/or fingerprint access control readers.
The specified opening time is approximately 0.8 seconds, with a maximum throughput of up to 30 people per minute.
No. The specified opening noise level is no more than 30 dB, allowing the turnstile to operate quietly in entrance and reception areas.
Yes. The FBL220 can be installed outdoors when used in a sheltered environment. Its specified working temperature is -28°C to 60°C with 5% to 80% non-condensing relative humidity.
The FBL220 provides a 570 mm pedestrian lane width.
Yes. The FBL220 supports an emergency mode for controlled access during emergency situations.
