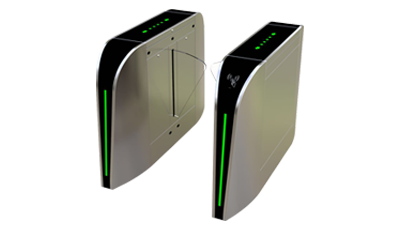

ZKTeco FBL300 Single Lane Flap Barrier Turnstile
The ZKTeco FBL300 is a single lane flap barrier turnstile designed to provide efficient and controlled pedestrian access for high-traffic environments. Its elegant design, smooth operation and low power consumption make it a practical entrance control solution for offices, commercial buildings, institutions and other facilities.
Constructed from durable SUS304 stainless steel, the FBL300 provides reliable long-term operation while maintaining a professional appearance. Its retracting acrylic barriers and integrated infrared sensors provide controlled passage detection and enhanced access management.
With a technical throughput of up to 35 people per minute, the FBL300 is suitable for locations requiring efficient pedestrian movement. The turnstile also supports emergency mode and LED status indication for improved usability and safety.
Key Features
Provides controlled pedestrian access through a compact single-lane configuration with retracting flap barriers.
The SUS304 stainless steel cabinet provides excellent durability and a professional appearance for demanding access control installations.
Acrylic barriers retract smoothly to provide convenient passage after successful authorization.
Supports a maximum throughput of up to 35 people per minute, making it suitable for high-traffic pedestrian entrances.
Equipped with 5 pairs of infrared sensors for passage detection and access control operation.
Emergency mode is supported to provide appropriate passage operation during emergency situations.
Integrated LED indicators provide clear visual information about the turnstile's operating and access status.
The FBL300 is designed for efficient operation with low power consumption, helping reduce operating costs.
Product Advantages
- Elegant and compact single-lane flap barrier design.
- Suitable for high-traffic pedestrian access control.
- Durable SUS304 stainless steel cabinet.
- Smooth retracting acrylic barrier movement.
- 5 pairs of infrared sensors for passage detection.
- Maximum throughput of up to 35 people per minute.
- Supports emergency mode.
- Integrated LED status indicator.
- Suitable for indoor and sheltered outdoor installations.
- Designed for reliable and low-power operation.
Safety & Security Features
- 5 pairs of infrared sensors.
- Retracting flap barrier mechanism.
- Emergency mode support.
- LED status indicator.
- Medium security level.
- Controlled single-lane pedestrian access.
Design & Construction
- SUS304 stainless steel cabinet.
- Acrylic barrier construction.
- Steel lid.
- Retracting barrier movement.
- Single lane configuration.
- 570 mm standard lane width.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Name | FBL300 |
| Product Type | Single Lane Flap Barrier Turnstile |
| Barrier Material | Acrylic |
| Barrier Movement | Retracting |
| Cabinet Material | SUS304 Stainless Steel |
| Lid Material | Steel |
| Dimension (L × W × H) | 1400 × 300 × 980 mm |
| Lane Type | Single Lane |
| Lane Width | 570 mm |
| Emergency Mode | Supported |
| Infrared Sensors | 5 Pairs |
| LED Indicator | Supported |
| Maximum Throughput | Up to 35 People per Minute |
| Power Requirements | AC 100–120V / 200–240V, 50/60Hz |
| Security Level | Medium |
| Working Environment | Indoor / Outdoor if Sheltered |
| Working Humidity | 5% – 95% RH, Non-condensing |
| Working Temperature | -20°C to 70°C |
Applications
- Corporate Offices
- Commercial Buildings
- Educational Institutions
- Factories and Industrial Facilities
- Banks and Financial Institutions
- Hotels and Hospitality Facilities
- Government Buildings
- Transportation Facilities
- High-Traffic Building Entrances
- Indoor and Sheltered Outdoor Locations
Why Choose ZKTeco FBL300?
- Cost-effective solution for controlled pedestrian access.
- Elegant design suitable for modern building entrances.
- Durable SUS304 stainless steel construction.
- High throughput of up to 35 people per minute.
- 5 pairs of infrared sensors for passage detection.
- Acrylic retracting barriers provide smooth pedestrian movement.
- Emergency mode improves operational safety.
- Suitable for indoor and sheltered outdoor environments.
- Compact single-lane configuration saves installation space.
Applications & Installation Environment
The FBL300 is suitable for indoor and sheltered outdoor environments where controlled and efficient pedestrian access is required. Its compact single-lane design makes it suitable for entrances with limited installation space while its stainless steel construction provides long-term durability.
- Office entrances
- Commercial buildings
- Factories
- Educational institutions
- Financial institutions
- Hotels
- Government facilities
- Secure access points
