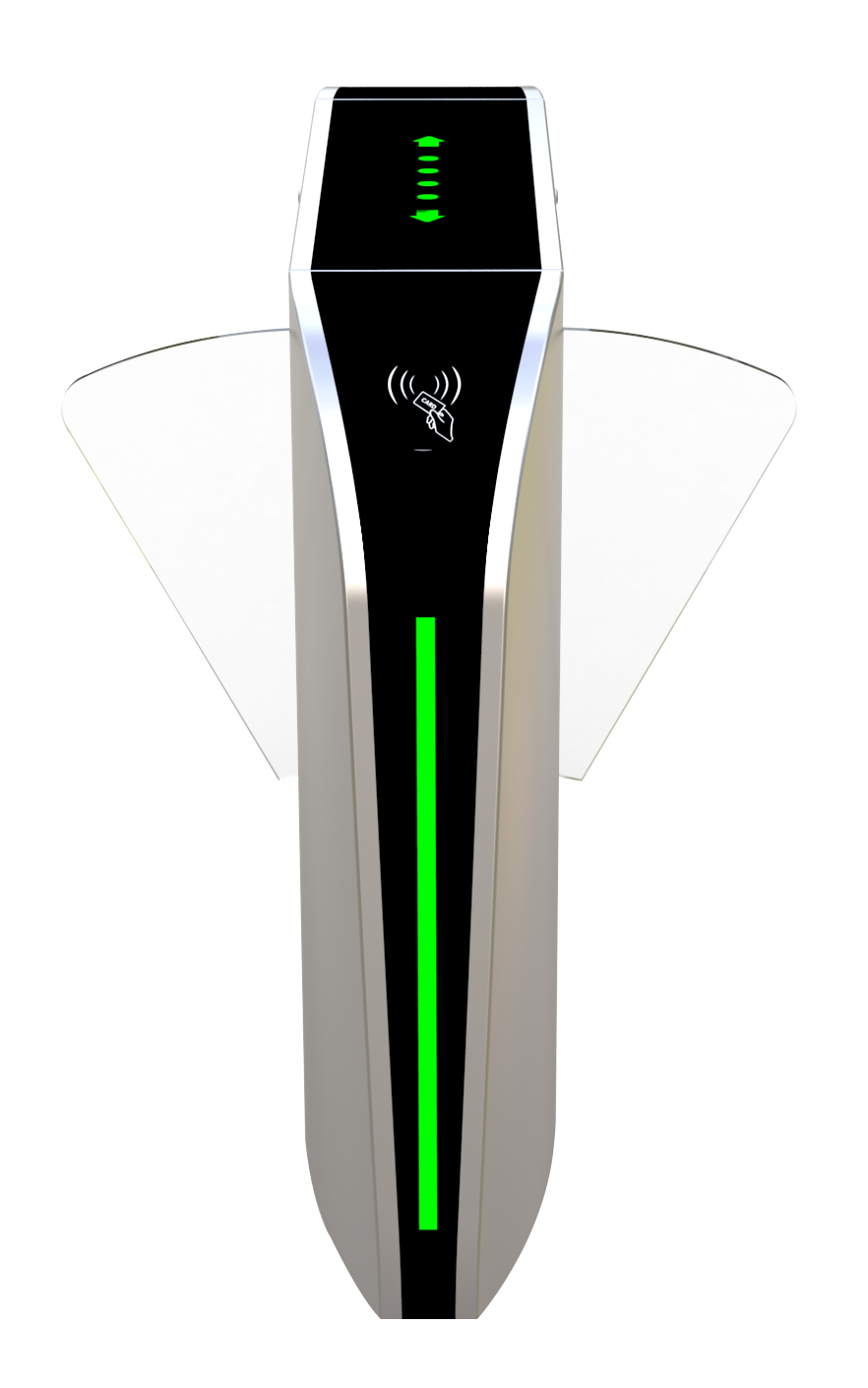

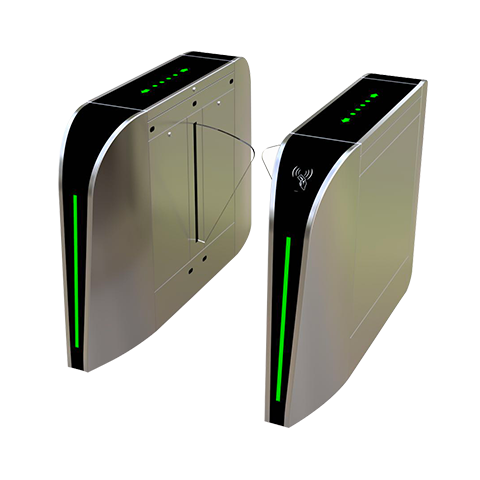

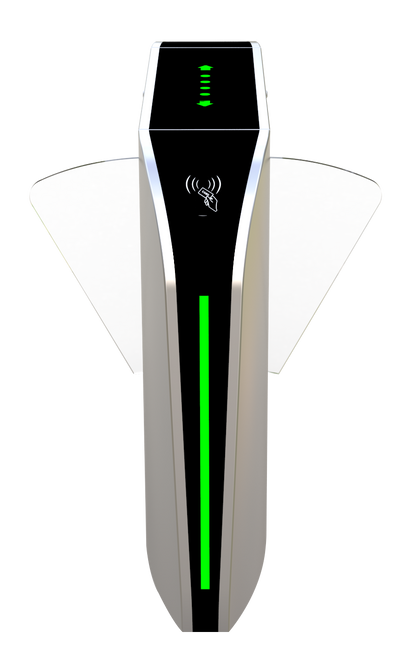

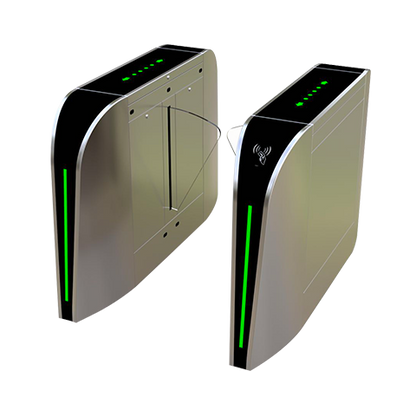

FBL320 – Dual-Lane Flap Barrier Turnstile
The ZKTeco FBL320 is a dual-lane flap barrier turnstile designed as an additional lane unit for high-traffic entrance control systems. It is designed to work together with the FBL300 series to create multiple access lanes, providing an elegant, durable, and cost-effective solution for modern pedestrian access control.
The FBL320 features smooth and silent retracting barrier movement with low power consumption. Its SUS304 stainless steel cabinet provides excellent durability, while the compact design offers secure and convenient pedestrian passage in busy environments.
The barriers are normally held in a locked position to prevent unauthorized access. After a connected RFID and/or fingerprint reader positively verifies a user's credentials, the acrylic barriers retract automatically, allowing authorized users to pass through the secured lane.
Key Features
Designed as an additional lane unit that can work together with the FBL300 series to build multiple pedestrian access lanes.
The acrylic barriers retract automatically after successful authentication, providing smooth and controlled pedestrian passage.
Supports a maximum throughput of up to 35 people per minute, making it suitable for high-traffic entrance areas.
The cabinet is constructed from SUS304 stainless steel for long-term durability and reliable operation.
Designed for smooth and quiet barrier movement while maintaining efficient pedestrian flow.
The FBL320 is designed to draw very little power, helping improve energy efficiency during continuous operation.
Five pairs of infrared sensors help detect users and manage pedestrian passage through the access lane.
Integrated LED indicators provide clear visual feedback to users regarding access and passage status.
The normally locked barrier configuration helps prevent unauthorized access until a connected reader verifies valid user credentials.
Authentication & Access Control
- RFID Card Authentication through compatible reader
- Fingerprint Authentication through compatible reader
- Multiple Access Control Reader Options
- Normally Locked Barrier Configuration
- Automatic Barrier Retraction after Valid Authentication
Safety & Security Features
- Normally locked barriers
- Five pairs of infrared sensors
- Automatic retracting barrier mechanism
- LED access status indication
- Controlled pedestrian passage
- Medium security level
Applications
- Corporate Offices
- Commercial Buildings
- Factories and Industrial Facilities
- Educational Institutions
- Government Buildings
- Transportation Facilities
- Financial Institutions
- High-Traffic Building Entrances
- Indoor and Sheltered Outdoor Locations
Specifications
| Parameter | Specification |
|---|---|
| Model | FBL320 |
| Product Type | Dual-Lane Flap Barrier Turnstile |
| Series Compatibility | Designed to work with FBL300 Series for Multiple Lane Configurations |
| Barrier Material | Acrylic |
| Barrier Movement | Retracting |
| Cabinet Material | SUS304 Stainless Steel |
| Lid Material | Steel |
| Dimensions (L × W × H) | 1400 × 300 × 980 mm |
| Infrared Sensors | 5 Pairs |
| LED Indicator | Supported |
| Lane Width | 570 mm |
| Maximum Throughput | 35 People per Minute |
| Power Requirements | AC 100–120V / 200–240V, 50/60Hz |
| Security Level | Medium |
| Working Environment | Indoor / Outdoor if Sheltered |
| Working Humidity | 5% – 95% RH, Non-condensing |
| Working Temperature | -20°C to 70°C |
Frequently Asked Questions
The FBL320 is a dual-lane flap barrier turnstile with automatically retracting acrylic barriers designed for secure and efficient pedestrian access control.
Yes. The FBL320 is designed as an additional lane unit and can work together with the FBL300 series to create multiple pedestrian access lanes.
The barriers remain locked by default. When a compatible RFID or fingerprint reader positively verifies valid user credentials, the barriers retract automatically to allow passage.
The FBL320 supports a maximum throughput of up to 35 people per minute, depending on the authentication method and operating conditions.
Yes. The FBL320 can be installed outdoors when used in a sheltered environment. It supports a working temperature range of -20°C to 70°C and working humidity of 5% to 95% non-condensing.
The FBL320 is equipped with five pairs of infrared sensors for passage detection and access control operation.
The FBL320 provides a 570 mm standard lane width.
The cabinet is made from durable SUS304 stainless steel, while the retracting barriers are made from acrylic.
