ZKTeco FBL500 Flap Barrier Turnstile
ZKTeco FBL500 Flap Barrier Turnstile
Couldn't load pickup availability
Product Details

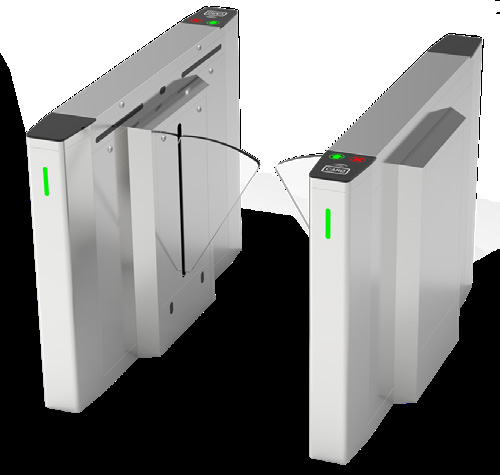

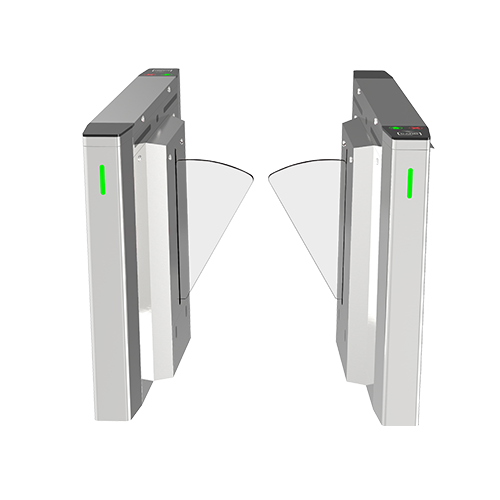

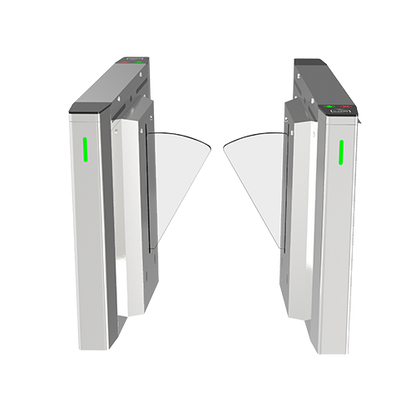

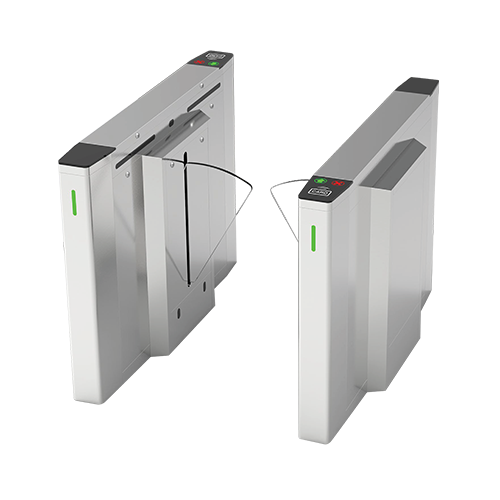

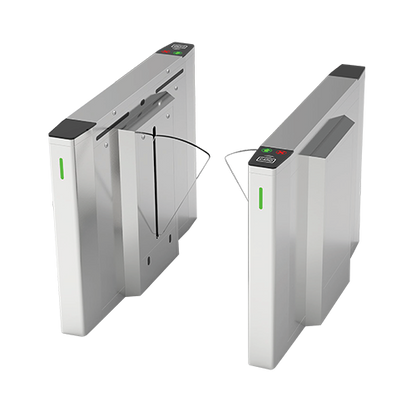

FBL500 Series – Single Lane Flap Barrier Turnstile
The ZKTeco FBL500 Series is a single-lane flap barrier turnstile designed to provide reliable, secure and convenient pedestrian access control. Built with durable SUS304 stainless steel casework and high-quality electrical components, the FBL500 combines long-lasting performance with smooth and efficient operation.
The flap barriers remain in a secure position to control access and automatically retract when authorized access is granted. The system also supports emergency operation, with the barriers retracting automatically during emergencies and during power outages when the optional battery is installed.
Key Features
- Single-lane flap barrier turnstile design.
- SUS304 stainless steel casework for long-lasting durability.
- High-quality electrical components for reliable operation.
- Retracting acrylic barriers.
- Automatic barrier retraction during emergencies.
- Automatic barrier retraction during power outages when a battery is installed.
- Integrated LED status indicator.
- Factory-tested turnstile and associated access control readers.
- Plug-and-play installation concept.
- Low-maintenance and cost-effective access control solution.
Reliability
The FBL500 uses SUS304 stainless steel casework, providing a durable structure suitable for demanding access control environments.
High-quality electrical components are used to provide dependable operation and long-term system performance.
With an MCBF of 2 million cycles, the FBL500 is designed for reliable operation in busy pedestrian access environments.
Safety Features
- Automatic barrier retraction during emergencies.
- Automatic barrier retraction during power outage when the battery is installed.
- Retracting barrier movement for controlled pedestrian access.
- LED indicator for clear operational status.
Built-in Reader Integration
The FBL500 Series and associated access control readers are factory-tested before shipping to help ensure reliable installation and operation.
The integrated access control approach simplifies installation and helps reduce installation time, maintenance requirements and overall ownership costs.
Technical Specifications
| Specification | Details |
|---|---|
| Series | FBL500 Series |
| Model | FBL500 |
| Product Type | Single Lane Flap Barrier Turnstile |
| Barrier Material | Acrylic |
| Barrier Movement | Retracting |
| Cabinet Material | SUS304 Stainless Steel |
| Lid Material | SUS304 Stainless Steel |
| Lane Width | 600 mm |
| Dimensions (L × W × H) | 1360 × 280 × 980 mm |
| Emergency Mode | Supported |
| LED Indicator | Supported |
| MCBF | 2 Million Cycles |
| Maximum Speed of Throughput | 30 People per Minute |
| Opening Time | 0.8 Seconds |
| Opening Noise | ≤30 dB |
| Power Requirements | AC100 ~ 120V / 200 ~ 240V, 50/60Hz |
| Security Level | Medium |
| Working Environment | Indoor / Outdoor (if sheltered) |
| Working Humidity | 5% ~ 90% (Non-condensing) |
| Working Temperature | -20°C ~ 70°C |
Performance & Operation
- Maximum throughput of up to 30 people per minute.
- Fast opening time of approximately 0.8 seconds.
- Low operating noise of ≤30 dB.
- 600 mm standard passage lane width.
- Retracting acrylic barrier movement.
- Designed for smooth and efficient pedestrian access.
Emergency Operation
The FBL500 supports emergency mode, allowing the barriers to retract automatically during an emergency situation.
During a power outage, the barriers can retract automatically when the optional battery is installed, helping provide a safe exit path.
Applications
- Corporate Offices
- Commercial Buildings
- Business Centres
- Educational Institutions
- Factories and Industrial Facilities
- Government Buildings
- Hotels and Hospitality Facilities
- Transportation Facilities
- Indoor Access Control Areas
- Sheltered Outdoor Entrances
Why Choose FBL500?
- Durable SUS304 stainless steel construction.
- Reliable retracting flap barrier mechanism.
- High MCBF of 2 million cycles.
- Fast 0.8-second opening time.
- Throughput of up to 30 people per minute.
- Automatic emergency barrier retraction.
- Automatic retraction during power outage with battery installed.
Technical Specifications
