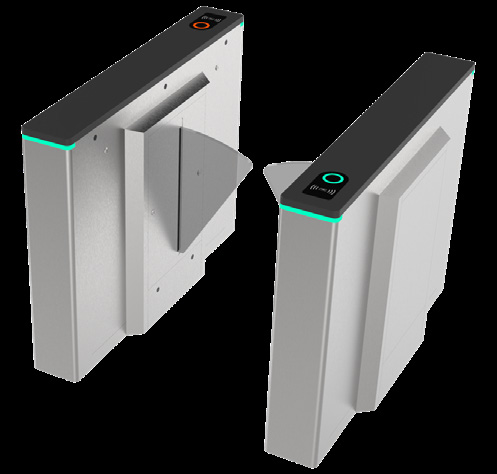

ZKTeco FBL700 Single Lane Flap Barrier Turnstile
The ZKTeco FBL700 is a premium single lane flap barrier turnstile designed to provide secure, efficient and reliable pedestrian access control in high-traffic environments. Its elegant design, smooth operation and durable stainless steel construction make it suitable for offices, commercial buildings, transportation facilities and other controlled-entry locations.
The FBL700 uses SUS304 stainless steel casework and retracting acrylic barriers for long-lasting performance. The barriers remain locked under normal conditions and automatically retract after a valid credential is authenticated through the integrated access control reader.
Designed for convenient integration, the FBL700 can be supplied with integrated RFID card or fingerprint access control readers. Its factory-tested plug-and-play design helps reduce installation time while providing a reliable access control solution with low maintenance requirements.
Key Features
- Single lane flap barrier turnstile for secure pedestrian access.
- Elegant and compact entrance control design.
- SUS304 stainless steel cabinet for enhanced durability.
- Acrylic retracting barriers.
- Supports integrated RFID card or fingerprint readers.
- Factory-tested access control reader integration.
- Automatic barrier retraction during emergencies.
- Automatic barrier retraction during power outages when battery backup is installed.
- Smooth finish with no exposed screws.
- LCD display on the control board for easy operation.
- Low operating noise of ≤30 dB.
- Fast 0.8-second opening time.
- High MCBF of 5 million cycles.
- Throughput of up to 30 people per minute.
- Indoor and outdoor installation capability.
Product Advantages
- Combines pedestrian security with a modern and elegant flap barrier design.
- Integrated reader options simplify installation and reduce additional installation work.
- Automatic emergency retraction improves pedestrian safety.
- Battery-supported automatic retraction can provide safe passage during power outages.
- SUS304 stainless steel construction provides excellent durability for frequent-use environments.
- High 5-million-cycle MCBF supports long-term continuous operation.
- Fast 0.8-second opening time helps maintain smooth pedestrian flow.
- Quiet barrier movement with an opening noise level of ≤30 dB.
- Compact 300 mm cabinet width makes efficient use of entrance space.
Flap Barrier Access Control
Secure Retracting Barriers
The FBL700 barriers are normally maintained in a locked position to prevent unauthorized access. After a valid credential is recognized by the integrated access control reader, the acrylic barriers retract automatically to allow authorized passage.
RFID & Fingerprint Integration
The FBL700 series supports integrated access control configurations using RFID card or fingerprint authentication. Factory integration and testing provide a convenient plug-and-play approach for access-controlled entrances.
High-Speed Pedestrian Flow
With an opening time of approximately 0.8 seconds and a maximum throughput of up to 30 people per minute, the FBL700 is designed for locations requiring efficient pedestrian movement.
Safety Features
Emergency Barrier Retraction
The barriers automatically retract during an emergency, providing a clear passage route for users and supporting safe evacuation procedures.
Power Failure Protection
When a battery backup is installed, the barriers can automatically retract during a power outage, helping maintain safe pedestrian passage when normal power is unavailable.
Smooth & Ergonomic Construction
The FBL700 features a smooth finish with no exposed screws. Its ergonomic design helps users authenticate their credentials quickly and conveniently.
Technical Specifications
| Specification | Details |
|---|---|
| Model Name | FBL700 |
| Product Type | Single Lane Flap Barrier Turnstile |
| Barrier Material | Acrylic |
| Barrier Movement | Retracting |
| Cabinet Material | SUS304 Stainless Steel |
| Dimension (L × W × H) | 1200 × 300 × 980 mm |
| Lane Width | 600 mm |
| Lid Material | SPCC with black baking paint |
| MCBF | 5 million cycles |
| Maximum Throughput | 30 people per minute |
| Opening Noise | ≤30 dB |
| Opening Time | 0.8 seconds |
| Emergency Mode | Supported |
| LED Indicator | Supported |
| Power Requirements | AC100 ~ 120V / 200 ~ 240V, 50/60Hz |
| Security Level | Medium |
| Working Environment | Indoor / Outdoor |
| Working Humidity | 5% ~ 80% |
| Working Temperature | -28°C ~ 60°C |
Built-In Reader Integration
The FBL700 series is designed to simplify access control installation through integrated reader options. Customers can configure the turnstile with their preferred RFID card or fingerprint access control reader. The integrated configuration is factory-tested before shipping, helping provide a reliable plug-and-play entrance control solution.
- Integrated RFID card reader option.
- Integrated fingerprint reader option.
- Factory-tested reader and turnstile integration.
- Reduced installation complexity.
- Convenient credential authentication.
Reliability & Durability
SUS304 Stainless Steel Construction
The FBL700 uses SUS304 stainless steel casework to provide a durable enclosure suitable for frequent pedestrian traffic and demanding access control applications.
5 Million Cycle MCBF
With an MCBF of 5 million cycles, the FBL700 is engineered for long-term operation in high-traffic access control environments.
Low Noise Operation
The flap barrier operates with an opening noise level of ≤30 dB, making it suitable for offices, commercial buildings and other environments where quiet operation is important.
Design & Installation
The FBL700 has dimensions of 1200 × 300 × 980 mm with a 600 mm lane width. Its compact 300 mm cabinet width allows it to be installed efficiently at controlled pedestrian entrances while maintaining a modern appearance.
The unit is designed for indoor and outdoor environments, with a specified working temperature range of -28°C to 60°C and working humidity of 5% to 80%.
Applications
- Office Buildings
- Corporate Entrances
- Commercial Buildings
- Shopping Malls
- Hotels & Hospitality
- Educational Institutions
- Factories & Industrial Facilities
- Warehouses
- Transportation Facilities
- Metro & Railway Stations
- Restricted Access Areas
- High-Traffic Pedestrian Entrances
Why Choose ZKTeco FBL700?
- Premium single lane flap barrier turnstile design.
- Durable SUS304 stainless steel cabinet.
- 600 mm pedestrian lane width.
- Fast 0.8-second opening time.
- Up to 30 people per minute throughput.
- High 5-million-cycle MCBF.
- Quiet ≤30 dB operation.
- Automatic emergency barrier retraction.
- Optional automatic retraction during power failure with battery installed.
- Integrated RFID and fingerprint reader options.
- Factory-tested plug-and-play reader integration.
- Indoor and outdoor installation capability.
- Modern smooth-finish design without exposed screws.
Package Includes
- 1 × ZKTeco FBL700 Single Lane Flap Barrier Turnstile
- Integrated access control reader according to selected configuration
- Installation Accessories
- Product Documentation
