ZKTeco FHT2200DL Full Height Turnstile
ZKTeco FHT2200DL Full Height Turnstile
Couldn't load pickup availability
Product Details

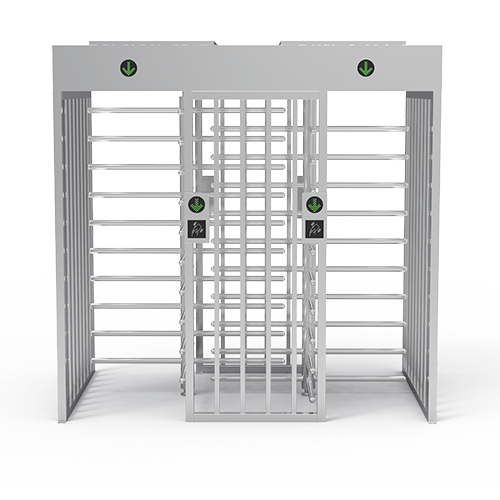

ZKTeco FHT2200DL – Dual-Lane Full Height Security Turnstile
The ZKTeco FHT2200DL is a dual-lane full height security turnstile designed to provide controlled and efficient pedestrian access in high-security and high-throughput environments. With a 90-degree brake rod configuration, its full-height structure forms enclosed passage lanes to provide strong access control and enhanced security.
The FHT2200DL is constructed from durable SUS304 stainless steel and features a full capping design that provides superior waterproof performance. Its personalized reader panel can accommodate card, fingerprint, QR Code, and other compatible access control readers, allowing the turnstile to be integrated into different authentication systems.
An integrated anti-tailgating function helps ensure that each authorized brake movement permits passage for only one person. The FHT2200DL also supports emergency mode, making it suitable for applications where controlled access and emergency evacuation capability are required.
Key Features
The FHT2200DL provides two enclosed full-height passage lanes, making it suitable for locations requiring secure and efficient pedestrian throughput.
The 90-degree rotating brake rod configuration creates a closed lane space and provides controlled pedestrian passage.
The cabinet and barriers are manufactured from SUS304 stainless steel for durability and reliable long-term operation.
The full capping structure provides superior waterproof performance and helps protect the turnstile mechanism from environmental exposure.
The personalized reader panel can accommodate card, fingerprint, QR Code, and other compatible reader devices.
The anti-tailgating function is designed so that one authorized brake movement allows only one person to pass through the lane.
The FHT2200DL supports emergency mode to facilitate safe and controlled passage during emergency situations.
The enclosed full-height construction, rotating barriers, and anti-tailgating function provide a high level of access control security.
Authentication Options
- RFID / Card Authentication
- Fingerprint Authentication
- QR Code Authentication
- Other Compatible Reader Devices
Safety & Security Features
- Full-height enclosed passage lanes
- Anti-tailgating function
- One-person-per-authorized-passage control
- Emergency mode support
- Full capping design
- IPX4 protection
- LED status indication
- High security level
Applications
- Factories and Industrial Facilities
- Warehouses
- Government Buildings
- Transportation Facilities
- Construction Sites
- Power Plants and Utility Facilities
- High-Security Facilities
- Restricted Industrial Areas
- Corporate and Commercial Buildings
- Secure Perimeter Entrances
- Indoor and Outdoor Access Control Areas
Specifications
| Parameter | Specification |
|---|---|
| Model | FHT2200DL |
| Product Type | Dual-Lane Full Height Security Turnstile |
| Brake Rod Angle | 90 Degrees |
| Cabinet Material | SUS304 Stainless Steel |
| Barrier Material | SUS304 Stainless Steel |
| Barrier Movement | Rotating |
| Lane Width | 650 mm |
| Footprint | 1450 × 2200 mm |
| Dimensions (L × W × H) | 1450 × 2200 × 2200 mm |
| Packing Dimensions (L × W × H) | 1550 × 2300 × 2350 mm |
| Ingress Protection | IPX4 |
| LED Indicator | Supported |
| Emergency Mode | Supported |
| Power Requirements | AC 110V / 220V, 50 / 60Hz |
| Security Level | High |
| MCBF | 1 Million Cycles |
| Working Environment | Indoor / Outdoor |
| Working Humidity | 0% to 95% |
Frequently Asked Questions
The FHT2200DL is a dual-lane full height security turnstile with a 90-degree rotating brake rod configuration. It creates two enclosed passage lanes for controlled pedestrian access.
The cabinet and barriers are constructed from SUS304 stainless steel, providing a durable structure for demanding access control environments.
The personalized reader panel can accommodate card, fingerprint, QR Code, and other compatible access control reader devices.
Yes. The FHT2200DL includes an anti-tailgating function designed so that one brake movement permits only one person to pass.
Yes. The FHT2200DL is specified for indoor and outdoor use and has an IPX4 ingress protection rating. Its full capping design also provides superior waterproof performance.
Each passage lane provides a width of 650 mm.
Yes. The FHT2200DL supports an emergency mode for controlled passage during emergency situations.
The FHT2200DL is rated as a high-security full height turnstile, combining enclosed lanes, rotating barriers, and anti-tailgating protection.
