ZKTeco

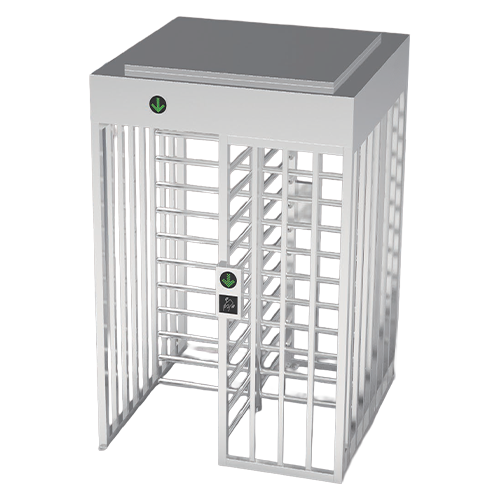

ZKTeco FHT2200L Full Height Turnstile
ZKTeco FHT2200L Full Height Turnstile
Couldn't load pickup availability
Product Details
ZKTeco FHT2200L – Single-Lane Full Height Security Turnstile
The ZKTeco FHT2200L is a single-lane full height security turnstile designed to provide a highly secure and controlled pedestrian passage. With a 90-degree brake rod configuration, the turnstile creates a fully enclosed lane that helps prevent unauthorized entry while maintaining efficient passage for authorized users.
Constructed from SUS304 stainless steel with a full capping design, the FHT2200L offers robust construction and enhanced protection against water exposure. Its personalized reader panel can accommodate various authentication devices, including card, fingerprint, and QR Code readers.
The FHT2200L features anti-tailgating functionality, allowing only one person to pass through with each authorized brake movement. It also supports a fire emergency mode in which the gate can rotate freely when power is disconnected, helping facilitate emergency evacuation.
Key Features
The full height construction creates a closed passage lane that provides enhanced security and helps prevent unauthorized access.
Both the cabinet and barrier are manufactured from SUS304 stainless steel for a strong and durable structure suitable for demanding security applications.
The full capping structure provides superior waterproof performance and helps protect the turnstile mechanism from environmental exposure.
The personalized reader panel can accommodate card, fingerprint, QR Code, and other compatible reader devices.
The anti-tailgating function is designed so that one authorized brake movement permits passage for only one person.
When power is disconnected, the gate can rotate freely to support emergency evacuation and safe passage.
With its enclosed full-height structure, anti-tailgating function, and controlled rotating barrier, the FHT2200L provides a high level of pedestrian access security.
Authentication Options
- RFID Card Authentication
- Fingerprint Authentication
- QR Code Authentication
- Other Compatible Reader Devices
Safety & Security Features
- Full-height enclosed passage
- Anti-tailgating function
- One-person-per-authorized-passage control
- Fire emergency mode
- Free gate rotation when power is off
- Full capping design
- IPX4 protection
LED Indicator
- LED Indicator Supported
Applications
- Factories and Industrial Facilities
- Warehouses
- Construction Sites
- Power Plants and Utility Facilities
- Transportation Facilities
- Restricted Industrial Areas
- Government and High-Security Buildings
- Stadiums and Large Venues
- Secure Perimeter Entrances
- Indoor and Outdoor Access Control Areas
Specifications
| Parameter | Specification |
|---|---|
| Model | FHT2200L |
| Product Type | Single-Lane Full Height Security Turnstile |
| Brake Rod Angle | 90 Degrees |
| Cabinet Material | SUS304 Stainless Steel |
| Barrier Material | SUS304 Stainless Steel |
| Barrier Movement | Rotating |
| Lane Width | 600 mm |
| Footprint | 1450 × 1500 mm |
| Dimensions (L × W × H) | 1450 × 1500 × 2200 mm |
| Packing Dimensions (L × W × H) | 1550 × 1550 × 2350 mm |
| Ingress Protection | IPX4 |
| LED Indicator | Supported |
| Emergency Mode | Supported |
| Power Requirements | AC 110V / 220V, 50 / 60Hz |
| Security Level | High |
| MCBF | 1 Million Cycles |
| Net Weight | 100 kg |
| Throughput – RFID | Maximum 20 Persons per Minute |
| Throughput – Fingerprint | Maximum 15 Persons per Minute |
| Working Environment | Indoor / Outdoor |
Frequently Asked Questions
The FHT2200L is a single-lane full height security turnstile with a 90-degree rotating brake rod configuration. Its full-height structure forms an enclosed passage lane.
The cabinet and barrier are both made from SUS304 stainless steel, providing a durable construction for demanding access control environments.
The FHT2200L features a customizable reader panel that can accommodate card, fingerprint, QR Code, and other compatible reader devices.
Yes. The turnstile includes an anti-tailgating function designed to allow only one person to pass through for each authorized brake movement.
The FHT2200L supports fire emergency mode. When the power is off, the gate can rotate freely to facilitate emergency passage.
Yes. The FHT2200L is specified for indoor and outdoor environments and has an IPX4 ingress protection rating. Its full capping design also provides enhanced waterproof performance.
The FHT2200L provides a 600 mm passage lane.
The maximum specified throughput is approximately 20 persons per minute using RFID authentication and up to 15 persons per minute using fingerprint authentication.
Technical Specifications
