Product Details

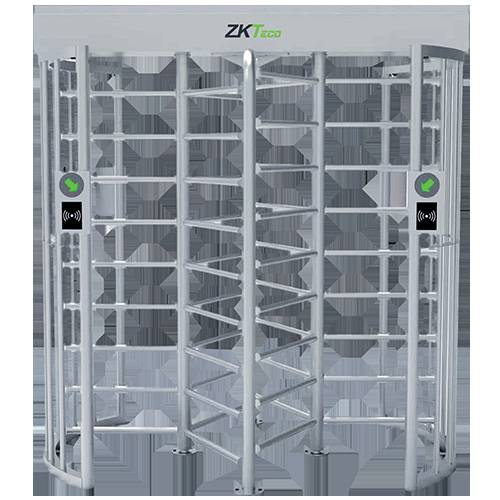

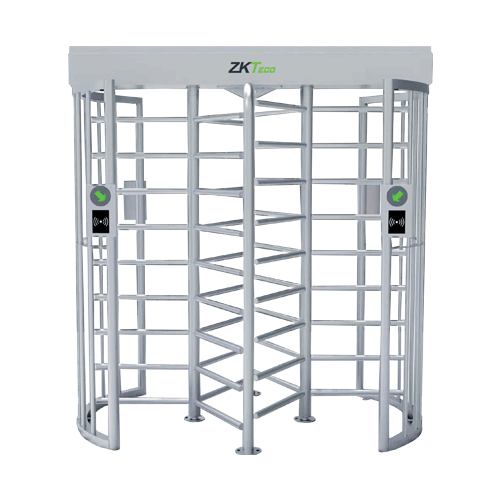

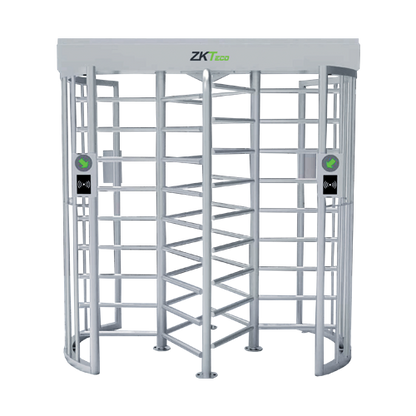

ZKTeco FHT3000D-LA Double Lane Full Height Turnstile
The ZKTeco FHT3000D-LA is a double-lane full height turnstile designed for high-security pedestrian access control. Combining robust stainless steel construction with reliable mechanical operation, it provides controlled entry and exit for demanding security environments.
The FHT3000D-LA consists of two single full height turnstiles integrated into one frame, providing two controlled lanes while making efficient use of available installation space. It is particularly suitable for locations where a large number of people need to be authenticated through secure access points.
The turnstile supports integration with ID/IC card readers, biometric systems, push buttons and other compatible access control devices, making it suitable for a wide range of security and entrance management applications.
Key Features
- Double-lane full height turnstile design.
- Two single turnstiles integrated into one frame.
- Designed for high-security pedestrian access control.
- Supports one-way and two-way access.
- SUS304 stainless steel barrier construction.
- SUS316 stainless steel option available.
- Compatible with ID/IC card readers.
- Supports biometric access control integration.
- Push-button opening support.
- 600 mm lane width per lane.
- Passing speed of up to 30 people per minute.
- Mechanical lifetime of up to 5 million cycles.
- Space-efficient double-lane configuration.
- Suitable for demanding security applications.
Product Advantages
- Provides two secure pedestrian access lanes within a single integrated frame.
- Full height construction provides enhanced physical access control.
- SUS304 stainless steel provides durability for long-term operation.
- Optional SUS316 stainless steel provides an additional material option for demanding environments.
- Supports both one-way and two-way access configurations.
- Can be integrated with card readers and biometric authentication systems.
- 5 million-cycle lifetime supports frequent pedestrian traffic.
- 600 mm lane width provides controlled pedestrian passage.
- Suitable for installations where security and space efficiency are important.
Double Lane Full Height Design
Two Lanes in One Frame
The FHT3000D-LA combines two single full height turnstiles into one integrated structure. This configuration provides two controlled access lanes while helping optimize installation space.
High-Security Physical Barrier
The full height design provides a continuous physical barrier from floor level to the top of the turnstile, making it suitable for controlled environments requiring stronger pedestrian access restrictions.
High Traffic Operation
With a specified passing speed of up to 30 people per minute, the FHT3000D-LA is designed to manage regular pedestrian traffic while maintaining controlled access.
Access Control Integration
ID & IC Card Readers
The turnstile supports opening through compatible ID/IC card reader systems, allowing authorized users to pass after successful credential verification.
Biometric Integration
The FHT3000D-LA can be integrated with compatible biometric access control systems, allowing organizations to use fingerprint, facial recognition or other supported authentication technologies.
Button Opening
Push-button opening is also supported, providing an additional access control method where required.
Technical Specifications
| Specification | Details |
|---|---|
| Model Name | FHT3000D-LA |
| Product Type | Double Lane Full Height Turnstile |
| Barrier Material | SUS304 Stainless Steel |
| Optional Barrier Material | SUS316 Stainless Steel |
| Access Direction | One-way / Two-way |
| Dimensions (L × W × H) | 2080 × 1340 × 2230 mm |
| Packing Dimensions (L × W × H) | 1130 × 1450 × 2234 mm |
| Lane Width | 600 mm |
| Mechanical Lifetime | 5 million times |
| Passing Speed | 30 people / minute |
| Net Weight | 178 kg |
| Weight with Packing | 268 kg |
| Opening Methods | ID/IC card reader, button opening, etc. |
Stainless Steel Construction
The FHT3000D-LA uses SUS304 stainless steel for its barrier construction, providing a durable and robust structure for demanding pedestrian access applications. SUS316 stainless steel is also available as an optional material for installations requiring an alternative stainless steel specification.
Access Direction
One-Way Access
The FHT3000D-LA can be configured for one-way pedestrian movement, making it suitable for controlled entry or exit points.
Two-Way Access
The turnstile also supports two-way access, allowing controlled movement in both directions where required.
Durability & Reliability
With a specified mechanical lifetime of 5 million cycles, the FHT3000D-LA is designed for long-term use in locations with frequent pedestrian movement. Its stainless steel construction provides additional durability for demanding access control installations.
Installation & Space Efficiency
The integrated double-lane configuration measures 2080 × 1340 × 2230 mm. By combining two individual full height turnstiles into one frame, the FHT3000D-LA provides multiple controlled lanes while maintaining an organized entrance layout.
Applications
- Factories & Industrial Facilities
- Warehouses & Logistics Centers
- Corporate Buildings
- Commercial Buildings
- Government Facilities
- Restricted Access Areas
- Transportation Facilities
- Stadiums & Large Venues
- Construction Sites
- Power & Utility Facilities
- High-Security Premises
- Employee Entrance Control
Why Choose ZKTeco FHT3000D-LA?
- Double-lane full height turnstile for secure pedestrian management.
- Two single turnstiles integrated into one space-efficient frame.
- Strong SUS304 stainless steel construction.
- Optional SUS316 stainless steel construction.
- Supports one-way and two-way access.
- Compatible with ID/IC card readers.
- Supports biometric access control integration.
- Up to 30 people per minute passing speed.
- 5 million-cycle mechanical lifetime.
- 600 mm lane width.
- Suitable for high-security and high-traffic environments.
Package Includes
- 1 × ZKTeco FHT3000D-LA Double Lane Full Height Turnstile
- Installation Accessories
- Installation Documentation
