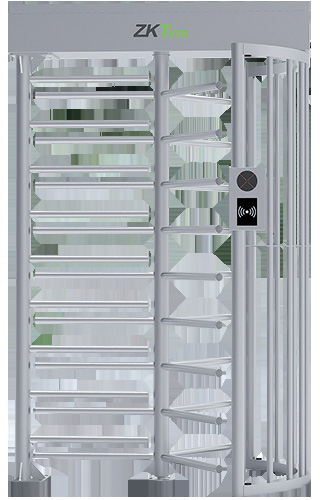

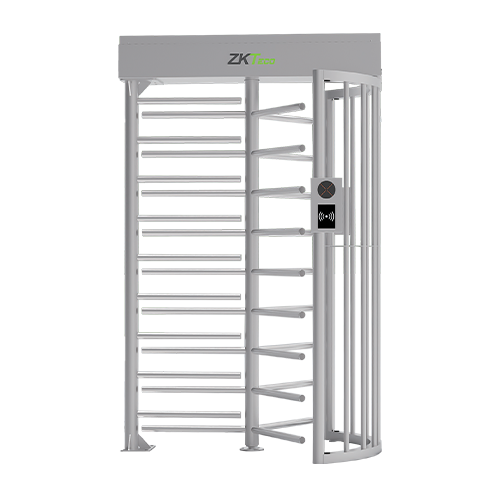

ZKTeco FHT3000S-LA – Full Height Turnstile
The ZKTeco FHT3000S-LA is a full height turnstile designed to provide a high level of physical security for controlled pedestrian access. Its strong SUS304 stainless steel barrier construction makes it suitable for high-risk and high-security locations where reliable access restriction is required.
The FHT3000S-LA provides smooth rotation for efficient pedestrian movement while maintaining controlled access. It supports both one-way and two-way access, allowing the operating direction to be configured according to the requirements of the access control system.
Designed for demanding environments, the full height construction provides enhanced protection against unauthorized passage. Its durable and weather-resistant design makes the FHT3000S-LA suitable for exterior applications and challenging outdoor environments.
Key Features
- Full height turnstile design for enhanced physical security.
- Strong SUS304 stainless steel barrier construction.
- Suitable for high-risk and high-security sites.
- Smooth rotation for efficient pedestrian passage.
- Supports one-way and two-way access operation.
- Compatible with ID and IC card readers.
- Supports button-based opening and other access release methods.
- Suitable for exterior applications.
- Durable construction for demanding environments.
- Maximum passing speed of up to 30 people per minute.
Product Advantages
- High-security full height barrier helps prevent unauthorized entry.
- SUS304 stainless steel construction provides strength and durability.
- Full height design provides improved physical access restriction compared with waist-height turnstiles.
- Smooth rotational mechanism supports efficient pedestrian movement.
- Flexible one-way or two-way operating modes.
- Can be integrated with access control systems using card readers, buttons and other release signals.
- Suitable for outdoor and high-security applications.
- Designed for reliable operation in demanding access environments.
Security Features
High Security Level
The full height barrier provides a strong physical restriction against unauthorized passage, making the FHT3000S-LA suitable for high-risk sites such as prisons, stadiums and other controlled facilities.
Full Height Barrier
The full height SUS304 stainless steel barrier extends from the floor to the upper structure, providing enhanced access control and making unauthorized climbing or bypassing more difficult.
Controlled Access
The mechanism can be released by an access control signal. Once authorization is received, the mechanism unlocks and provides controlled passage in the permitted direction.
Flexible Operation Modes
One-Way Operation
The FHT3000S-LA can be configured for one-way pedestrian access where controlled entry or exit is required.
Two-Way Operation
The turnstile can also be configured for two-way operation, allowing authorized users to pass in either direction according to the access control configuration.
Access & Opening Methods
The FHT3000S-LA can be connected to different access control systems and opening devices. Once a valid access signal is received, the mechanism releases the barrier to allow authorized passage.
- ID Card Reader
- IC Card Reader
- Push Button Opening
- Access Control System Release Signal
- Other compatible opening methods
Design & Construction
- Full height turnstile construction.
- SUS304 stainless steel barrier material.
- Durable construction for demanding access control applications.
- Weather-resistant design suitable for exterior applications.
- 600 mm standard lane width.
- Compact full-height access control configuration.
Applications
- Prisons and Correctional Facilities
- Stadiums and Sports Facilities
- Military Facilities
- Industrial Sites
- Factories and Manufacturing Facilities
- Warehouses
- Power Plants and Utility Facilities
- Construction Sites
- Government Facilities
- High-Security Buildings
- Restricted Industrial Areas
- Outdoor Security Entrances
Technical Specifications
| Specification | Details |
|---|---|
| Model Name | FHT3000S-LA |
| Product Type | Full Height Turnstile |
| Barrier Material | SUS304 Stainless Steel |
| Lane Width | 600 mm |
| Access Direction | One-Way / Two-Way |
| Dimensions (L × W × H) | 1400 × 1273 × 2230 mm |
| Packed Dimensions (L × W × H) | 1416 × 1066 × 2240 mm |
| Net Weight | 132 kg |
| Gross Weight with Packing | 215 kg |
| Opening Methods | ID/IC Card Reader, Push Button Opening, etc. |
| Passing Speed | Up to 30 People per Minute |
Operation
Access Authorization
The FHT3000S-LA remains secured until a valid access signal is received from the connected access control system or opening device.
Barrier Release
After authorization, the mechanism unlocks and provides the user with controlled passage in the permitted direction.
Efficient Pedestrian Flow
The smooth rotational mechanism supports a passing speed of up to 30 people per minute, helping maintain efficient movement through controlled entrances.
Frequently Asked Questions
The FHT3000S-LA is a full height turnstile designed for high-security pedestrian access control applications.
The barrier is constructed from SUS304 stainless steel, providing strength and durability for demanding applications.
Yes. The FHT3000S-LA supports both one-way and two-way access configurations.
The standard lane width is 600 mm.
The FHT3000S-LA supports a passing speed of up to 30 people per minute.
The turnstile can be opened using ID or IC card readers, push buttons and other compatible access control release methods.
Yes. Its durable stainless steel construction and weather-resistant design make it suitable for exterior applications and demanding outdoor environments.
It is suitable for high-security locations such as prisons, stadiums, military facilities, industrial sites, government facilities and other restricted-access areas.
