ZKTeco FR1200 RS485 Fingerprint and Proximity Card Reader
ZKTeco FR1200 RS485 Fingerprint and Proximity Card Reader
Couldn't load pickup availability
Product Details

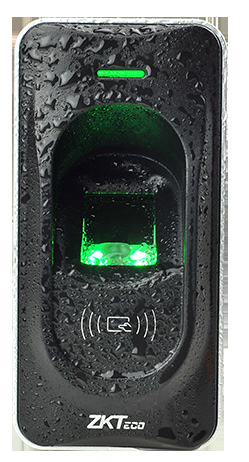

ZKTeco FR1200 Fingerprint Reader
The ZKTeco FR1200 is a reliable fingerprint reader designed for use with biometric access controllers and fingerprint-based standalone access control systems. It communicates through RS485 and is compatible with access control systems including the inBIO series controllers and F8.
The FR1200 captures fingerprint samples and transfers them to the connected access control panel for biometric verification. Its rugged IP65-rated structure provides additional durability and protection, making it suitable for both indoor and outdoor environments.
Key Features
- Fingerprint reader with RS485 communication interface.
- Designed for biometric access control applications.
- Compatible with inBIO series controllers.
- Compatible with F8 and supported fingerprint access control systems.
- Captures and transfers fingerprint samples to the access control panel.
- Rugged IP65-rated construction.
- Suitable for outdoor and demanding environments.
- Optional IC card module support.
- Voice prompt and buzzer support.
- Compact and easy-to-install design.
Product Advantages
RS485 Communication
The FR1200 uses RS485 communication to connect with compatible biometric access controllers and transfer fingerprint information securely.
Rugged IP65 Construction
Its IP65-rated structure provides enhanced durability and protection for installations where exposure to dust and water may occur.
Fingerprint Sample Transfer
The reader captures fingerprint samples and transfers them to the connected access control panel for authentication.
Optional Card Support
The FR1200 includes an ID card module as a standard function, while an IC card module is available as an optional function.
Compatible Applications
- Biometric Access Control Systems
- inBIO Series Access Controllers
- Fingerprint Standalone Access Control
- ZKTeco F8 Systems
- Corporate Offices
- Factories & Manufacturing Units
- Warehouses
- Commercial Buildings
- Educational Institutions
- Outdoor Access Points
Technical Specifications
| Specification | Details |
|---|---|
| Model | FR1200 |
| Product Type | Fingerprint Reader |
| Communication | RS485 |
| Standard Function | ID Card Module |
| Optional Function | IC Card Module |
| Voice Prompt | Yes |
| Buzzer | Yes |
| Power Supply | 12V DC |
| Ingress Protection Rating | IP65 |
| Operating Temperature | 0°C to 45°C |
| Dimensions | 102 × 50 × 37 mm (H × W × D) |
Why Choose ZKTeco FR1200?
- Reliable fingerprint reader for biometric access control.
- RS485 communication for controller integration.
- Supports fingerprint sample capture and transfer.
- Compatible with inBIO series controllers and F8.
- IP65 protection for enhanced outdoor durability.
- Compact 102 × 50 × 37 mm design.
- ID card module included as a standard function.
- Optional IC card module available.
- Voice prompt and buzzer support.
Package Includes
- 1 × ZKTeco FR1200 Fingerprint Reader
