ZKTeco

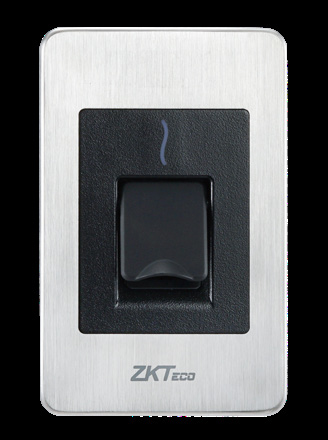

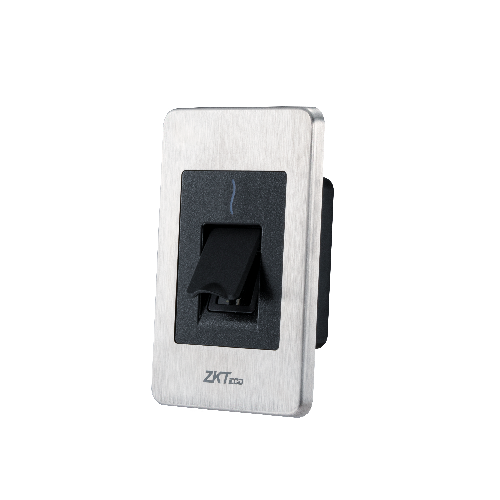

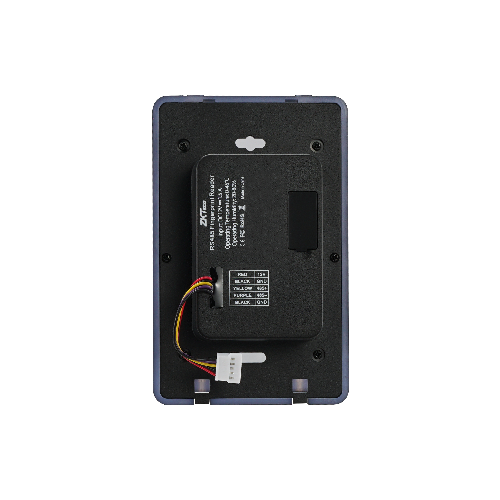

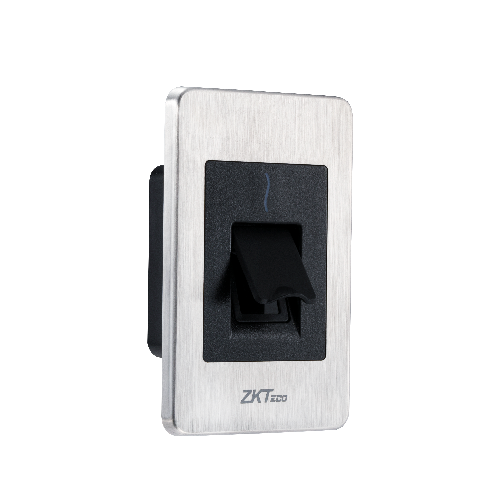

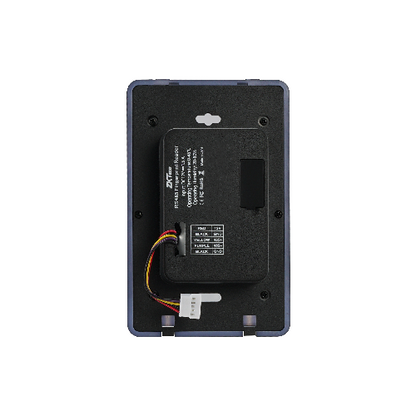

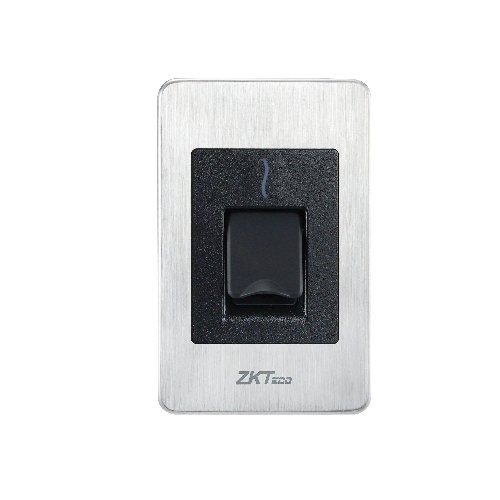

ZKTeco FR1500 RS485 Panel-Mount Fingerprint Reader
ZKTeco FR1500 RS485 Panel-Mount Fingerprint Reader
Couldn't load pickup availability
Product Details
ZKTeco FR1500S Fingerprint Reader
The ZKTeco FR1500S is a compact and durable fingerprint reader designed for biometric access control applications. It features the advanced Z-ID+ fingerprint sensor and communicates with compatible access controllers through an RS485 interface.
With its stainless steel front casing, IP65 protection and flush-mounted design, the FR1500S is suitable for installations requiring durability, security and a clean professional appearance. It is compatible with inBio / inBioPro controllers and standalone fingerprint devices.
Key Features
- Z-ID+ fingerprint sensor for reliable biometric verification.
- RS485 communication interface.
- Stainless steel front casing for enhanced durability.
- IP65 protection against dust and water splashes.
- Flush-mounted design for a neat and professional installation.
- Compatible with single-gang standard junction box installation.
- ZKFinger V10.0 algorithm.
- Three-color status indicator.
- Buzzer prompt for user feedback.
- Standard 125 kHz RFID card support.
Product Advantages
Advanced Z-ID+ Sensor
The FR1500S uses the Z-ID+ Sensor with the ZKFinger V10.0 algorithm for biometric fingerprint verification.
IP65 Protection
Its IP65-rated construction is fully dust-tight and resistant to water splashes from any direction, making it suitable for demanding installations.
Stainless Steel Front Casing
The stainless steel front casing provides a durable and professional appearance for access control installations.
Flush-Mounted Installation
The flush-mounted design provides a clean installation and is compatible with a standard single-gang junction box.
Card Support
- Standard: 125 kHz RFID Card
- Optional: 125 kHz HID Prox Card
- Optional: 13.56 MHz IC Card (S50 / S70)
- Optional: 13.56 MHz HID iCLASS Card
Compatibility
- inBio Controllers
- inBioPro Controllers
- Standalone Fingerprint Devices
Applications
- Corporate Offices
- Factories & Manufacturing Units
- Warehouses
- Commercial Buildings
- Educational Institutions
- Hospitals & Healthcare Facilities
- Industrial Access Points
- Restricted Access Areas
- Indoor & Covered Outdoor Installations
Technical Specifications
| Specification | Details |
|---|---|
| Model | FR1500S |
| Product Type | Fingerprint Reader |
| Sensor | Z-ID+ Sensor |
| Algorithm Version | ZKFinger V10.0 |
| Communication | RS485 |
| Standard Function | 125 kHz RFID Card |
| Optional Functions | 125 kHz HID Prox Card, 13.56 MHz IC Card (S50 / S70), 13.56 MHz HID iCLASS Card |
| Compatibility | inBio / inBioPro Controllers, Standalone Fingerprint Devices |
| Front Casing | Stainless Steel |
| Protection Rating | IP65 |
| Installation | Flush-Mounted / Single-Gang Standard Junction Box |
| Hardware | CPU 1.0 GHz, Z-ID+ Sensor, Buzzer Prompt, Three-Color Indicator |
| Power Supply | DC 12V |
| Standby Power Consumption | 12V × 60mA = 0.72W |
| Peak Current of Fingerprint Scanning | 140mA |
| Operating Temperature | -10°C to 45°C |
| Operating Humidity | 20% to 95% |
| Dimensions | 121.3 × 77.3 × 38 mm (L × W × H) |
| Net Weight | 14.2 g |
| Gross Weight | 24.4 g |
Why Choose ZKTeco FR1500S?
- Advanced Z-ID+ fingerprint sensor.
- ZKFinger V10.0 fingerprint algorithm.
- Reliable RS485 communication.
- Durable stainless steel front casing.
- IP65 protection against dust and water splashes.
- Flush-mounted design for professional installations.
- Supports standard 125 kHz RFID cards.
- Optional HID Prox, IC and HID iCLASS card support.
- Compatible with inBio and inBioPro controllers.
- Suitable for standalone fingerprint devices.
Package Includes
- 1 × ZKTeco FR1500S Fingerprint Reader
