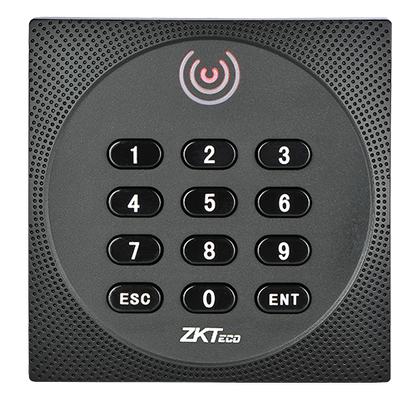

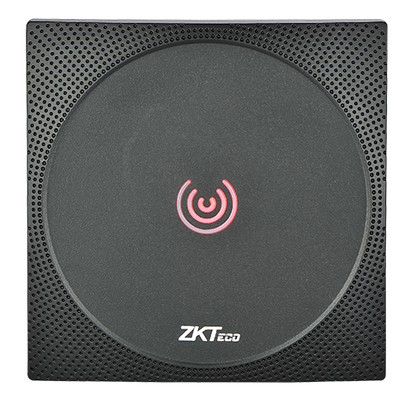

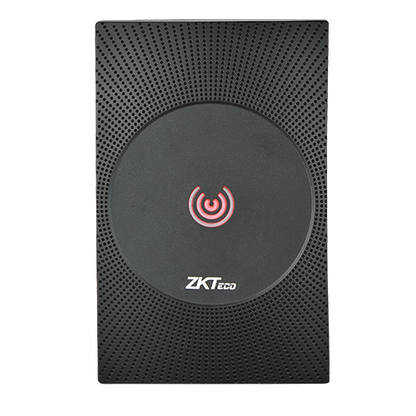

ZKTeco KR600E[RS485] Card Reader

ZKTeco KR600E[RS485] Card Reader

Rs. 1,349.00
Rs. 1,619.00 Rs. 1,349.00
Sale Sold out
Product Details

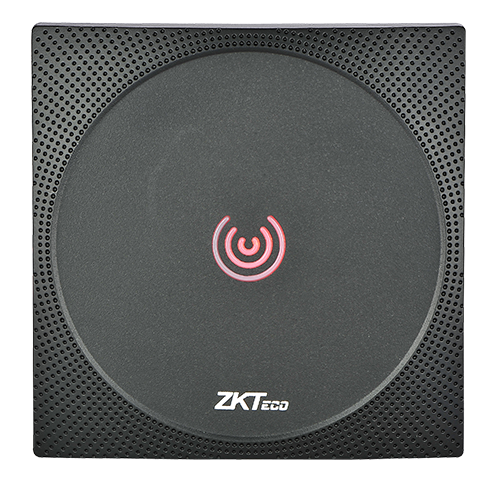

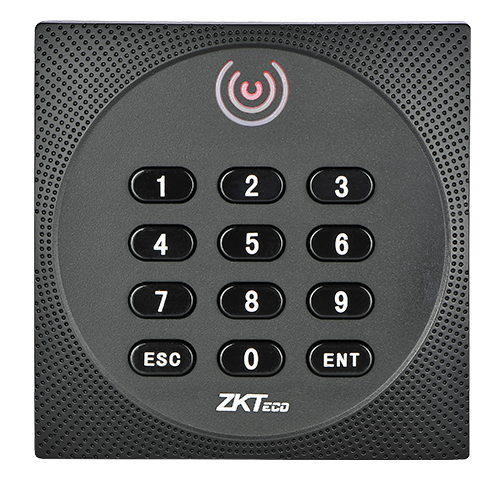

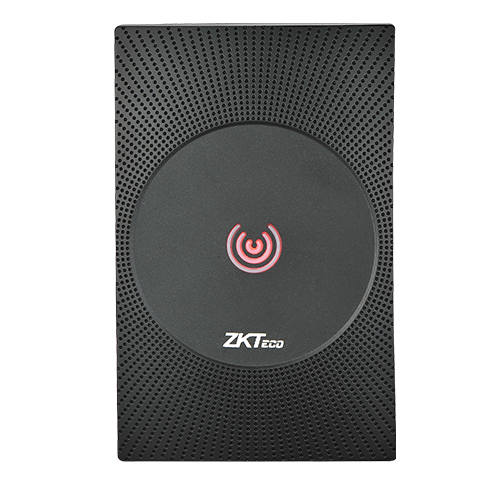

ZKTeco KR600 Series (KR600-E)

The ZKTeco KR600 Series is a proximity card reader designed for access control applications. The KR600-E model features an RS485 interface, fast reading performance and external LED and buzzer control.

Key Highlights: RS485 interface, up to 10 cm read range for KRxxx-E, reading time of ≤300 ms, 26-bit Wiegand output, red and green LED indicators, external LED and buzzer control, and a wide operating temperature range.

Features

RS485 Interface

The KR600 Series supports an RS485 interface for integration with compatible access control systems.

Long Read Range

The KRxxx-E variant provides a read range of up to 10 cm, while the KRxxx-M variant provides a read range of up to 5 cm.

Fast Reading Performance

The specified reading time is ≤300 ms, allowing fast card authentication.

LED & Buzzer Feedback

Red and green LEDs provide visual status indication, while the built-in beeper provides audible feedback.

External Control

Input ports are provided for external LED control and external buzzer control.

Durable Construction

The reader is constructed using ABS + PC with texture.

Technical Specifications

Parameter Details
Model ZKTeco KR600 Series (KR600-E)
Interface RS485
Read Range KRxxx-E: Up to 10 cm
KRxxx-M: Up to 5 cm
Reading Time ≤300 ms
Input Port External LED Control
External Buzzer Control
Material ABS + PC with texture
Output Format KRxxx-E: 26-bit Wiegand (Default)
KRxxx-M: 34-bit Wiegand (Default)
Power Supply DC 6-14V / Max. 70mA
LED Red and Green LEDs
Operating Temperature -20°C to 65°C (-10° to +70°C)
Ambient Air Temperature for Operation -20°C to 65°C (-10° to +70°C)
Ambient Temperature -20°C to 65°C (-10° to +70°C)
Operating Humidity 10% to 90% RH, non-condensing
Beeper Yes
Country of Origin Made in India

Communication & Output

  • Interface: RS485
  • KRxxx-E: 26-bit Wiegand output by default
  • KRxxx-M: 34-bit Wiegand output by default
  • External LED control
  • External buzzer control

Indicators

  • Red LED
  • Green LED
  • Built-in beeper

Operating Environment

The KR600 Series is specified for operation between -20°C and 65°C with operating humidity of 10% to 90% RH, non-condensing.

Applications

  • Access Control Systems
  • Proximity Card Access
  • Office Access Points
  • Commercial Buildings
  • Corporate Security Systems
  • Integrated Access Control Installations
