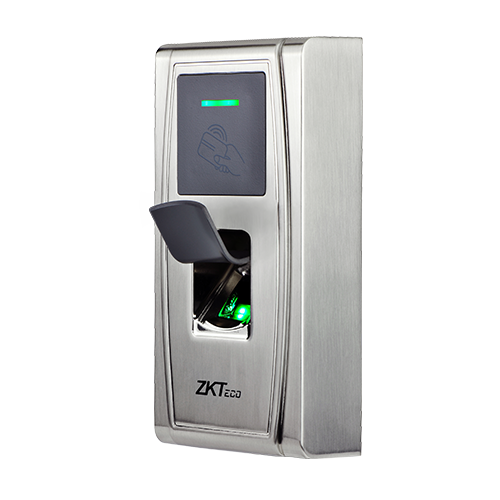

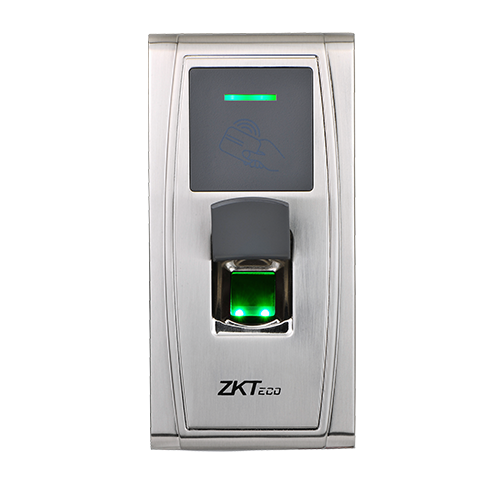

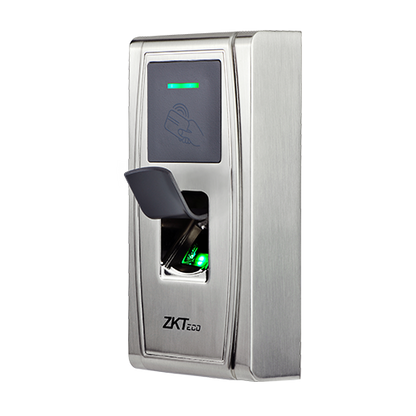

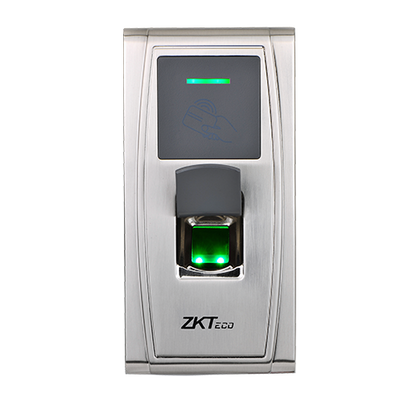

ZKTeco MA300 Outdoor Fingerprint & RFID Access Control Terminal
ZKTeco MA300 Outdoor Fingerprint & RFID Access Control Terminal
Couldn't load pickup availability
Product Details
ZKTeco MA300 Fingerprint & RFID Access Control Terminal
The ZKTeco MA300 is an integrated access control terminal featuring a durable zinc alloy metallic casing and advanced biometric authentication technology. It supports dual authentication through fingerprint and RFID card verification, providing reliable and fast access control for a wide range of security applications.
Built with an IP65-rated metallic housing, the MA300 offers protection against dust, water, and vandalism, making it suitable for both indoor and outdoor environments. Its robust construction is designed for installations where durability and dependable access control are important.
The MA300 is compatible with ZKBio CVSecurity for comprehensive access control and security management. With flexible communication interfaces including TCP/IP, RS485 and Wiegand, the terminal can be integrated easily with existing access control systems.
Key Features
- Integrated fingerprint and RFID access control terminal.
- Dual authentication using fingerprint and RFID verification.
- Advanced ZK fingerprint algorithm for fast and reliable recognition.
- Strong zinc alloy metallic casing.
- IP65-rated protection against dust and water.
- Vandal-resistant construction for demanding environments.
- Supports ID, optional IC and HID cards.
- TCP/IP, RS485 and Wiegand communication interfaces.
- Wiegand input and output for third-party integration.
- Wall-mounted installation design.
- Compatible with ZKBio CVSecurity software.
Product Advantages
Reliable Biometric Authentication
The MA300 uses the ZKFinger V10.0 algorithm to provide reliable and fast fingerprint verification for access control.
Durable Metallic Construction
Its zinc alloy metallic casing provides a robust structure designed to withstand demanding installation environments.
IP65 Protection
The IP65-rated enclosure provides protection against dust and water, making the MA300 suitable for indoor and outdoor applications.
Flexible System Integration
TCP/IP, RS485 and Wiegand interfaces allow the terminal to connect with access control systems and third-party devices.
Access Control Interfaces
- Door Sensor
- Third-Party Electric Lock
- Exit Button
- Alarm
- Lock Relay
- Doorbell
- Wiegand Input / Output
Authentication & Card Support
- Fingerprint Verification
- RFID Card Verification
- ID Card – 125 kHz
- IC Card – 13.56 MHz (Optional)
- HID Card
Applications
- Corporate Offices
- Factories & Manufacturing Units
- Warehouses
- Commercial Buildings
- Educational Institutions
- Hospitals & Healthcare Facilities
- Retail Stores
- Industrial Facilities
- Outdoor Access Points
- Restricted Access Areas
Technical Specifications
| Specification | Details |
|---|---|
| Model | MA300 |
| Product Type | Fingerprint & RFID Access Control Terminal |
| Regular User Capacity | 10,000 |
| Card Capacity | 10,000 |
| Fingerprint Capacity | 1,500 |
| Transaction Capacity | 100,000 |
| Algorithm Version | ZKFinger V10.0 |
| Card Type | ID Card (125 kHz), IC Card (13.56 MHz, Optional), HID Card |
| Communication | TCP/IP, RS485*, Wiegand In / Out |
| Fingerprint Verification Accuracy | FAR ≤ 0.0001%, FRR ≤ 0.01% |
| Hardware | 1 GHz Single Core, LPDDR 64M, Flash 128M |
| Ingress Protection | IP65 |
| Input Interfaces | 1 Door Sensor, 1 Third-Party Electric Lock, 1 Exit Button, 1 Alarm |
| Output Interfaces | 1 Lock Relay, 1 Doorbell |
| Installation | Wall-Mounted |
| Reading Distance | 30–50 mm |
| Power Supply | DC 12V 3A |
| Protocol | A & C Push |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 10% to 90% RH |
| Dimensions | 73 × 148 × 34.5 mm |
| Supported Software | ZKBio CVSecurity |
| Certifications | CE, FCC, ISO9001, ISO14001 |
Why Choose ZKTeco MA300?
- Reliable fingerprint and RFID authentication.
- Durable zinc alloy metallic construction.
- IP65 protection for indoor and outdoor installations.
- Up to 10,000 regular users and 10,000 cards.
- 100,000 transaction storage capacity.
- Advanced ZKFinger V10.0 algorithm.
- Flexible TCP/IP, RS485 and Wiegand connectivity.
- Complete door access control interface.
- Compatible with ZKBio CVSecurity.
- Compact wall-mounted design.
Package Includes
- 1 × ZKTeco MA300 Access Control Terminal
