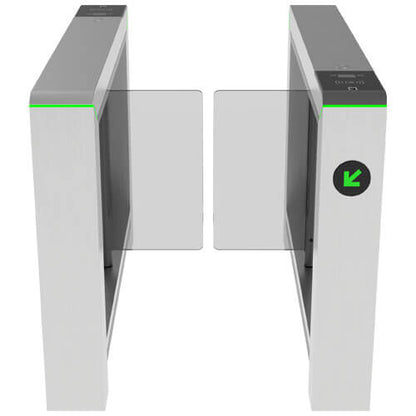

ZKTeco Mars-B1000 Swing Barrier Turnstile
ZKTeco Mars-B1000 Swing Barrier Turnstile
Couldn't load pickup availability
Product Details

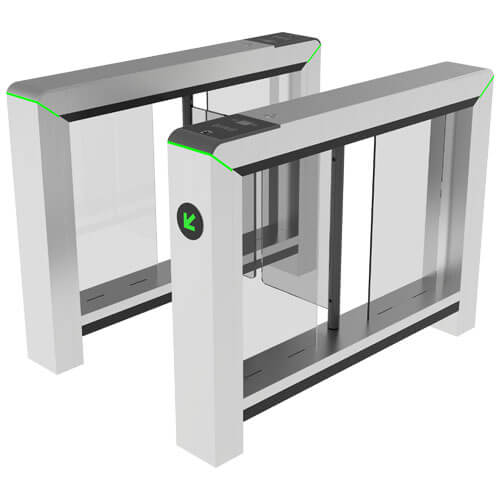

Mars-B1000 Series Swing Barrier Turnstile
The Mars-B1000 Series is a high-performance swing barrier turnstile from ZKTeco, designed to provide an enhanced user experience, reliable safety and convenient integration with access control systems. The series combines a modular construction with advanced infrared sensing technology to deliver secure and efficient pedestrian access control.
The Mars Series features a creative snap-fit, screwless and modularized design, making installation and maintenance easier while helping reduce production lead time. Its advanced infrared sensor system enhances anti-tailgating performance, while the brushless motor provides smooth and reliable barrier movement.
Key Features
- Advanced swing barrier turnstile design for secure pedestrian access control.
- Creative snap-fit, screwless and modularized construction.
- Easy installation and simplified maintenance.
- Brushless motor drive unit for smooth and reliable operation.
- 6 pairs of infrared sensors as standard.
- Up to 12 pairs of infrared sensors available as an option.
- Enhanced anti-tailgating performance through infrared sensor detection.
- SUS304 stainless steel cabinet and lid for durability.
- SUS316 stainless steel cabinet available as an optional material.
- Multiple barrier material options including acrylic, SUS304 stainless steel and tempered glass.
- LED status indicator support.
- Suitable for indoor and sheltered outdoor environments.
Product Advantages
The snap-fit, screwless and modularized structure simplifies installation and maintenance while reducing production lead time.
Multiple infrared sensor pairs improve obstacle detection and anti-tailgating performance for controlled pedestrian passage.
The brushless motor drive unit provides smooth swing barrier movement and supports reliable long-term operation.
The standard SUS304 stainless steel construction provides a strong and durable enclosure suitable for demanding access control applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Mars-B1000 Series |
| Product Type | Swing Barrier Turnstile |
| Power Requirements | AC100V to 120V / 200V to 240V, 50 to 60Hz |
| Working Power | 55W; 22W Standby |
| Drive Unit | Brushless Motor |
| MCBF | 3 million |
| Technical Throughput Rate | Up to 25 people per minute |
| Barrier Movement | Swing |
| Noise Level | < 60dB |
| Infrared Sensors | 6 pairs standard; up to 12 pairs optional |
| LED Indicator | Supported |
| Working Temperature | -25°C to 65°C |
| Working Humidity | 20% to 95% RH, non-condensing |
| Working Environment | Indoor / Outdoor if sheltered |
| Lane Width | 650mm standard; up to 900mm optional |
| Dimensions | 1360 × 180 × 1010 mm (±5mm) |
| Dimensions with Packing | 1510 × 365 × 1216 mm (2 boxes) |
| Net Weight | 100kg (±5kg) |
| Gross Weight | 150kg (±5kg) |
| Cabinet Material | SUS304 Stainless Steel; SUS316 Stainless Steel Optional |
| Lid Material | SUS304 Stainless Steel |
| Barrier Material | Acrylic; SUS304 Stainless Steel or Tempered Glass Optional |
| Packing Material | Wooden Case |
| Protection Level | IP34 |
Main Features
- Swing barrier movement.
- Brushless motor drive unit.
- 6-pair infrared sensor system.
- Up to 12 pairs of infrared sensors available as an option.
- Up to 25 people per minute technical throughput.
- 650mm standard lane width.
- Up to 900mm optional lane width.
- Less than 60dB operating noise.
- 3 million MCBF.
- SUS304 stainless steel cabinet.
- SUS304 stainless steel lid.
- Acrylic barrier as standard.
- SUS304 stainless steel or tempered glass barrier available as an option.
- LED indicator support.
- IP34 protection level.
Safety & Access Control
- Infrared sensor technology helps improve anti-tailgating performance.
- Additional infrared sensor pairs can be configured for enhanced detection.
- Smooth swing barrier movement supports controlled pedestrian passage.
- Durable stainless steel construction provides a robust physical access control solution.
Applications
- Office Buildings
- Corporate Facilities
- Factories and Industrial Sites
- Educational Institutions
- Government Buildings
- Commercial Buildings
- Transportation Facilities
- Indoor Access Control Areas
- Sheltered Outdoor Access Points
Why Choose Mars-B1000 Series?
- Combines a durable stainless steel construction with a modern modular design.
- Creative snap-fit construction simplifies installation and maintenance.
- Brushless motor provides dependable swing barrier operation.
- Multiple infrared sensor configurations improve passage monitoring.
- Supports standard 650mm and optional up to 900mm lane widths.
- Offers a high MCBF rating of 3 million cycles.
- Supports throughput of up to 25 people per minute.
- Suitable for indoor and sheltered outdoor access control applications.
Product Highlights
- Series: Mars-B1000
- Barrier Type: Swing
- Motor: Brushless Motor
- Standard IR Sensors: 6 pairs
- Optional IR Sensors: Up to 12 pairs
- Standard Lane Width: 650mm
- Optional Lane Width: Up to 900mm
- Throughput: Up to 25 people/minute
- MCBF: 3 million
- Protection Level: IP34
