ZKTeco Mars-B1200 Swing Barrier Turnstile
ZKTeco Mars-B1200 Swing Barrier Turnstile
Regular price
Rs. 278,143.00
Regular price
Rs. 333,772.00
Sale price
Rs. 278,143.00
Quantity
Couldn't load pickup availability
Product Details

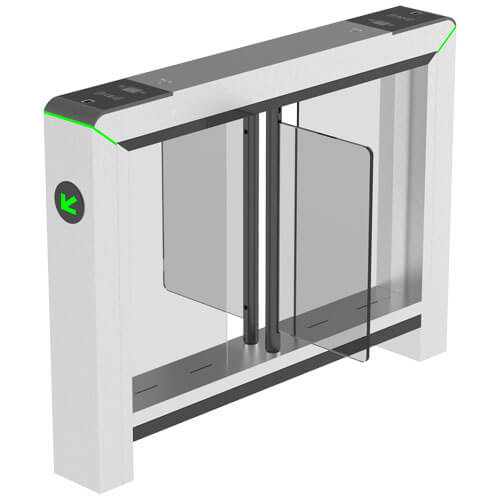

ZKTeco Mars-B1200 Series Swing Barrier
The ZKTeco Mars-B1200 Series is a high-performance swing barrier turnstile designed to provide secure, efficient, and reliable pedestrian access control for modern commercial, industrial, and institutional environments. The Mars Series combines advanced safety technology with a modular construction that simplifies installation, maintenance, and system integration.
The Mars-B1200 features a durable SUS304 stainless steel cabinet and lid, a high-performance brushless motor, and a choice of acrylic, stainless steel, or tempered glass barriers. With a throughput of up to 25 people per minute and a maximum of 12 infrared sensor pairs, it provides effective pedestrian flow management while maintaining strong anti-tailgating performance.
Its innovative snap-fit, screwless, modularized design makes installation and maintenance easier and can help reduce production and installation lead time. The Mars-B1200 is suitable for both indoor and sheltered outdoor applications.
Key Features
- Advanced swing barrier turnstile design.
- Modern and robust construction for demanding access control environments.
- SUS304 stainless steel cabinet and lid.
- SUS316 stainless steel cabinet available as an option.
- High-performance brushless motor drive unit.
- Up to 25 people per minute technical throughput.
- 6 pairs of infrared sensors as standard.
- Up to 12 pairs of infrared sensors available as an option.
- Enhanced anti-tailgating performance through infrared sensing.
- Snap-fit, screwless and modularized construction.
- Designed for simplified installation and maintenance.
- Low-noise operation below 60dB.
- LED status indicator.
- 650mm standard lane width.
- Lane width up to 900mm available as an option.
- Indoor and sheltered outdoor installation capability.
Product Advantages
- Durable stainless steel construction for long-term use.
- Brushless motor provides reliable and efficient barrier movement.
- Multiple infrared sensor pairs enhance pedestrian detection and security.
- Modular screwless design simplifies installation and servicing.
- High throughput supports entrances with continuous pedestrian traffic.
- Low operating noise makes it suitable for offices and public facilities.
- Optional wider lane supports improved accessibility.
- Suitable for integration into modern access control systems.
Technical Specifications
| Specification | Details |
|---|---|
| Product Series | Mars Series |
| Model Name | Mars-B1200 Series |
| Product Type | Swing Barrier Turnstile |
| Barrier Movement | Swing |
| Drive Unit | Brushless Motor |
| Cabinet Material |
SUS304 Stainless Steel SUS316 Stainless Steel (Optional) |
| Lid Material | SUS304 Stainless Steel |
| Barrier Material |
Acrylic (Standard) SUS304 Stainless Steel (Optional) Tempered Glass (Optional) |
| Lane Width |
650mm (Standard) Up to 900mm (Optional) |
| Technical Throughput Rate | Up to 25 people per minute |
| Infrared Sensors |
6 Pairs (Standard) Up to 12 Pairs (Optional) |
| MCBF | 3 Million |
| Noise Level | < 60dB |
| LED Indicator | Supported |
| Power Requirements | AC100V to 120V / AC200V to 240V, 50 to 60Hz |
| Working Power |
55W (Operation) 22W (Standby) |
| Working Temperature | -25°C to 65°C |
| Working Humidity | 20% to 95% RH (Non-condensing) |
| Working Environment | Indoor / Outdoor (if sheltered) |
| Protection Level | IP34 |
| Dimensions | 1360 × 180 × 1010mm (±5mm) |
| Dimensions with Packing | 1510 × 365 × 1216mm |
| Net Weight | 61kg (±5kg) |
| Gross Weight | 86kg (±5kg) |
| Packing Material | Wooden Case |
Safety & Security Features
- Multiple infrared sensor pairs for accurate pedestrian detection.
- Enhanced anti-tailgating performance.
- LED indicators provide clear operational status.
- Brushless motor technology supports reliable barrier movement.
- Modular construction simplifies maintenance and component replacement.
- Optional wider lane configuration supports easier pedestrian access.
Construction & Design
- SUS304 Stainless Steel: Provides a strong and durable cabinet and lid structure.
- Optional SUS316: Available for applications requiring enhanced material resistance.
- Brushless Motor: Provides efficient and reliable barrier operation.
- Modular Design: Snap-fit and screwless construction simplifies assembly and servicing.
- Barrier Options: Acrylic as standard, with stainless steel and tempered glass available as options.
Applications
- Corporate Offices
- Business Parks
- Commercial Buildings
- Industrial Facilities
- Factories and Manufacturing Plants
- Educational Institutions
- Government Buildings
- Hotels and Hospitality Facilities
- Fitness Centers and Gyms
- High-Traffic Building Entrances
- Indoor and Sheltered Outdoor Access Control Areas
Why Choose Mars-B1200?
- Reliable swing barrier technology from the ZKTeco Mars Series.
- 3-million-cycle MCBF for long-term operational reliability.
- Up to 25 people per minute throughput for efficient pedestrian flow.
- Up to 12 infrared sensor pairs for enhanced access monitoring.
- Durable SUS304 stainless steel construction.
- Optional SUS316 construction for demanding environments.
- Low-noise operation below 60dB.
- 650mm standard lane with up to 900mm optional width.
- IP34 protection rating for suitable indoor and sheltered outdoor applications.
- Modular snap-fit and screwless design simplifies installation and maintenance.
Package Highlights
- Mars-B1200 Series Swing Barrier Turnstile
- SUS304 Stainless Steel Cabinet
- SUS304 Stainless Steel Lid
- Acrylic Barrier Panels
- Brushless Motor Drive Unit
- Infrared Sensor System
- LED Status Indicator
- Wooden Case Packaging
