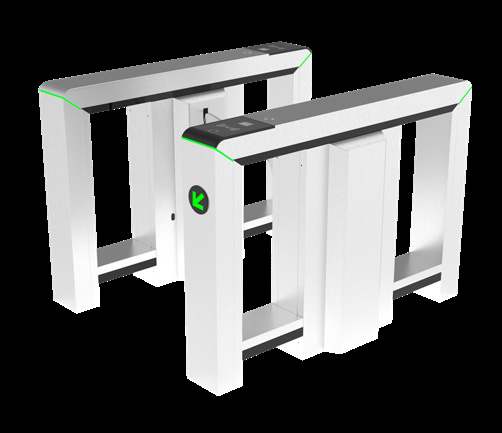

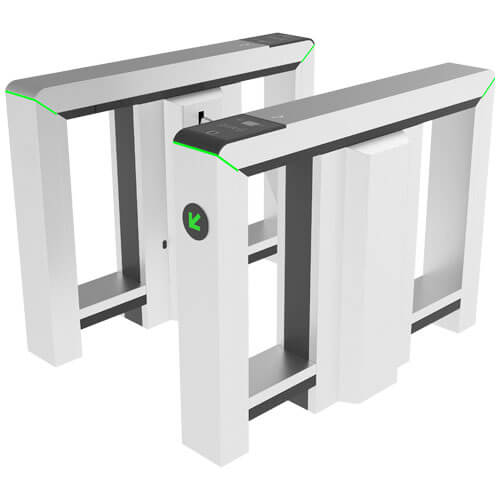

ZKTeco Mars-F1000 Series – Flap Barrier Turnstile
The ZKTeco Mars-F1000 Series is a premium flap barrier turnstile designed to deliver an enhanced user experience, reliable security, smooth operation and easy system integration. As part of the Mars Series, it combines modern design with practical engineering to provide efficient pedestrian access control for demanding environments.
The Mars-F1000 Series features a brushless motor drive unit and retracting barrier movement for smooth and quiet operation. With a technical throughput of up to 30 people per minute and 5 pairs of infrared sensors as standard, the system provides efficient pedestrian flow and reliable passage detection.
Its innovative snap-fit, screwless and modularized design simplifies installation and maintenance while helping reduce production lead time. The turnstile is constructed from SUS304 stainless steel, with SUS316 stainless steel available as an option, making it suitable for professional indoor and sheltered outdoor access control installations.
Key Features
- Premium flap barrier turnstile design.
- Retracting barrier movement for smooth pedestrian passage.
- Brushless motor drive unit for reliable operation.
- Up to 30 people per minute technical throughput.
- 5 pairs of infrared sensors as standard.
- Up to 12 pairs of infrared sensors available as an option.
- Enhanced anti-tailgating and passage detection performance.
- Creative snap-fit, screwless and modularized construction.
- Easy installation and simplified maintenance.
- SUS304 stainless steel cabinet construction.
- SUS316 stainless steel cabinet available as an option.
- LED status indicator support.
- Low-noise operation below 60 dB.
- IP34 protection level.
- Suitable for indoor and sheltered outdoor environments.
Product Advantages
- Modern modular design simplifies installation and maintenance.
- Snap-fit and screwless construction reduces installation complexity.
- Brushless motor provides smooth and reliable barrier movement.
- Retracting flap barriers provide controlled and convenient pedestrian access.
- Multiple infrared sensor configurations improve passage detection.
- High throughput supports efficient movement through busy entrances.
- Low operating noise is suitable for offices and commercial environments.
- Durable stainless steel construction provides long-term reliability.
- Optional SUS316 stainless steel construction is available for enhanced material performance.
- Suitable for integration with access control and authentication systems.
Innovative Modular Design
Snap-Fit Construction
The Mars-F1000 Series uses a creative snap-fit construction that simplifies assembly and helps make installation work faster and more convenient.
Screwless Design
The screwless design reduces installation complexity and provides easier access for maintenance and servicing.
Modularized Structure
The modularized construction simplifies installation and maintenance while helping reduce production lead time by up to 30 percent.
Barrier & Detection System
Retracting Barrier

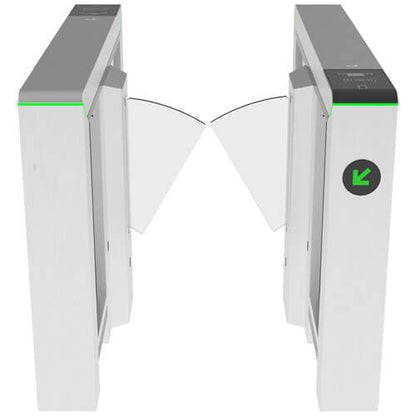

The Mars-F1000 Series uses retracting acrylic barriers that provide smooth and controlled passage while maintaining an elegant appearance.
Infrared Sensors
The standard configuration includes 5 pairs of infrared sensors, with up to 12 pairs available as an option for enhanced passage detection and anti-tailgating performance.
LED Status Indicator
Integrated LED indicators provide clear visual information to users regarding the access and passage status.
Performance & Reliability
Brushless Motor
The brushless motor drive unit provides smooth, reliable and efficient retracting barrier movement for continuous access control operation.
High Throughput
The Mars-F1000 Series provides a technical throughput rate of up to 30 people per minute, supporting efficient pedestrian movement through controlled entrances.
Long-Term Reliability
With an MCBF rating of up to 3 million cycles, the Mars-F1000 Series is designed for reliable long-term operation in demanding access control environments.
Low Noise Operation
The turnstile operates at a noise level of < 60 dB, helping maintain a comfortable environment in offices, commercial buildings and other facilities.
Safety & Security Features
- Retracting flap barrier design.
- 5 pairs of infrared sensors as standard.
- Up to 12 pairs of infrared sensors available as an option.
- Enhanced anti-tailgating performance.
- LED status indicators.
- Controlled pedestrian access.
- Low-noise operation below 60 dB.
- IP34 protection level.
Design & Construction
- SUS304 stainless steel cabinet.
- SUS316 stainless steel cabinet available as an option.
- SUS304 stainless steel lid.
- Acrylic barrier.
- Snap-fit construction.
- Screwless modularized design.
- Wooden case packaging.
- 600 mm standard lane width.
Applications
- Corporate Offices
- Commercial Buildings
- Business Centers
- Educational Institutions
- Factories and Industrial Facilities
- Government Buildings
- Financial Institutions
- Hotels and Hospitality Facilities
- Transportation Facilities
- Residential Buildings
- Secure Building Entrances
- Indoor and Sheltered Outdoor Locations
Technical Specifications
| Specification | Details |
|---|---|
| Model Name | Mars-F1000 Series |
| Product Type | Flap Barrier Turnstile |
| Power Requirements | AC 100–120V / 200–240V, 50–60Hz |
| Working Power | 50W |
| Standby Power | 22W |
| Drive Unit | Brushless Motor |
| MCBF | 3 Million Cycles |
| Technical Throughput Rate | Up to 30 People per Minute |
| Barrier Movement | Retract |
| Noise Level | < 60 dB |
| Infrared Sensors | 5 Pairs Standard / Up to 12 Pairs Optional |
| LED Indicator | Supported |
| Working Temperature | -25°C to 65°C |
| Working Humidity | 20% – 95% RH, Non-condensing |
| Working Environment | Indoor / Outdoor if Sheltered |
| Lane Width | 600 mm |
| Dimensions (L × W × H) | 1360 × 180 × 1010 mm (±5 mm) |
| Packed Dimensions (L × W × H) | 1510 × 365 × 1216 mm (2 Boxes) |
| Net Weight | 130 kg (±5 kg) |
| Gross Weight | 180 kg (±5 kg) |
| Cabinet Material | SUS304 Stainless Steel / SUS316 Stainless Steel Optional |
| Lid Material | SUS304 Stainless Steel |
| Barrier Material | Acrylic |
| Packing Material | Wooden Case |
| Protection Level | IP34 |
Installation & Maintenance
Easy Installation
The snap-fit and modularized structure simplifies installation work and reduces the complexity normally associated with turnstile assembly.
Simplified Maintenance
The screwless and modular construction provides easier access to internal components, helping simplify routine servicing and maintenance.
Reduced Production Lead Time
The innovative construction is designed to save up to 30% production lead time, supporting more efficient manufacturing and deployment.
Frequently Asked Questions
The Mars-F1000 Series is a flap barrier turnstile with retracting acrylic barriers, designed for secure and efficient pedestrian access control.
The standard configuration includes 5 pairs of infrared sensors. Up to 12 pairs are available as an option for enhanced passage detection and anti-tailgating performance.
The Mars-F1000 Series has a technical throughput rate of up to 30 people per minute, depending on the access control configuration and operating conditions.
The turnstile uses a brushless motor drive unit for smooth, reliable and efficient barrier movement.
The Mars-F1000 Series has a Mean Cycles Between Failure (MCBF) rating of up to 3 million cycles.
The standard lane width of the Mars-F1000 Series is 600 mm.
Yes. The turnstile can be installed outdoors when used in a sheltered environment. It has an IP34 protection level and supports a working temperature range of -25°C to 65°C.
The standard cabinet is constructed from SUS304 stainless steel, with SUS316 stainless steel available as an option. The lid is SUS304 stainless steel and the barrier is acrylic.
Its creative snap-fit, screwless and modularized construction simplifies installation and maintenance while helping reduce production lead time.
