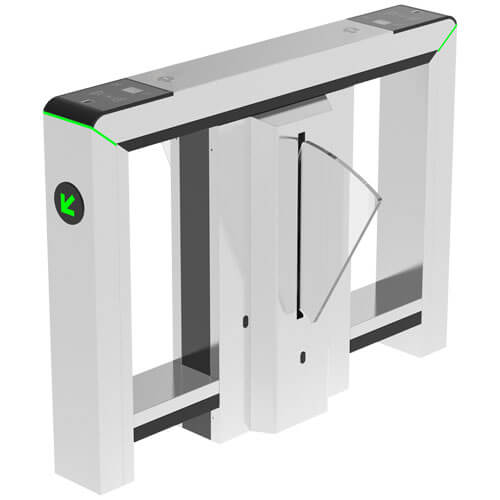

ZKTeco Mars-F1200 Flap Barrier Turnstile

ZKTeco Mars-F1200 Flap Barrier Turnstile — Stainless Steel Pedestrian Access Gate

From corporate lobbies in Gurgaon to factory gates in Pune, the ZKTeco Mars-F1200 Flap Barrier Turnstile handles serious daily traffic without breaking stride. As a result of its all-stainless-steel build and microsecond-precision controller, it's become one of the most-specified Flap Barriers for new commercial construction in India.

Why integrators specify the Mars-F1200 Flap Barrier Turnstile

💰 Built for a 10-year service life — stainless-steel housing resists rust in coastal cities and humid climates. As a result, total cost of ownership stays low.

🛠️ Two-installer setup — plug-and-play wiring with 12 V/24 V DC power. Most installations are commissioned in under half a day.

🛡️ Fail-safe in emergencies — arms drop down automatically during a power cut or fire alarm, ensuring fast evacuation in line with Indian fire-safety norms.

⚡ 25–30 people per minute — smooth mechanical rotation keeps shift-change and lunch-hour queues moving without manual intervention.

🔒 Hard stop on unauthorised entry — the arms only release when a valid credential is presented. Consequently, tailgating and unauthorised entries past reception become physically impossible.

🔔 Tamper & intrusion alarms — built-in alerts trigger if the cabinet is forced open or someone attempts to climb over.

Where this fits best

Corporate offices · Five-star hotels · Manufacturing plants · Government buildings · Hospitals · Industrial warehouses · Schools and colleges

Specifications at a glance

• Model: ZKTeco Mars-F1200 Flap Barrier Turnstile
• Category: Flap Barrier
• Housing: Brushed stainless steel (304-grade)
• Throughput: 25–30 people per minute
• Direction: Bi-directional pedestrian flow
• Reader interface: Dry contact / Wiegand (RFID, fingerprint, face, QR)
• Power supply: AC 100–240 V or 12 V/24 V DC
• Operating temperature: -10 °C to +55 °C
• Fail-safe: Arms drop automatically during power loss
• Warranty: 12-month manufacturer warranty

Frequently asked questions

Q. Which readers and credentials does it support?
The Mars-F1200 Flap Barrier Turnstile works with the full ZKTeco reader range — RFID (EM/Mifare/HID), fingerprint, face recognition and QR code. Plus, any third-party reader with a standard Wiegand output is supported, so existing credentials can be reused.

Q. Can this turnstile be used outdoors?
The standard Mars-F1200 Flap Barrier Turnstile is designed for indoor lobbies, reception areas and protected entrances. For exposed outdoor installations such as factory gates or stadium entries, we recommend either the IP-rated outdoor variant or a weatherproof shelter over the unit.

Q. Does it integrate with our existing access-control software?
Yes. The Mars-F1200 Flap Barrier Turnstile is controller-agnostic and accepts dry-contact or Wiegand input. Consequently, it integrates with ZKBio CVSecurity, ZKBio Access, BioTime, and most third-party access-control platforms.

Q. What happens during a power cut?
The arms drop down automatically during a power failure, allowing free pedestrian passage. As a result, emergency evacuation is never blocked — keeping your installation compliant with Indian fire-safety norms.
