ZKTeco Mars Pro-F1000 Flap Barrier Turnstile
ZKTeco Mars Pro-F1000 Flap Barrier Turnstile
Couldn't load pickup availability
Product Details

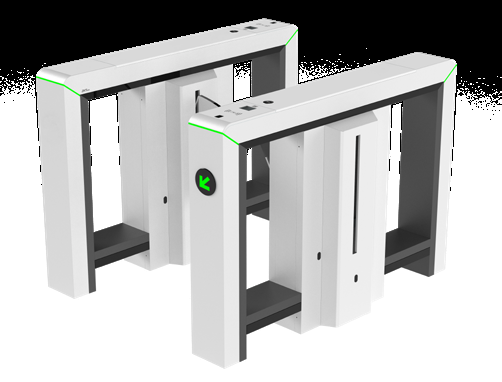

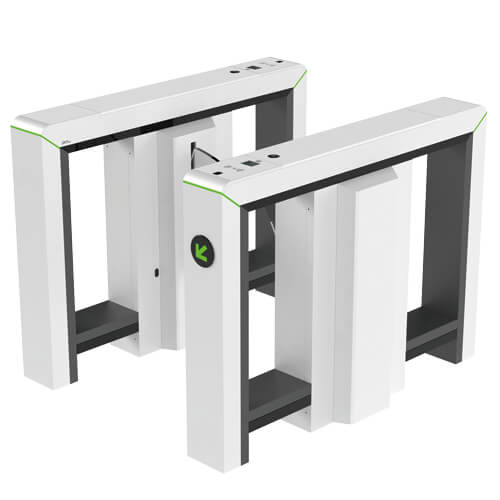

ZKTeco Mars Pro-F1000 Series Flap Barrier Turnstile
The ZKTeco Mars Pro-F1000 Series is a high-performance flap barrier turnstile designed to provide secure, efficient and user-friendly pedestrian access control. The Mars Pro Series combines a modern modular design with a powerful brushless motor, advanced infrared sensing and reliable retractable barrier movement.
Designed for high-traffic environments, the Mars Pro-F1000 provides a technical throughput rate of up to 30 people per minute with a 600 mm lane width. Its 16 pairs of infrared sensors enhance anti-tailgating performance while providing improved monitoring of pedestrian movement through the lane.
The creative snap-fit, screwless and modularized construction simplifies installation and maintenance. The design is engineered to reduce production lead time while providing convenient access for service and maintenance operations.
Key Features
- High-performance flap barrier turnstile for controlled pedestrian access.
- Retractable acrylic barrier movement.
- Brushless motor drive unit.
- Technical throughput of up to 30 people per minute.
- 600 mm standard lane width.
- 16 pairs of infrared sensors.
- Enhanced anti-tailgate performance.
- Low operating noise of less than 60 dB.
- LED indicator support.
- Creative snap-fit and screwless modular design.
- Designed for easier installation and maintenance.
- SPCC cabinet construction.
- Optional SUS316 stainless steel cabinet.
- Acrylic barrier material.
- IP34 protection level.
- Suitable for indoor and sheltered outdoor environments.
Product Advantages
- High Throughput: Supports a technical throughput rate of up to 30 people per minute for busy access points.
- Enhanced Anti-Tailgating: 16 pairs of infrared sensors provide enhanced monitoring of users passing through the lane.
- Reliable Drive System: The brushless motor provides efficient and stable barrier operation.
- Low Noise: Operating noise is specified at less than 60 dB.
- Modular Construction: Snap-fit and screwless construction simplifies installation and maintenance.
- Long Service Life: The drive system has an MCBF rating of 10 million cycles.
- Modern Design: The compact 600 mm lane and streamlined construction suit modern commercial access environments.
Advanced Anti-Tailgating Technology
16 Pairs of Infrared Sensors
The Mars Pro-F1000 incorporates 16 pairs of infrared sensors to improve detection of pedestrian movement through the access lane and enhance its anti-tailgating performance.
Reliable Retractable Barrier
The acrylic barriers use a retracting movement mechanism to provide controlled pedestrian passage while maintaining an elegant appearance suitable for modern buildings.
Brushless Motor Drive
10 Million MCBF
The Mars Pro-F1000 is equipped with a brushless motor drive unit with an MCBF rating of 10 million cycles, supporting reliable operation in high-traffic access control applications.
Quiet Operation
The turnstile has a specified operating noise level of less than 60 dB, helping provide a comfortable environment for users and staff.
Modular Installation & Maintenance
The Mars Pro Series uses a snap-fit, screwless and modularized design intended to simplify installation and maintenance. This construction reduces the complexity of servicing the turnstile and provides easier access to its modular components.
The modular design is also intended to reduce production lead time by up to 30%, making the series suitable for projects requiring efficient deployment and maintenance.
Technical Specifications
| Specification | Details |
|---|---|
| Model Name | Mars Pro - F1000 Series |
| Product Type | Flap Barrier Turnstile |
| Barrier Movement | Retract |
| Barrier Material | Acrylic |
| Drive Unit | Brushless Motor |
| MCBF | 10 million cycles |
| Technical Throughput Rate | Up to 30 people per minute |
| Lane Width | 600 mm |
| Infrared Sensor | 16 pairs |
| LED Indicator | Supported |
| Noise Level | < 60 dB |
| Power Requirements | AC100V to 120V / 200V to 240V, 50 to 60Hz |
| Working Power | 50W |
| Standby Power | 22W |
| Working Temperature | -25°C to 65°C |
| Working Humidity | 20% to 95% (non-condensing) |
| Working Environment | Indoor / Outdoor (if sheltered) |
| Dimension (L × W × H) | 1360 × 180 × 1010 mm (±5 mm) |
| Dimension with Packing (L × W × H) | 1510 × 365 × 1216 mm (2 boxes) |
| Net Weight | 130 kg (±5 kg) |
| Gross Weight | 180 kg (±5 kg) |
| Cabinet Material | SPCC; optional SUS316 stainless steel |
| Lid Material | SPCC; optional SUS316 stainless steel |
| Packing Material | Wooden case |
| Protection Level | IP34 |
Power & Electrical Requirements
Wide Voltage Support
The Mars Pro-F1000 supports AC100V to 120V / 200V to 240V at 50 to 60 Hz, allowing flexible deployment across different electrical environments.
Efficient Power Consumption
The specified working power is 50W, while standby power consumption is 22W, supporting efficient continuous operation.
Durable Construction
The Mars Pro-F1000 uses an SPCC cabinet and SPCC lid as standard, with SUS316 stainless steel options available. The acrylic barrier provides a modern appearance while supporting controlled pedestrian movement.
With an IP34 protection level, the turnstile is designed for indoor and sheltered outdoor applications.
Applications
- Office Buildings
- Corporate Entrances
- Commercial Buildings
- Business Centers
- Hotels & Hospitality Facilities
- Educational Institutions
- Factories & Industrial Facilities
- Warehouses
- Transportation Facilities
- Government Buildings
- Restricted Access Areas
- High-Traffic Pedestrian Entrances
Installation & Design
The Mars Pro-F1000 has a compact footprint of 1360 × 180 × 1010 mm and provides a 600 mm lane width. Its modern modular construction is suitable for professional access control installations where appearance, reliability and ease of maintenance are important.
The unit is designed for indoor and sheltered outdoor environments and operates within a temperature range of -25°C to 65°C.
Why Choose ZKTeco Mars Pro-F1000?
- Up to 30 people per minute technical throughput.
- 10 million cycle MCBF for long-term reliability.
- 16 pairs of infrared sensors for enhanced anti-tailgating performance.
- Brushless motor drive for stable operation.
- Retractable acrylic barrier system.
- Less than 60 dB operating noise.
- Snap-fit, screwless and modular construction.
- 600 mm pedestrian lane width.
- Optional SUS316 stainless steel construction.
- LED status indication.
- Suitable for indoor and sheltered outdoor applications.
- Professional solution for high-traffic access control.
Package Information
- Product packaging dimensions: 1510 × 365 × 1216 mm.
- Supplied in 2 boxes.
- Packaging material: Wooden case.
- Gross weight: 180 kg (±5 kg).
