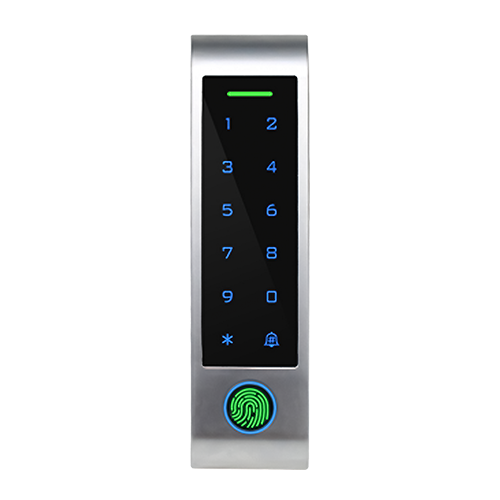

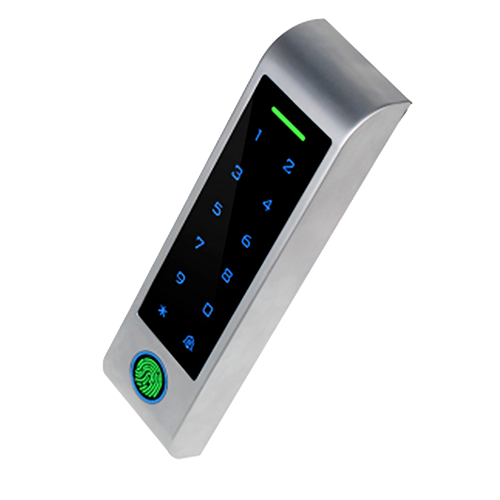

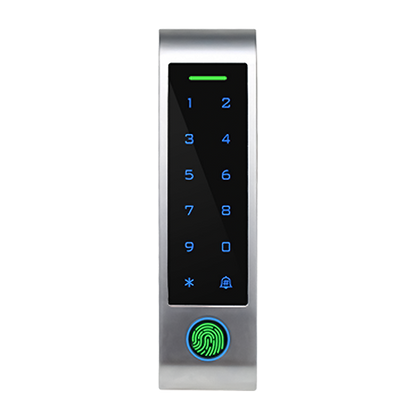

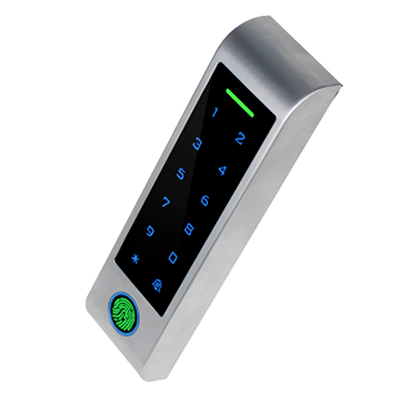

ZKTeco MK-V IP66 RFID Keypad Biometric Time Attendance Device

ZKTeco MK-V IP66 RFID Keypad Biometric Time Attendance Device

Rs. 4,177.00
Rs. 5,013.00 Rs. 4,177.00
Sale Sold out
Product Details

MK-V1  IP66 Standalone Access Control Device

The MK-V1 is a standalone access control device featuring a durable zinc alloy housing and an IP66 protection rating. It is designed to operate reliably in demanding indoor and outdoor environments while providing flexible access authentication through RFID cards and PIN codes.

The MK-V1 supports both 125 kHz ID cards and 13.56 MHz IC cards, providing dual-frequency card compatibility. It also supports Wi-Fi, Bluetooth, Wiegand input/output and access control interfaces for electric locks, door sensors, exit buttons and alarms.

Key Features

  • Standalone access control device with durable zinc alloy housing.
  • IP66-rated waterproof and dustproof protection.
  • Supports RFID card and password authentication.
  • Supports 125 kHz ID cards and 13.56 MHz IC cards.
  • Dual-frequency card support for greater credential flexibility.
  • 12-key touch keypad for password entry.
  • ID card capacity of up to 888 users.
  • Card reading distance of 2cm to 6cm.
  • Wi-Fi connectivity at 2.4 GHz.
  • Bluetooth BLE 5.0 support.
  • Wiegand input and output for integration with third-party controllers.
  • Access control interfaces for electric lock, door sensor, exit button and alarm.
  • Built-in LDR for tamper detection.
  • LED status indication and buzzer feedback.
  • Wide operating temperature range from -20°C to 60°C.

Product Advantages

  • Strong zinc alloy construction provides durability in demanding environments.
  • IP66 protection helps protect the device from water and dust.
  • Dual-frequency RFID support allows compatibility with both ID and IC cards.
  • Wi-Fi and Bluetooth connectivity provide flexible credential management options.
  • Can be used as a Wiegand reader with LED and buzzer output.
  • Built-in tamper detection enhances device security.
  • Compact wall-mounted design saves installation space.
  • Multiple access control interfaces allow connection with common door hardware.

Technical Specifications

Specification Details
Model MK-V1
Product Type Standalone Access Control Device
Operation System Linux
Housing Material Zinc Alloy
Hardware CPU: CKSF030
RAM: 8KB
ROM: 64KB
Touch Keypad: 12 Keys
Authentication Method Card / Password
Password Capacity 6 Digits
ID Card Capacity 888 (1:N) Standard
Transaction Capacity 1,000 (Standard)
Card Reading Distance 2cm to 6cm
Card Type ID & IC — 125 kHz & 13.56 MHz Dual Frequency
Communication Wi-Fi IEEE 802.11n/b/g @ 2.4 GHz
Bluetooth BLE 5.0
Wiegand Input & Output
Access Control Interfaces Electric Lock
Door Sensor
Exit Button
Alarm
Auxiliary Interfaces 1 × Auxiliary Input
1 × Auxiliary Output
Standard Functions Access Control, Buzzer, LED Status Indicator, Multiple Verification Methods
LED Indicators Green: Verification Successful
Red: Normal Status
Blue: Verification in Process
Tamper Detection Built-in Light-Dependent Resistor (LDR)
IP Rating IP66 — Waterproof and Dustproof
Power Supply DC 12V - 18V
Operating Temperature -20°C to 60°C
Operating Humidity 0% to 98% RH (Non-condensing)
Dimensions 165mm × 44mm × 22mm (L × W × H)
Net Weight 0.415 Kg
Gross Weight 0.500 Kg
Installation Method Wall-mount
Supported Software Mobile App: ZSmart (Mobile Credential)
Certifications ISO9001, ISO14001, CE, RoHS, FCC

Main Features

  • IP66 waterproof and dustproof access control terminal.
  • Zinc alloy housing for enhanced durability.
  • 125 kHz ID and 13.56 MHz IC dual-frequency card support.
  • RFID card and 6-digit password authentication.
  • Up to 888 ID card users.
  • Up to 1,000 transaction records.
  • Wi-Fi and Bluetooth BLE 5.0 connectivity.
  • Wiegand input and output support.
  • Electric lock, door sensor, exit button and alarm interfaces.
  • Built-in LDR tamper detection.
  • LED and buzzer verification feedback.
  • Wide -20°C to 60°C operating temperature range.

Applications

  • Standalone Access Control
  • Office Buildings
  • Commercial Facilities
  • Factories and Industrial Facilities
  • Warehouses
  • Outdoor Entry Points
  • Residential Buildings
  • Educational Institutions
  • Retail Stores
  • Restricted Areas

Why Choose the MK-V1?

  • Durable zinc alloy construction designed for demanding environments.
  • IP66 protection provides strong resistance against dust and water.
  • Supports both 125 kHz ID and 13.56 MHz IC cards.
  • Offers flexible card and password authentication.
  • Can function as a Wiegand reader with LED and buzzer output.
  • Wi-Fi and Bluetooth BLE 5.0 provide modern connectivity options.
  • Built-in LDR tamper detection adds an additional layer of security.
  • Compact wall-mounted design makes it suitable for space-constrained installations.
  • Compatible with ZSmart mobile credential functionality.
Technical Specifications
