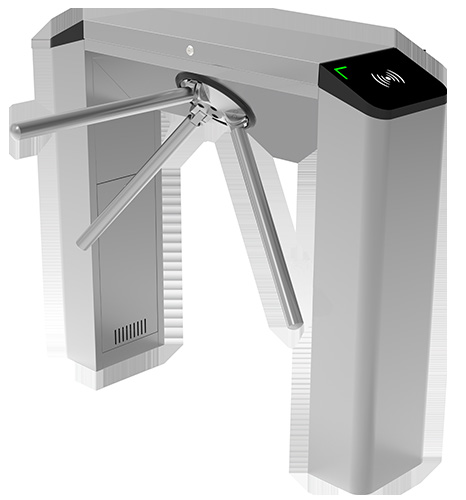

ZKTeco mTS1000 Motorised Tripod Turnstile
The ZKTeco mTS1000 is a motorised bi-directional tripod turnstile designed to provide reliable and efficient pedestrian access control. With a durable SUS304 stainless steel housing, rotating tripod arms and intuitive LED pictograms, the mTS1000 offers secure access management while maintaining smooth pedestrian flow.
The mTS1000 features an arm drop function for emergency situations and supports access control in both directions. Its low-power design, compact footprint and wide range of optional accessories make it a cost-effective solution for offices, commercial buildings, educational institutions, transportation facilities and other controlled-entry environments.
With a throughput of up to 25 people per minute and an MCBF of 2 million cycles, the mTS1000 is designed for dependable operation in medium-security access control applications.
Key Features
- Motorised bi-directional tripod turnstile.
- Durable SUS304 stainless steel housing.
- SUS304 stainless steel rotating barrier arms.
- Arm drop function for emergency situations.
- LED pictograms for intuitive user guidance.
- Supports pedestrian flow in both directions.
- Maximum throughput of up to 25 people per minute.
- Low power consumption design.
- MCBF of 2 million cycles.
- Indoor and sheltered outdoor installation.
- Medium security level.
- Wide range of optional accessories.
- Compact footprint for efficient space utilization.
Product Advantages
- Provides controlled pedestrian access with a robust tripod mechanism.
- Bi-directional operation supports flexible entrance and exit management.
- SUS304 stainless steel construction provides excellent durability.
- Motorised barrier movement delivers controlled and consistent operation.
- Emergency arm drop function provides a clear passage during emergencies.
- LED indicators make the access direction and operating status easy to understand.
- Compact design is suitable for installations where space is limited.
- Low power consumption helps reduce ongoing operating costs.
- Optional QR reader, card box and remote control provide additional configuration flexibility.
Bi-Directional Access Control
Two-Way Pedestrian Access
The mTS1000 supports bi-directional pedestrian access, allowing the tripod barrier to control entry and exit through the same lane according to the configured access control system.
Motorised Rotating Barrier
The stainless steel tripod arms use a motorised rotating movement to provide controlled passage after successful authentication.
LED User Guidance
Integrated LED pictograms provide intuitive visual guidance to users, helping indicate access status and direction of movement.
Emergency Safety
Automatic Arm Drop Function
The mTS1000 supports an emergency arm drop function. During an emergency condition, the tripod arm can drop to provide a clearer passage route and support safe evacuation.
Emergency Mode
The turnstile supports emergency mode and is designed to provide an appropriate passage solution during emergency situations.
Technical Specifications
| Specification | Details |
|---|---|
| Model Name | mTS1000 |
| Product Type | Motorised Bi-Directional Tripod Turnstile |
| Power Requirements | AC110V/220V, 50/60Hz |
| Working Temperature | -28°C to 60°C |
| Working Environment | Indoor / Outdoor (if sheltered) |
| Working Humidity | 5% to 80% |
| Speed of Throughput | Maximum 25 people per minute |
| Lane Width | 478 mm |
| Footprint | 138 × 250 mm |
| Dimension (L × W × H) | 798 × 750 × 950 mm |
| Net Weight | 35 ± 2.5 kg |
| Weight | 40 ± 5 kg |
| LED Indicator | Yes |
| Cabinet Material | SUS304 Stainless Steel |
| Lid Material | Acrylic + Glass |
| Barrier Material | SUS304 Stainless Steel |
| Barrier Movement | Rotating |
| Emergency Mode | Supported |
| Security Level | Medium |
| MCBF | 2 Million Cycles |
| Options / Accessories | Card Box, Remote Control, QR Reader |
Construction & Durability
SUS304 Stainless Steel Housing
The mTS1000 uses a SUS304 stainless steel cabinet and stainless steel barrier arms, providing a durable construction suitable for frequent pedestrian traffic.
Compact Design
With a footprint of approximately 138 × 250 mm and overall dimensions of 798 × 750 × 950 mm, the mTS1000 provides a practical solution for controlled entrances where efficient space usage is important.
Reliable Long-Term Operation
The turnstile has an MCBF of 2 million cycles, supporting dependable operation in medium-security pedestrian access applications.
Optional Accessories
- Card Box
- Remote Control
- QR Reader
These optional accessories allow the mTS1000 to be configured according to the requirements of different access control installations.
Installation & Environment
The mTS1000 is designed for indoor and sheltered outdoor environments. It operates across a wide temperature range of -28°C to 60°C and supports working humidity from 5% to 80%.
Its compact footprint and durable stainless steel construction make it suitable for entrances where reliable pedestrian access control is required without occupying excessive floor space.
Applications
- Office Buildings
- Corporate Entrances
- Commercial Buildings
- Educational Institutions
- Factories & Industrial Facilities
- Warehouses
- Hotels & Hospitality
- Residential Buildings
- Transportation Facilities
- Gymnasiums & Fitness Centers
- Restricted Access Areas
- Medium-Security Pedestrian Entrances
Why Choose ZKTeco mTS1000?
- Motorised bi-directional tripod turnstile.
- SUS304 stainless steel construction.
- High throughput of up to 25 people per minute.
- 2 million cycle MCBF for reliable long-term operation.
- Emergency arm drop function.
- LED pictograms for intuitive user guidance.
- Low power consumption.
- Compact footprint.
- Medium-security access control solution.
- Suitable for indoor and sheltered outdoor applications.
- Optional QR reader, card box and remote control.
Package Includes
- 1 × ZKTeco mTS1000 Motorised Tripod Turnstile
- Standard Installation Accessories
- Product Documentation
- Optional Accessories as Selected
