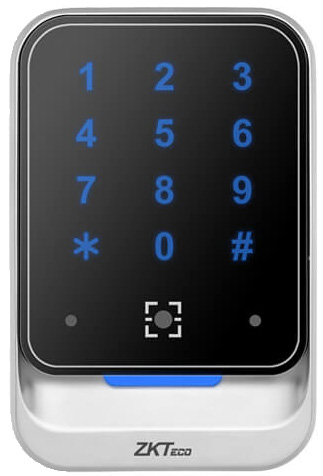

ZKTeco QR600-H IP65 Dynamic QR Code Access Control Reader
ZKTeco QR600-H IP65 Dynamic QR Code Access Control Reader
Couldn't load pickup availability
Product Details
ZKTeco QR600-H IP65 Dynamic QR Code Access Control Reader
The ZKTeco QR600-H is a compact QR code and RFID access control reader designed for reliable identification and secure entrance management. Built with a durable metal housing and an IP65-rated design, the QR600-H provides protection against dust and water for demanding indoor and sheltered outdoor applications.
The reader supports Dynamic QR Code recognition through the ZKBioSecurity Mobile Application, allowing smartphones to be used as convenient access credentials. In addition to QR codes, the QR600-H supports 125 kHz ID cards and 13.56 MHz IC cards, providing flexible credential options for modern access control systems.
With Wiegand and RS485 communication, the QR600-H can be integrated with compatible access control panels and systems. Its compact horizontal design makes it suitable for installation at doors, gates, turnstiles and other controlled access points.
Key Features
- Dynamic QR Code recognition support.
- Compatible with ZKBioSecurity Mobile Application.
- Supports QR codes and multiple 2D/1D barcode formats.
- Supports 125 kHz ID cards.
- Supports 13.56 MHz IC cards.
- Wiegand communication interface.
- RS485 communication interface.
- IP65-rated waterproof and dustproof protection.
- Durable metal construction.
- QR reading distance of ≥5 cm.
- RFID reading distance of ≥4 cm.
- Compact horizontal form factor.
- DC 12V power supply.
Product Advantages
- Combines QR code and RFID credential technologies in one access reader.
- Dynamic QR support enables convenient mobile-based access authentication.
- IP65 protection makes the reader suitable for demanding access control environments.
- Metal construction provides a durable solution for regular-use installations.
- Wiegand and RS485 interfaces provide flexible integration options.
- Supports both traditional RFID cards and smartphone-based QR credentials.
- Compact dimensions allow installation where available space is limited.
QR Code Authentication
Dynamic QR Code Recognition
The QR600-H supports Dynamic QR Code recognition with the ZKBioSecurity Mobile Application, enabling authorized users to present a mobile QR credential to gain access.
Multiple QR & Barcode Formats
The reader supports a wide range of QR and barcode formats, including QR, Data Matrix, PDF417, GS1 DataBar, Code 128/EAN128, UPC/EAN, Codabar, Code 39 and Code 93.
Fast QR Reading
The QR600-H provides a QR code reading distance of ≥5 cm, allowing users to conveniently present printed or compatible digital credentials.
RFID Card Authentication
125 kHz ID Cards
The QR600-H supports 125 kHz ID cards, providing compatibility with commonly used low-frequency RFID credentials.
13.56 MHz IC Cards
The reader also supports 13.56 MHz IC cards, allowing organizations to use compatible high-frequency RFID credentials alongside QR-based access.
Technical Specifications
| Specification | Details |
|---|---|
| Model | QR600-H |
| Product Type | Dynamic QR Code & RFID Access Control Reader |
| QR Sensor | QR, Data Matrix, PDF417, GS1 DataBar, Code 128 / EAN128, UPC / EAN, Codabar, Code 39 / Code 93 etc. |
| RFID | 125 kHz ID Cards / 13.56 MHz IC Cards |
| QR Code Reading Distance | ≥5 cm |
| RFID Reading Distance | ≥4 cm |
| Communication | Wiegand & RS485 |
| Dynamic QR Code | Supported |
| Mobile Application | ZKBioSecurity Mobile Application |
| Ingress Protection Rating | IP65 |
| Housing Material | Metal |
| Power Supply | DC 12V (±5%) |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -20°C to 80°C |
| Operating Humidity | 20% to 80% (assuming working environment temperature is 25°C) |
| Dimensions (L × W × H) | 120 × 80 × 16 mm |
Communication & Connectivity
- Wiegand communication.
- RS485 communication.
- Compatible with access control panels supporting the relevant interfaces.
- Suitable for integration with access control systems and controlled entry points.
IP65 Protection
The QR600-H features an IP65-rated enclosure designed to provide protection against dust and water. This makes it suitable for a variety of access control installations, including indoor environments and sheltered outdoor locations.
Installation & Design
The QR600-H uses a compact horizontal form factor measuring 120 × 80 × 16 mm. Its slim metal construction allows it to be installed conveniently near doors, gates, turnstiles and other controlled entry points.
Applications
- Office Buildings
- Corporate Entrances
- Commercial Buildings
- Residential Buildings
- Hotels & Hospitality
- Educational Institutions
- Factories & Industrial Facilities
- Warehouses
- Parking Access Points
- Turnstile Entrances
- Security Gates
- Restricted Access Areas
Why Choose ZKTeco QR600-H?
- Supports both Dynamic QR and RFID credentials.
- Compatible with ZKBioSecurity Mobile Application for mobile QR access.
- Supports 125 kHz ID cards and 13.56 MHz IC cards.
- Supports multiple QR and barcode formats.
- IP65-rated construction for enhanced environmental protection.
- Durable metal housing.
- Wiegand and RS485 communication interfaces.
- Compact 16 mm-thick design.
- Suitable for modern access control and mobile credential applications.
Package Includes
- 1 × ZKTeco QR600-H Dynamic QR Code & RFID Access Control Reader
- Installation Accessories
- Installation Documentation
