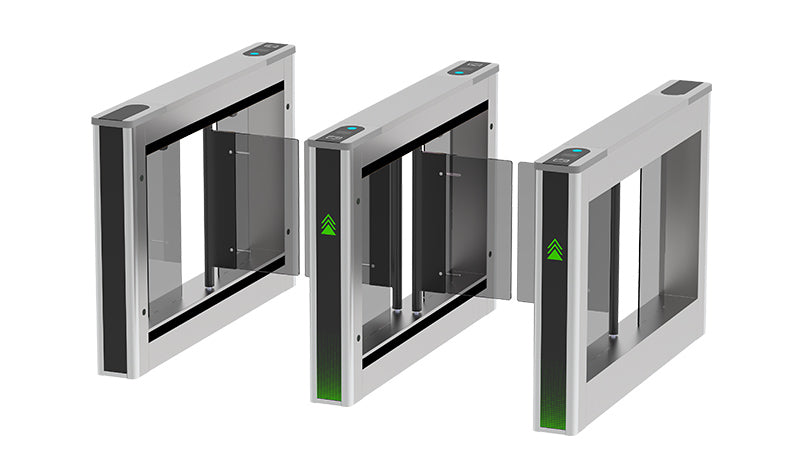

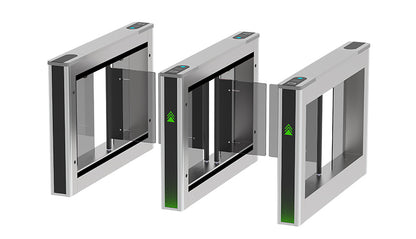

ZKTeco Saturn-S2000 Swing Barrier Turnstile
ZKTeco Saturn-S2000 Swing Barrier Turnstile
Couldn't load pickup availability
Product Details
ZKTeco Saturn-S2000 Series – Swing Barrier Turnstile
The ZKTeco Saturn-S2000 Series is an innovative swing barrier turnstile designed to provide a secure, smooth, and convenient passage experience. The series includes two models, Saturn-S2000 and Saturn-S2200, offering flexible configurations for single-lane and additional-lane access control applications.
Built primarily from SUS304 stainless steel, the Saturn-S2000 Series provides robust construction with an IP54 protection rating against water and dust. The turnstile is equipped with a clutch to enhance security and features a DC brushless motor for reliable and smooth barrier movement.
For enhanced safety, the Saturn-S2000 Series comes standard with 12 pairs of infrared sensors, expandable to 18 pairs, with integrated dual-zone pinch protection and improved obstacle detection. The authentication area is enhanced with 2.5D tempered glass for improved scratch resistance and durability.
The Saturn-S2000 Series supports multiple authentication options, including facial authentication, QR Code, RFID, and compatible fingerprint readers. Its swing barrier configuration supports lane widths from 600 mm up to 900 mm with acrylic barriers, while stainless steel barriers are available for wider lanes up to 1200 mm, allowing controlled passage for two-wheeled motorcycles.
Key Features
The chassis body is constructed from SUS304 stainless steel, providing a durable structure suitable for demanding access control environments.
The Saturn-S2000 Series features IP54 protection against water and dust, making it suitable for indoor and sheltered outdoor installations.
12 pairs of infrared sensors are provided as standard, with support for up to 18 pairs. The integrated dual-zone pinch protection improves obstacle detection and passage safety.
The integrated clutch enhances the security of the swing barrier mechanism and provides additional protection during operation.
Supports facial authentication, QR Code, RFID, and compatible fingerprint readers to provide flexible access verification.
The lane width can be configured from 600 to 900 mm with acrylic barriers, while lanes up to 1200 mm can be configured with stainless steel barriers for two-wheeled motorcycle access.
The DC brushless motor provides an average movement time of approximately 1 second, with adjustable opening and closing timing.
The swing barrier automatically opens during power failure and supports an emergency mode for safe evacuation.

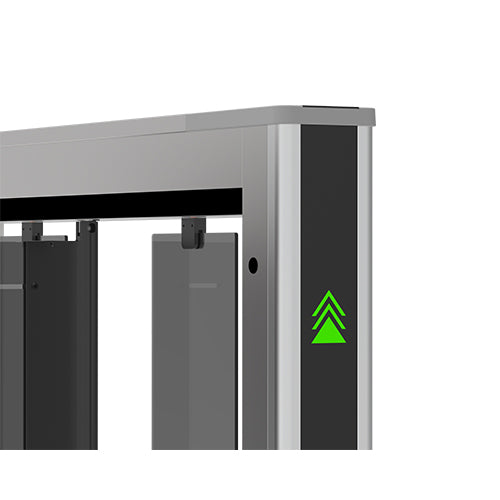

Top and side LED indicators clearly communicate door and lane status to users and security personnel.
With an MCBF of up to 5 million cycles and an MTTR of less than 60 minutes, the Saturn-S2000 Series is designed for long-term access control applications.
Models
- Saturn-S2000: Single-lane swing barrier configuration
- Saturn-S2200: Dual swing configuration for an additional lane
Authentication Options
- Facial Authentication
- QR Code Authentication
- RFID Card Authentication
- Fingerprint Authentication through compatible under-mount readers
Credential & Reader Options
- Under-mount RFID Reader – Pro ID Series
- Under-mount RFID Reader – KR Series
- Under-mount Fingerprint Reader – FR1200
- Under-mount Fingerprint Reader – FR1500S
- Surface-mounted Facial Authentication
LED Indicators
- Top LED – Blue: Door closed / Standby
- Top LED – Green: Door opening
- Top LED – Red: Door closing / Alarm
- Side LED – Green: Lane available
- Side LED – Red: Lane unavailable
Safety & Security Features
- Anti-tailgating protection
- Anti-pinch protection
- Dual-zone pinch protection
- 12 pairs of infrared sensors as standard
- Up to 18 pairs of infrared sensors supported
- Security clutch
- Automatic swing barrier opening during power failure
- Voltage-free fire alarm contact input
- Emergency mode support
Applications
- Corporate Offices
- Commercial Buildings
- Factories and Industrial Facilities
- Educational Institutions
- Government Buildings
- Hotels
- Transport and Infrastructure Facilities
- Security Entrances
- Indoor Access Control Areas
- Sheltered Outdoor Installations
- Sites Requiring Two-Wheeled Motorcycle Access
Specifications
| Parameter | Specification |
|---|---|
| Series | Saturn-S2000 Series |
| Model Name | Saturn-S2000 / Saturn-S2200 |
| Audio Indicator | Internal Speaker |
| Visual Indicator | Top LED Indicator: Blue = Door Closed / Standby, Green = Door Opening, Red = Door Closing / Alarm; Side LED Indicator: Green = Lane Available, Red = Lane Unavailable |
| Display | Not Available |
| Lane Type | Saturn-S2000: Single Lane; Saturn-S2200: Dual Swing for Additional Lane |
| Lane Width | 600–900 mm Optional with Acrylic Barrier; Maximum 1200 mm Optional with Stainless Steel Barrier for Two-Wheeled Motorcycle Access |
| Barrier Movement Type | Swing |
| Motor | DC Brushless Motor |
| Movement Speed | Average 1 Second per Movement; Adjustable Open / Close Timing |
| Clutch | Equipped |
| Movement Accuracy | Middle |
| Lid Material | Stainless Steel & Polycarbonate |
| Authentication Mount Options | Under-mount QR Code / RFID; Surface-mounted Facial Authentication |
| Chassis Material | SUS304 Stainless Steel Chassis Body / Aluminum Alloy Gate Column |
| Chassis Colour | Gray (Standard) |
| Barrier Material | Light Gray Transparent Acrylic, 305 × 555 × 10 mm (Standard) / 380 × 555 × 10 mm (Optional). Stainless Steel Barriers Required for 900–1200 mm Lane Width |
| IR Sensors | 12 Pairs Standard / 18 Pairs Optional |
| Motherboard Function | System Configuration, Access Control |
| Motherboard Communication | Fire Alarm Port (Relay) ×1, RS485 Port ×1 |
| Controller | Compatible with C3 / InBio Series or Third-Party Controller |
| Credential Options | Under-mount RFID Reader – Pro ID Series / KR Series; Under-mount Fingerprint Reader – FR1200 / FR1500S |
| Flow Rate – Facial Authentication | 15 Passengers per Minute |
| Flow Rate – QR Code | 30 Passengers per Minute |
| Flow Rate – RFID | 35 Passengers per Minute |
| Accessibility | Adults, Children with Care, Persons with Disabilities with Care |
| Power Supply | 110V / 220V ±10% AC @ 50Hz / 60Hz |
| Power Rating | 20VA Standby / 40VA Operation |
| Fire Signal | Input for Voltage-Free Contact |
| Noise Level | Less than 60 dB |
| MTTR | Less than 60 Minutes |
| MCBF | 5 Million Cycles |
| Weight – Saturn-S2000 | 100 kg Net Weight / 140 kg Gross Weight |
| Weight – Saturn-S2200 | 60 kg Net Weight / 100 kg Gross Weight |
| Dimensions (L × W × H) | 1500 × 180 × 1020 mm |
| Packing Dimensions – Saturn-S2000 | 1580 × 340 × 1270 mm (2 Pieces) |
| Packing Dimensions – Saturn-S2200 | 1580 × 340 × 1270 mm |
| Operating Temperature | -30°C to 70°C |
| Operating Humidity | 5% to 90% RH, Non-condensing |
| Ingress Protection Rating | IP54 – Water & Dust Protection |
| Certifications | CE, FCC |
| Supported Software | ZKBio CVAccess / ZKBio CVSecurity, Depending on Equipped Access Controller |
| Safety Features | Voltage-Free Contact Input for Fire Alarm Fail State; Automatic Swing Barrier Opening During Power Failure |
| Security Features | Anti-tailgating, Anti-pinch, Security Clutch |
| Product Delivery | Pre-assembled |
| Application Environment | Indoor / Outdoor if Sheltered |
| Site Preparation | Flat & Level Finished Floor; Base Plate Available for Unfinished Floor |
| Security Level | Medium |
| Emergency Mode | Supported; Swing Barrier Opens Automatically |
| Packing Material | Wooden |
Frequently Asked Questions
The series includes the Saturn-S2000 single-lane swing barrier and the Saturn-S2200 dual-swing configuration for an additional lane.
The standard configurable lane width ranges from 600 to 900 mm with acrylic barriers. For wider access, a maximum lane width of 1200 mm is available with stainless steel barriers, specifically supporting two-wheeled motorcycle access.
The Saturn-S2000 Series includes 12 pairs of infrared sensors as standard and can be expanded to 18 pairs. The sensor system provides enhanced obstacle detection and dual-zone pinch protection.
The Saturn-S2000 Series supports facial authentication, QR Code, and RFID authentication. Compatible fingerprint readers, including FR1200 and FR1500S, can also be used.
Yes. The Saturn-S2000 Series can be installed outdoors when adequately sheltered. Its IP54 rating provides protection against water and dust.
Yes. The swing barrier automatically opens during power failure and supports an emergency mode for evacuation and safe passage.
The Saturn-S2000 Series uses a DC brushless motor with an average movement speed of approximately 1 second per movement. The opening and closing timing can be adjusted.
The turnstile has an MCBF rating of up to 5 million cycles and an MTTR of less than 60 minutes, supporting reliable long-term operation.
The Saturn-S2000 Series supports ZKBio CVAccess and ZKBio CVSecurity, depending on the access controller equipped with the turnstile.
