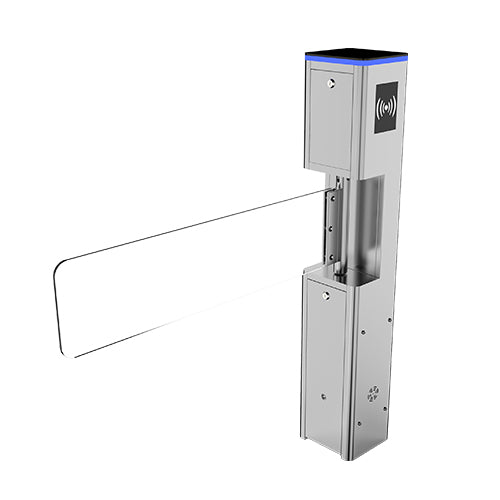

ZKTeco SBT2000S Swing Barrier Turnstile
ZKTeco SBT2000S Swing Barrier Turnstile
Couldn't load pickup availability
Product Details
ZKTeco SBT2000S Series – Wide-Passage Single-Lane Swing Barrier
The ZKTeco SBT2000S Series is an elegant, cost-effective, and wide-passage single-lane swing barrier designed for controlled entrance and pedestrian access. With an 800 mm standard lane width, the series is particularly suitable for large parcel delivery, wheelchair users, and people with physical disabilities.
The SBT2000S Series provides smooth and quiet swing barrier operation while consuming very little power. The default gate opening and closing time is approximately 3 seconds, providing controlled and comfortable passage for users.
A sensitive infrared sensor positioned at the bottom of the gate helps detect obstacles and reduces the risk of accidental injury caused by the moving barrier glass. During a power outage, the barrier can be manually pushed open, allowing users to leave the area safely without requiring powered operation.
Key Features
The standard 800 mm lane provides a wider passage suitable for wheelchair users, people with physical disabilities, and large parcel delivery.
The SBT2000S Series provides reliable pedestrian access control with a simple and economical design suitable for a variety of entrance applications.
The swing barrier is designed to operate smoothly and quietly while consuming very little power.
A sensitive infrared sensor installed at the bottom of the barrier helps detect obstacles and reduces the possibility of accidental injury from the moving gate.
During a power outage, users can manually push the swing gate open and leave the area without relying on electrical power.
Depending on the model, the SBT2000S Series can be supplied without a reader, with RFID authentication, or with RFID and fingerprint authentication.
The cabinet is constructed from cold-rolled sheet as standard, with SUS304 stainless steel available as an optional material. The barrier can use tempered glass, stainless steel, or acrylic depending on the configuration.
Models & Authentication
- SBT2000S: No reader and no integrated controller
Authentication Options
- No Reader – SBT2000S
LED Indicator
- LED Indicator Support
Safety & Emergency Features
- Bottom-mounted sensitive infrared sensor
- Obstacle detection around the moving barrier
- Wide passage suitable for accessibility requirements
- Emergency mode support
- Manual gate opening during power outage
- Smooth and quiet barrier movement
Applications
- Corporate Offices
- Commercial Buildings
- Shopping Centres
- Hospitals and Healthcare Facilities
- Educational Institutions
- Government Buildings
- Warehouses
- Parcel Delivery Entrances
- Wheelchair-Accessible Entrances
- Facilities for People with Physical Disabilities
- Indoor Access Control Areas
- Sheltered Outdoor Installations
Specifications
| Parameter | Specification |
|---|---|
| Series | SBT2000S Series |
| Model Name | SBT2000S |
| Reader – SBT2000S | N/A |
| Reader – SBT2011S | RFID |
| Reader – SBT2022S | RFID & Fingerprint |
| Controller – SBT2000S | N/A |
| Controller – SBT2011S | PGIC Controller |
| Controller – SBT2022S | PGIC Controller |
| Card Capacity – SBT2000S | N/A |
| Card Capacity – SBT2011S | 10,000 Cards |
| Card Capacity – SBT2022S | 10,000 Cards |
| Fingerprint Capacity – SBT2000S | N/A |
| Fingerprint Capacity – SBT2011S | N/A |
| Fingerprint Capacity – SBT2022S | 3,000 Fingerprints |
| Log Capacity – SBT2000S | N/A |
| Log Capacity – SBT2011S | 100,000 Logs |
| Log Capacity – SBT2022S | 100,000 Logs |
| Power Requirements | AC 110V / 220V, 50 / 60Hz |
| Lane Width | 800 mm; Optional up to 920 mm |
| Infrared Sensor | Bottom-Mounted Sensitive Infrared Sensor |
| LED Indicator | Supported |
| Cabinet Material | Cold-Rolled Sheet; Optional SUS304 Stainless Steel |
| Lid Material | Acrylic |
| Barrier Material | Tempered Glass; Optional Stainless Steel or Acrylic |
| Barrier Movement | Swing |
| Gate Opening / Closing Time | Approximately 3 Seconds (Default) |
| Emergency Mode | Supported |
| Working Temperature | -15°C to 60°C |
| Working Humidity | 20% to 93% RH, Non-condensing |
| Working Environment | Indoor / Outdoor if Sheltered |
| Dimensions (L × W × H) | 202 × 187 × 1109 mm |
| Packing Dimensions (L × W × H) | 280 × 280 × 1160 mm |
| Weight | 24 kg |
| Packed Weight | 41 kg |
| MCBF | 5 Million Cycles |
| Warranty | 1 Year |
Frequently Asked Questions
The standard lane width is 800 mm, with an optional configuration of up to 920 mm.
The SBT2022S supports both RFID and fingerprint authentication and has a fingerprint capacity of up to 3,000 templates.
Both models support a card capacity of up to 10,000 cards.
During a power outage, the swing barrier can be manually pushed open, allowing users to leave the controlled area safely.
Yes. Its wide 800 mm passage lane is specifically designed to support applications requiring wider pedestrian access, including wheelchair users and people with physical disabilities.
Yes. The SBT2000S can be used outdoors when installed in a sheltered environment protected from direct exposure to weather conditions.

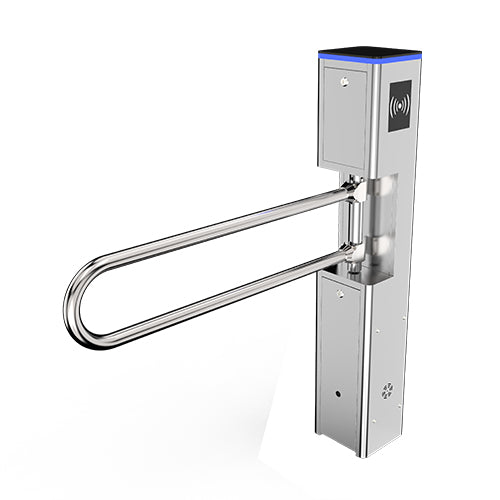

Tempered glass is the standard barrier material, while stainless steel and acrylic barriers are available as optional configurations.
The SBT2000S Series has an MCBF rating of up to 5 million cycles and is designed for reliable long-term entrance control operation.
