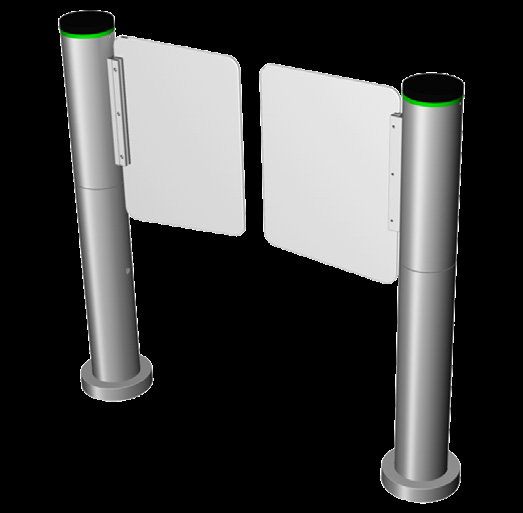

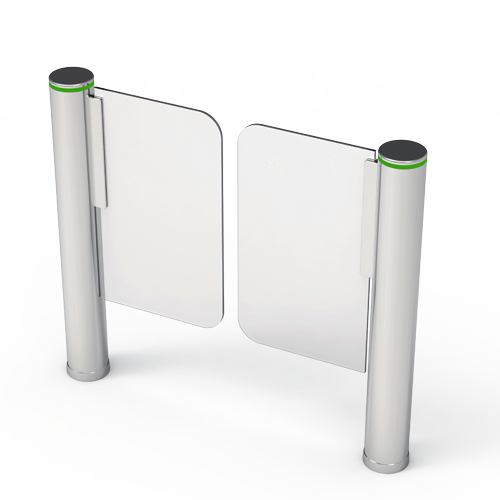

ZKTeco SBT3000S Swing Barrier Turnstile

ZKTeco SBT3000S Swing Barrier Turnstile — Stainless Steel Pedestrian Access Gate

The ZKTeco SBT3000S Swing Barrier Turnstile is a heavy-duty Swing Barrier built for high-throughput entrances across India. Specifically, the brushed stainless-steel housing handles humid coastal air, dusty industrial zones and round-the-clock metro use without rusting or jamming. Plus, every ZKTeco SBT3000S Swing Barrier Turnstile ships with a 12-month manufacturer warranty.

Why integrators specify the SBT3000S Swing Barrier Turnstile

⚡ 25–30 people per minute — smooth mechanical rotation keeps shift-change and lunch-hour queues moving without manual intervention.

🔒 Hard stop on unauthorised entry — the arms only release when a valid credential is presented. Consequently, tailgating and unauthorised entries past reception become physically impossible.

🛠️ Two-installer setup — plug-and-play wiring with 12 V/24 V DC power. Most installations are commissioned in under half a day.

🛡️ Fail-safe in emergencies — arms drop down automatically during a power cut or fire alarm, ensuring fast evacuation in line with Indian fire-safety norms.

🎯 Universal reader support — pair it with RFID, fingerprint, ZKTeco face recognition, QR-code or biometric panels. Therefore, you're never locked into one credential type.

🌡️ Wide operating range — runs reliably from -10 °C to +55 °C, covering everything from Delhi summers to Himachal winters.

Where this fits best

IT parks · Stadiums & sports arenas · Hospitals · Data centers · Shopping malls · Metro & railway stations · Logistics yards

Specifications at a glance

• Model: ZKTeco SBT3000S Swing Barrier Turnstile
• Category: Swing Barrier
• Housing: Brushed stainless steel (304-grade)
• Throughput: 25–30 people per minute
• Direction: Bi-directional pedestrian flow
• Reader interface: Dry contact / Wiegand (RFID, fingerprint, face, QR)
• Power supply: AC 100–240 V or 12 V/24 V DC
• Operating temperature: -10 °C to +55 °C
• Fail-safe: Arms drop automatically during power loss
• Warranty: 12-month manufacturer warranty

Frequently asked questions

Q. Can this turnstile be used outdoors?
The standard SBT3000S Swing Barrier Turnstile is designed for indoor lobbies, reception areas and protected entrances. For exposed outdoor installations such as factory gates or stadium entries, we recommend either the IP-rated outdoor variant or a weatherproof shelter over the unit.

Q. What happens during a power cut?
The arms drop down automatically during a power failure, allowing free pedestrian passage. As a result, emergency evacuation is never blocked — keeping your installation compliant with Indian fire-safety norms.

Q. Does it integrate with our existing access-control software?
Yes. The SBT3000S Swing Barrier Turnstile is controller-agnostic and accepts dry-contact or Wiegand input. Consequently, it integrates with ZKBio CVSecurity, ZKBio Access, BioTime, and most third-party access-control platforms.

Q. Which readers and credentials does it support?
The SBT3000S Swing Barrier Turnstile works with the full ZKTeco reader range — RFID (EM/Mifare/HID), fingerprint, face recognition and QR code. Plus, any third-party reader with a standard Wiegand output is supported, so existing credentials can be reused.
