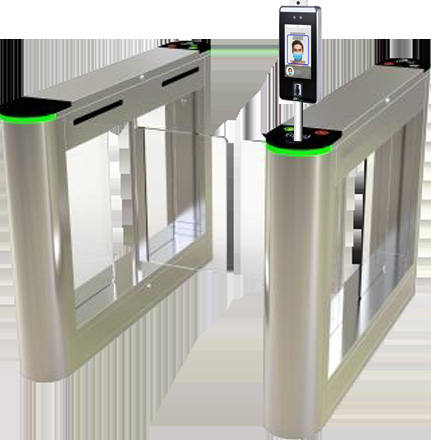

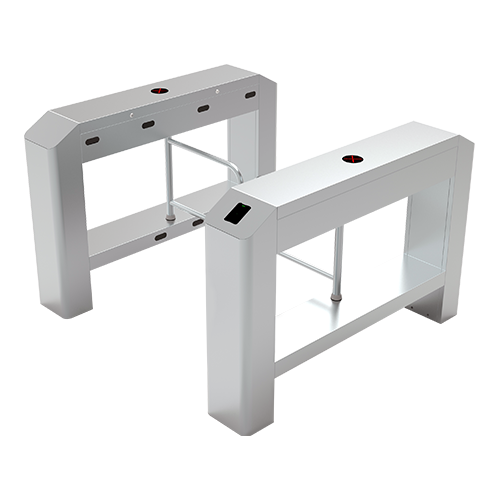

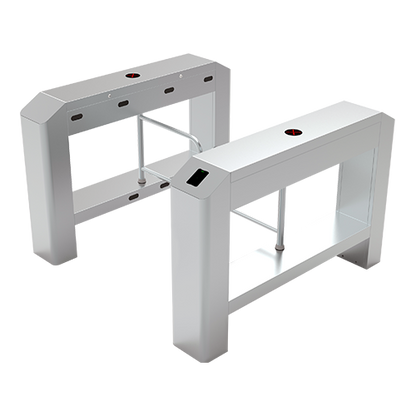

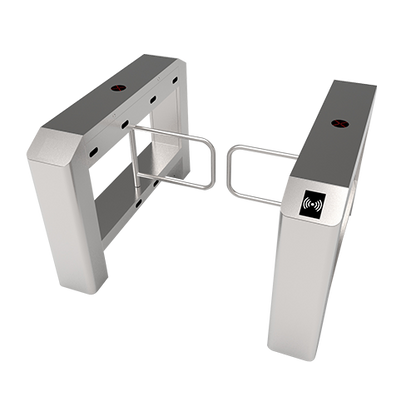

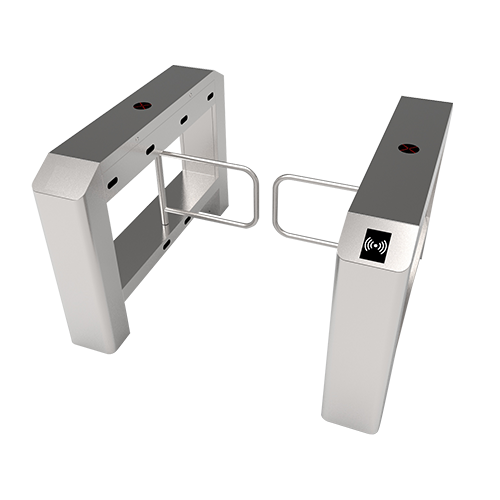

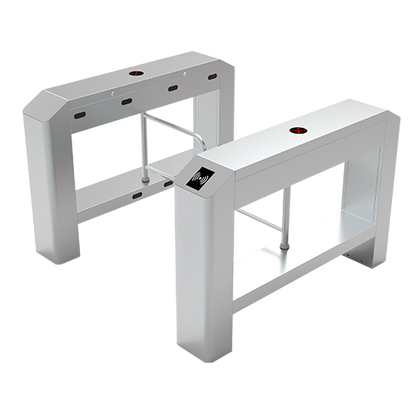

ZKTeco SBTL3000 Swing Barrier Turnstile
The ZKTeco SBTL3000 is an intelligent swing barrier access control device designed to provide secure, efficient and reliable pedestrian access management. It integrates mechanical, electronic and microprocessor control systems with various access reading and writing technologies to deliver coordinated intelligent control of entry and exit points.
With a durable SUS304 stainless steel chassis, DC brushless motor and multiple infrared detection points, the SBTL3000 provides smooth operation, reliable safety protection and efficient pedestrian throughput. The system can be configured with different access control readers and supports face recognition device integration.
The SBTL3000 is suitable for offices, commercial buildings, transportation facilities, educational institutions and other locations requiring controlled pedestrian access.
Key Features
- Intelligent swing barrier access control system.
- Integrated mechanical, electronic and microprocessor control technology.
- Compatible with different access control reading and writing technologies.
- Durable SUS304 stainless steel chassis construction.
- DC brushless motor for reliable barrier movement.
- Channel width adjustable from 600 mm to 900 mm.
- Four pairs of infrared sensors for pedestrian detection and safety.
- 10 reserved infrared installation positions for future expansion.
- Standard face recognition hole plug included.
- Normally closed mode supports throughput of up to 30 persons per minute.
- Normally open mode supports throughput of up to 50 persons per minute.
- Built-in internal wiring trough for simplified installation.
- Stainless steel maintenance wet wipes and expansion bolts included.
- Available in single-channel and dual-movement configurations.
- Supports RS232 and optional RS485 communication.
- Real-time alarm and directional guidance interfaces for controlled access management.
Product Advantages
- Combines mechanical, electronic and intelligent microprocessor control in one access gate.
- High-quality SUS304 stainless steel construction provides durability for demanding installations.
- DC brushless motor delivers reliable and efficient operation.
- Multiple infrared sensors enhance pedestrian detection and safety.
- Flexible channel width supports different installation requirements.
- Face recognition integration capability provides flexibility for biometric access control.
- High pedestrian throughput makes the SBTL3000 suitable for busy entrances.
- Internal wiring management simplifies installation and maintenance.
- Available in single-main/subunit and dual-movement configurations.
Access Control & Integration
Multiple Reader Integration
The SBTL3000 can be configured with different types of access control reading and writing devices, allowing it to integrate with the authentication technology required for a particular installation.
Face Recognition Integration
A standard face recognition hole plug is included, providing a prepared installation point for compatible face recognition access control devices.
Communication
The turnstile supports RS232 communication, with RS485 available as an optional communication interface.
Safety & Security
- Four pairs of infrared correlation sensors are provided as standard.
- Up to 10 reserved infrared installation positions are available for expansion.
- Reliable safety protection mechanisms help manage pedestrian movement through the access lane.
- Real-time alarm system supports controlled access management.
- Directional guidance interfaces assist users during passage.
Technical Specifications
| Specification | Details |
|---|---|
| Model Name | SBTL3000 (1 Main Unit + 1 Subunit) / SBTL3200 (1 Dual-Movement Unit) |
| Product Type | Swing Barrier Turnstile / Intelligent Access Control Gate |
| Chassis Material | SUS304 Stainless Steel, 1.2 mm / 0.8 mm |
| Communication | RS232, RS485 Optional |
| Motor | DC Brushless Motor |
| Channel Width | 600 mm – 900 mm |
| Face Recognition Hole | Standard Face Recognition Hole Plug Included |
| Infrared Correlation | 4 Pairs |
| Reserved Infrared Positions | 10 Installation Positions, Expandable on Demand |
| Passing Speed | Normally Closed: 30 Persons/Minute; Normally Open: 50 Persons/Minute |
| Side Cover Plate | Single Channel: 4 Pieces; Dual Movement: 2 Pieces |
| Internal Wiring | Internal Wiring Trough |
| Gross Weight - Main Unit | Bare: 28.5 kg; Packaged: 35.5 kg |
| Gross Weight - Slave Unit | Bare: 27 kg; Packaged: 34 kg |
| Gross Weight - Dual-Movement Unit | Bare: 33.5 kg; Packaged: 40.5 kg |
Model Configurations
SBTL3000
The SBTL3000 configuration consists of 1 main unit + 1 subunit and is designed for standard single-channel swing barrier installations.
SBTL3200
The SBTL3200 configuration uses 1 dual-movement unit, providing an alternative configuration for installations requiring dual-movement operation.
Standard Configurations
- SUS304 stainless steel chassis.
- DC brushless motor.
- Four pairs of infrared correlation sensors.
- Standard face recognition hole plug.
- Internal wiring trough.
- Stainless steel maintenance wet wipes.
- Expansion bolts.
- Certificate of conformity.
Applications
- Corporate Offices
- Commercial Buildings
- Educational Institutions
- Transportation Facilities
- Government Buildings
- Industrial Facilities
- Secure Entrance Areas
- Pedestrian Access Control Points
- High-Traffic Building Entrances
- Biometric Access Control Installations
Why Choose ZKTeco SBTL3000?
- Intelligent swing barrier design for secure pedestrian access.
- Durable SUS304 stainless steel construction.
- Reliable DC brushless motor technology.
- Four pairs of infrared sensors provide effective pedestrian detection.
- Flexible 600–900 mm channel width.
- Supports face recognition integration.
- High throughput of up to 50 persons per minute in normally open mode.
- Supports RS232 and optional RS485 communication.
- Flexible SBTL3000 and SBTL3200 configurations.
- Designed for easy installation and maintenance.
Package / Included Accessories
- Stainless Steel Maintenance Wet Wipes
- Expansion Bolts
- Certificate of Conformity
- Standard Face Recognition Hole Plug
