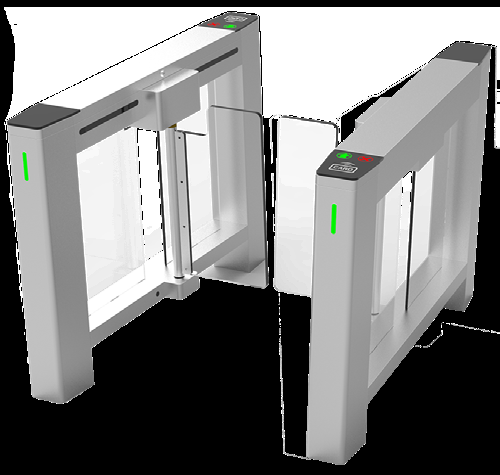

ZKTeco SBTL500 Swing Barrier Turnstile
ZKTeco SBTL500 Swing Barrier Turnstile
Couldn't load pickup availability
Product Details
ZKTeco SBTL500 – Single Lane Swing Barrier Turnstile
The ZKTeco SBTL500 is a single lane swing barrier turnstile designed to provide smooth, silent and reliable pedestrian access control. Its compact and elegant design, combined with durable stainless steel construction, makes it suitable for modern security entrances and high-quality access control installations.
The SBTL500 features a swing barrier mechanism with an opening time of approximately 0.6 seconds and an opening noise level of no more than 30 dB. With a maximum throughput of up to 30 people per minute, it provides efficient pedestrian flow while maintaining controlled access.
Constructed with a SUS304 stainless steel cabinet and lid, the SBTL500 provides long-lasting durability. The turnstile also supports automatic barrier unlocking during power outages, LED status indication and integration with card or fingerprint access control readers.
Key Features
- Single lane swing barrier turnstile design.
- SUS304 stainless steel construction for enhanced durability.
- Smooth and silent operation with opening noise of ≤30 dB.
- Fast barrier opening time of approximately 0.6 seconds.
- Maximum throughput of up to 30 people per minute.
- Automatic barrier unlocking during power outages.
- LED status indicator for clear user guidance.
- Integrated card or fingerprint reader options.
- All-smooth finish with no exposed screws.
- High-quality electrical components for reliable operation.
- Easy-to-maintain simplified structure and connections.
- Plug-and-play design for simplified installation.
Product Advantages
- Durable SUS304 stainless steel casework provides long-lasting performance.
- Low-noise operation is suitable for offices and other indoor environments.
- Fast 0.6-second opening time helps improve pedestrian flow.
- Automatic emergency unlocking provides convenient evacuation during power outages.
- Integrated access control reader options help reduce installation time and cost.
- Simplified internal structure makes maintenance easier.
- Compact single-lane design is suitable for space-conscious installations.
- Low power consumption helps reduce operating costs.
- Factory-tested turnstile and reader integration help simplify deployment.
Reliability & Durability
SUS304 Stainless Steel Construction
The SBTL500 uses a SUS304 stainless steel cabinet and barrier assembly to provide a durable and professional solution for demanding access control environments.
High-Quality Electrical Components
High-quality electrical components are used to support reliable and stable turnstile operation during continuous access control applications.
5 Million Cycle Reliability
With an MCBF rating of up to 5 million cycles, the SBTL500 is designed for long-term and frequent pedestrian access applications.
Safety Features
Automatic Emergency Unlocking
The swing barriers automatically unlock during a power outage, helping provide a clear passage route during emergency situations.
Safe and Ergonomic Design
The SBTL500 features smooth finished surfaces without exposed screws, while its ergonomic design helps make card and fingerprint authentication simple and convenient for users.
LED Status Indicator
Integrated LED indicators provide clear visual status information and help users understand the access condition of the lane.
Built-in Reader Integration
The SBTL500 can be supplied with integrated access control readers according to customer requirements. Card or fingerprint authentication readers can be integrated into the turnstile, helping reduce installation time and associated installation costs.
- Card reader integration available.
- Fingerprint reader integration available.
- Factory-tested turnstile and associated access control readers.
- Plug-and-play installation approach.
- Simplified structure and connections.
- Easy maintenance and monitoring.
Safety & Security Features
- Automatic barrier unlocking during power outages.
- Swing barrier access control.
- LED status indication.
- Smooth finish without exposed screws.
- Card authentication support.
- Fingerprint authentication support.
- Medium security level.
- Controlled single-lane pedestrian access.
Design & Construction
- SUS304 stainless steel cabinet.
- SUS304 stainless steel barrier support structure.
- Acrylic barrier.
- SUS304 stainless steel and acrylic lid.
- 650 mm standard lane width.
- Compact single-lane configuration.
- Smooth finished exterior design.
Applications
- Corporate Offices
- Commercial Buildings
- Educational Institutions
- Factories and Industrial Facilities
- Government Buildings
- Financial Institutions
- Hotels and Hospitality Facilities
- Residential Buildings
- Secure Building Entrances
- Access Control Installations
- Indoor Facilities
- Sheltered Outdoor Locations
Technical Specifications
| Specification | Details |
|---|---|
| Model Name | SBTL500 |
| Product Type | Single Lane Swing Barrier Turnstile |
| Barrier Material | Acrylic |
| Barrier Movement | Swing |
| Cabinet Material | SUS304 Stainless Steel |
| Lid Material | SUS304 Stainless Steel + Acrylic |
| Dimensions (L × W × H) | 1360 × 280 × 980 mm |
| Lane Width | 650 mm |
| Emergency Mode | Supported |
| LED Indicator | Supported |
| MCBF | 5 Million Cycles |
| Maximum Throughput | Up to 30 People per Minute |
| Opening Time | 0.6 Seconds |
| Opening Noise | ≤ 30 dB |
| Power Requirements | AC 100–120V / 200–240V, 50/60Hz |
| Security Level | Medium |
| Working Environment | Indoor / Outdoor if Sheltered |
| Working Humidity | 5% – 90% RH, Non-condensing |
| Working Temperature | -20°C to 70°C |
Performance
Fast Operation
The SBTL500 provides an opening time of approximately 0.6 seconds, supporting efficient pedestrian movement through the controlled lane.
Low Noise
With an opening noise level of ≤30 dB, the turnstile provides quiet operation suitable for offices, commercial buildings and other noise-sensitive environments.
High Throughput
The SBTL500 supports a maximum throughput of up to 30 people per minute, depending on the authentication method and operating conditions.
Frequently Asked Questions
The SBTL500 is a single lane swing barrier turnstile designed for controlled and efficient pedestrian access.
Yes. The SBTL500 supports emergency mode, with the barriers designed to unlock automatically during a power outage.
The standard lane width is 650 mm.
The SBTL500 provides a maximum throughput of up to 30 people per minute, depending on the authentication method and operating conditions.
The SBTL500 has an opening time of approximately 0.6 seconds.
The opening noise level is specified at ≤30 dB, providing smooth and quiet operation.
Yes. The SBTL500 can be installed outdoors when used in a sheltered environment. It supports a working temperature range of -20°C to 70°C and humidity of 5% to 90% RH, non-condensing.
The SBTL500 can be supplied with integrated access control readers based on customer requirements, including card and fingerprint authentication options.
