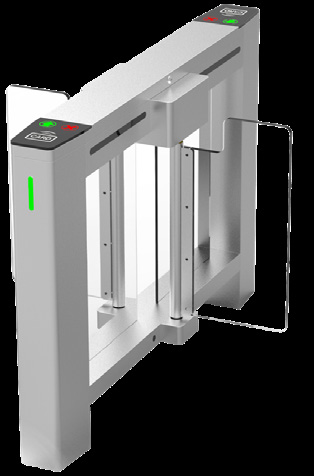

ZKTeco SBTL520 – Single-Lane Swing Barrier Turnstile
The ZKTeco SBTL520 is a single-lane swing barrier turnstile designed to provide smooth, silent, and reliable pedestrian access control. Its compact and elegant design combines convenient passage with dependable security, while its stainless steel construction provides excellent durability for long-term use.
The SBTL520 barriers remain locked under normal conditions, preventing unauthorized access to the secured side. Once the integrated RFID card or fingerprint reader positively verifies an authorized user, the barriers automatically swing open to allow passage.
During a power outage or emergency, the barrier can be pushed through easily to allow users to exit to safety. The SBTL520 also features emergency retracting barriers, simplified construction, and factory-integrated access control readers for easier installation and maintenance.
Key Features
The SBTL520 uses SUS304 stainless steel casework to provide a strong, durable, and long-lasting turnstile structure.
The swing barrier is designed for smooth and quiet operation, with an opening time of approximately 0.6 seconds and low operating noise.
The SBTL520 is designed to draw very little power while providing reliable access control operation.
The series can be supplied with an integrated RFID card or fingerprint access control reader according to the customer's preferred configuration, reducing installation time and cost.
The turnstile and associated access control readers are factory-tested before shipment, providing a ready-to-install solution with simplified commissioning.
The barriers automatically retract during emergencies, while the barrier can also be pushed through during a power outage to allow users to exit safely.
The smooth finish and absence of exposed screws provide a clean and safe design. The ergonomic reader arrangement makes card and fingerprint authentication simple and convenient.
The simplified structure and connections make the SBTL520 easy to install, service, and maintain.
With an MCBF of up to 5 million cycles, the SBTL520 is designed for reliable long-term access control operation.
Authentication Options
- RFID Card Authentication
- Fingerprint Authentication
Built-In Reader Integration
- Integrated RFID Reader Option
- Integrated Fingerprint Reader Option
- Factory-Tested Reader and Turnstile Configuration
- Plug-and-Play Installation
- Reduced Installation Time and Cost
Safety & Security Features
- Normally locked barrier position
- Automatic barrier opening after valid authentication
- Emergency barrier retraction
- Manual push-through during power outage
- Smooth barrier surfaces
- No exposed screws
- Ergonomic authentication design
- Medium security level
Applications
- Corporate Offices
- Commercial Buildings
- Factories and Industrial Facilities
- Educational Institutions
- Government Buildings
- Hotels
- Reception Areas
- Employee Entrances
- Access-Controlled Facilities
- Indoor Locations
- Sheltered Outdoor Installations
Specifications
| Parameter | Specification |
|---|---|
| Model | SBTL520 |
| Product Type | Single-Lane Swing Barrier Turnstile |
| Power Requirements | AC 100–120V / 200–240V, 50 / 60Hz |
| Working Temperature | -20°C to 70°C |
| Working Humidity | 5% to 90% RH, Non-condensing |
| Working Environment | Indoor / Outdoor if Sheltered |
| Maximum Throughput | 30 People per Minute |
| Lane Width | 650 mm |
| Dimensions (L × W × H) | 1360 × 280 × 980 mm |
| LED Indicator | Supported |
| Cabinet Material | SUS304 Stainless Steel |
| Lid Material | SUS304 Stainless Steel + Acrylic |
| Barrier Material | Acrylic |
| Barrier Movement | Swing |
| Emergency Mode | Supported |
| Security Level | Medium |
| MCBF | 5 Million Cycles |
| Opening Time | 0.6 Seconds |
| Opening Noise | ≤30 dB |
Frequently Asked Questions
The SBTL520 is a single-lane swing barrier turnstile designed for secure and convenient pedestrian access control.
The SBTL520 can be supplied with an integrated RFID card reader or fingerprint reader according to the required access control configuration.
When an integrated RFID or fingerprint reader positively verifies a valid user, the swing barriers automatically open to allow passage to the secured side.
During a power outage, users can push through the barrier easily to exit to safety. The emergency design also supports automatic barrier retraction during emergencies.
Yes. The SBTL520 can be used outdoors when installed in a sheltered environment. It is also suitable for indoor installations.
The specified opening time is approximately 0.6 seconds, with a maximum throughput of up to 30 people per minute depending on authentication and user flow conditions.
The turnstile uses SUS304 stainless steel construction and has an MCBF rating of up to 5 million cycles for reliable long-term operation.
Yes. The integrated reader configuration is factory-tested before shipment and provides a plug-and-play approach that simplifies installation and reduces commissioning time and expense.
