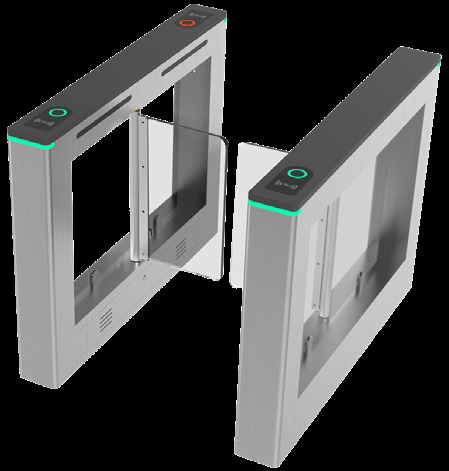

ZKTeco SBTL700 Swing Barrier Turnstile

ZKTeco SBTL700 Swing Barrier Turnstile — Stainless Steel Pedestrian Access Gate

Searching for a dependable Swing Barrier that won't quit after a year of heavy foot traffic? The ZKTeco SBTL700 Swing Barrier Turnstile is a stainless-steel pedestrian access gate engineered for Indian offices, factories, metro stations and educational campuses. Moreover, it pairs seamlessly with RFID, fingerprint and face-recognition readers — giving you a single hardware platform that scales as the building grows.

Why integrators specify the SBTL700 Swing Barrier Turnstile

🔇 Quiet operation — well below typical office ambient noise, so reception areas stay calm even at peak throughput.

🔔 Tamper & intrusion alarms — built-in alerts trigger if the cabinet is forced open or someone attempts to climb over.

🛡️ Fail-safe in emergencies — arms drop down automatically during a power cut or fire alarm, ensuring fast evacuation in line with Indian fire-safety norms.

🛠️ Two-installer setup — plug-and-play wiring with 12 V/24 V DC power. Most installations are commissioned in under half a day.

⚡ 25–30 people per minute — smooth mechanical rotation keeps shift-change and lunch-hour queues moving without manual intervention.

🔒 Hard stop on unauthorised entry — the arms only release when a valid credential is presented. Consequently, tailgating and unauthorised entries past reception become physically impossible.

Where this fits best

Five-star hotels · Hospitals · Government buildings · Logistics yards · Corporate offices · Metro & railway stations · Schools and colleges

Specifications at a glance

• Model: ZKTeco SBTL700 Swing Barrier Turnstile
• Category: Swing Barrier
• Housing: Brushed stainless steel (304-grade)
• Throughput: 25–30 people per minute
• Direction: Bi-directional pedestrian flow
• Reader interface: Dry contact / Wiegand (RFID, fingerprint, face, QR)
• Power supply: AC 100–240 V or 12 V/24 V DC
• Operating temperature: -10 °C to +55 °C
• Fail-safe: Arms drop automatically during power loss
• Warranty: 12-month manufacturer warranty

Frequently asked questions

Q. Does it integrate with our existing access-control software?
Yes. The SBTL700 Swing Barrier Turnstile is controller-agnostic and accepts dry-contact or Wiegand input. Consequently, it integrates with ZKBio CVSecurity, ZKBio Access, BioTime, and most third-party access-control platforms.

Q. Is installation included with the purchase?
On-site installation across Delhi-NCR is available directly through our team, and our authorised partners cover the rest of India. Typical installation takes 4–6 hours per lane.

Q. What warranty does it come with?
Every SBTL700 Swing Barrier Turnstile ships with a 12-month manufacturer warranty from the invoice date. Furthermore, our team provides phone, WhatsApp and remote support throughout the warranty period.

Q. What happens during a power cut?
The arms drop down automatically during a power failure, allowing free pedestrian passage. As a result, emergency evacuation is never blocked — keeping your installation compliant with Indian fire-safety norms.
