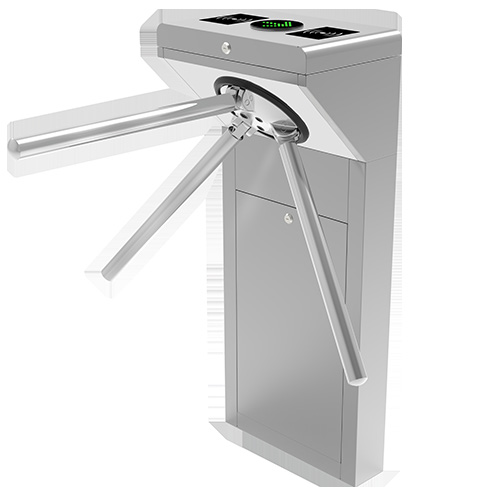

ZKTeco TS1000 Plus Series – Vertical Tripod Turnstile
The ZKTeco TS1000 Plus Series is a compact vertical tripod turnstile designed to provide reliable and efficient pedestrian access control. Its space-saving vertical design requires a smaller footprint compared with many other turnstile configurations, making it suitable for entrances where installation space is limited.
Constructed from SUS304 stainless steel, the TS1000 Plus provides excellent durability and a professional appearance for long-term access control applications. The turnstile supports rotating barrier movement, anti-tailgating protection, emergency drop-arm operation and multiple credential options through compatible access control readers.
The TS1000 Plus can be integrated with RFID readers, fingerprint readers, QR readers and compatible access control controllers. With a throughput of up to 25 passengers per minute, IPX4 protection and support for indoor or sheltered outdoor environments, it is suitable for a wide range of pedestrian access control installations.
Key Features
The vertical tripod configuration provides a compact footprint, making the TS1000 Plus suitable for locations where installation space is limited.
The cabinet, chassis and door leaf are constructed from SUS304 stainless steel for long-lasting durability and reliable operation.
Supports under-mount RFID and fingerprint readers, with QR reader options available for flexible authentication and access control integration.
The TS1000 Plus provides a flow rate of up to 25 passengers per minute for efficient movement through controlled entrances.
Built-in anti-tailgating functionality helps prevent unauthorized users from following an authorized user through the lane.
The tripod arm automatically drops during power failure, helping provide an unobstructed passage during emergency situations.
A voltage-free contact input is provided for fire alarm fail-state operation and emergency access integration.
Wireless and wired remote control options are available for convenient manual operation and access management.
The TS1000 Plus is supplied pre-assembled to simplify installation and reduce on-site setup requirements.
Authentication & Accessibility Options
- Under-mount RFID reader support
- Pro ID Series RFID readers
- KR Series RFID readers
- Under-mount fingerprint reader support
- FR1200 fingerprint reader
- FR1500 fingerprint reader
- QR reader option
- Wireless remote control option
- Wired remote control option
Safety & Security Features
- Anti-tailgating protection
- Automatic drop arm during power failure
- Voltage-free contact input for fire alarm fail state
- Emergency mode support
- Fire alarm relay input
- LED visual status indicators
- Internal buzzer audio indicator
Controller & Integration
- Compatible with ZKTeco C3-200 controller
- Compatible with ZKTeco InBio 260 Pro controller
- Third-party controller support
- Fire alarm relay port
- RS485 communication port
- Access mode configuration
- Door open duration configuration
LED & Visual Indicators
- Steady Green: Normal use
- Steady Red: Door closed
- LED indicator supported
- Internal buzzer provides audio indication
Applications
- Corporate Offices
- Commercial Buildings
- Factories and Industrial Facilities
- Educational Institutions
- Government Buildings
- Hotels and Hospitality Facilities
- Residential Buildings
- Warehouses
- Transportation Facilities
- Gyms and Fitness Centers
- Secure Entry Points
- Indoor and Sheltered Outdoor Locations
Specifications
| Parameter | Specification |
|---|---|
| Model Name | TS1000 Plus Series |
| Product Type | Vertical Tripod Turnstile |
| Lane Type | Single Lane |
| Accessibility | Wireless Remote Control, Wired Remote Control, QR Reader |
| Application Environment | Indoor / Outdoor if Sheltered |
| Audio Indicator | Internal Buzzer |
| Barrier Movement | Rotating |
| Cabinet Material | SUS304 Stainless Steel, T=1.2 mm |
| Chassis Material | SUS304 Stainless Steel, T=1.2 mm |
| Chassis Colour | Silver Grey |
| Door Leaf Material | SUS304 Stainless Steel |
| Lid Material | SUS304 Stainless Steel |
| Credential Options | Under-Mount RFID Reader, Under-Mount Fingerprint Reader, QR Reader |
| RFID Reader Compatibility | Pro ID Series, KR Series |
| Fingerprint Reader Compatibility | FR1200 / FR1500 |
| Controller | C3-200, InBio 260 Pro or Third-Party Devices |
| Flow Rate | 25 Passengers per Minute |
| Lane Width | 550 mm |
| Footprint | 100 × 420 mm |
| Dimensions (L × W × H) | 780 × 750 × 1000 mm |
| Product Parts with Packaging (L × W × H) | 380 × 520 × 1100 mm |
| Emergency Mode | Supported |
| Fire Signal | Input for Voltage-Free Contact |
| Fire Alarm Port | Relay ×1 |
| Motherboard Communication | Fire Alarm Port (Relay) ×1, RS485 Port ×1 |
| Motherboard Function | Door Open Duration, Access Mode |
| LED Indicator | Supported |
| MCBF | 2 Million Cycles |
| MTTR | Less than 60 Minutes |
| Noise Level | < 65 dB |
| Power Rating | 10 VA Standby / 40 VA Operation |
| Power Requirements | 110V/220V AC @ 50–60 Hz, DC 12V |
| Ingress Protection Rating | IPX4 |
| Security Features | Anti-Tailgating |
| Safety Features | Voltage-Free Contact Input for Fire Alarm Fail State, Automatic Drop Arm During Power Off |
| Security Level | Medium |
| Site Preparation | Flat & Level Finished Floor; Base Plate Optional for Unfinished Floor |
| Supported Software | ZKBio CVSecurity, compatible when connected to the control panel |
| Product Delivery | Pre-Assembled |
| Weight | 20 kg |
| Weight with Packing | 25 kg |
| Working Temperature | -20°C to 70°C |
| Working Humidity | 20% to 80% RH, Non-condensing |
| Certifications | CE, FCC, UKCA (Pending), ISO 9001 |
Software & Integration
- ZKBio CVSecurity
- Compatible with ZKTeco C3-200 access controller
- Compatible with ZKTeco InBio 260 Pro access controller
- Third-party controller integration supported
- Software compatibility requires connection to the supported control panel
Why Choose ZKTeco TS1000 Plus?
- Compact vertical tripod design saves valuable installation space.
- Durable SUS304 stainless steel construction.
- Supports RFID, fingerprint and QR-based access control options.
- Provides up to 25 passengers per minute throughput.
- Automatic drop-arm function improves emergency safety.
- Anti-tailgating protection enhances access security.
- IPX4 protection for indoor and sheltered outdoor applications.
- Supports remote control for convenient operation.
- Pre-assembled design simplifies installation.
- Compatible with ZKTeco and third-party access control controllers
