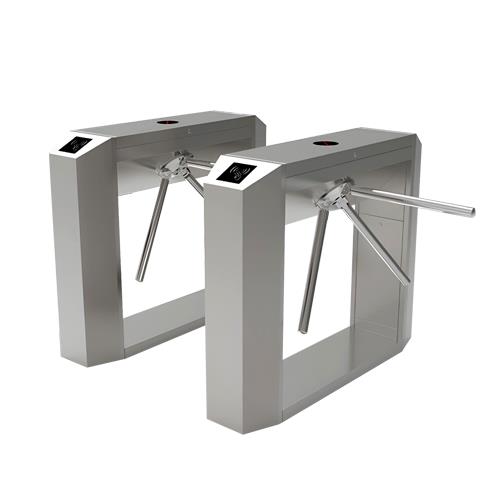

ZKTeco TS200 Pro Tripod Turnstile
ZKTeco TS200 Pro Tripod Turnstile
Couldn't load pickup availability
Product Details
TS200 Pro – Bi-Directional Tripod Turnstile
The ZKTeco TS200 Pro is a robust and cost-effective bi-directional tripod turnstile designed to provide secure and efficient pedestrian access control. Constructed with a durable SUS304 stainless steel housing and barrier, it combines reliability, low power consumption, and easy installation for a wide range of access control applications.
The TS200 Pro features an arm drop function for emergency situations, LED pictograms for intuitive user guidance, and anti-tailgating support for enhanced security. Its ergonomic design makes card authentication fast and convenient, while factory-tested components ensure reliable plug-and-play operation.
Key Features
High-quality SUS304 stainless steel housing, cabinet, lid, and barrier provide durability and reliable long-term operation.
Supports controlled pedestrian movement in both directions with a rotating tripod barrier for efficient access management.
The arm drop function enables emergency passage and supports safe evacuation when required.
Provides a maximum throughput of up to 30 people per minute, helping maintain smooth pedestrian flow.
Clear LED indicators provide intuitive visual guidance and help users understand access and passage status.
Supports anti-tailgating functionality to help prevent unauthorized users from following authorized users through the lane.
Designed for efficient operation with low power requirements, helping reduce ongoing operating costs.
The plug-and-play design simplifies installation, maintenance, and monitoring, helping reduce total cost of ownership.
The ergonomic turnstile design makes card authentication fast and simple for users while maintaining controlled access.
The TS200 Pro and associated access control readers are factory-tested before shipping to support reliable installation and operation.
Security Features
- Bi-directional access control
- Anti-tailgating support
- Emergency arm drop function
- LED access status indicators
- Controlled pedestrian passage
- Medium security level
Design & Installation Benefits
- SUS304 stainless steel construction
- Compact 580 mm lane width
- Easy and simple installation
- Easy maintenance and monitoring
- Low power consumption
- Wide range of compatible accessories
- Plug-and-play installation concept
Applications
- Corporate Offices
- Commercial Buildings
- Factories and Industrial Facilities
- Educational Institutions
- Government Buildings
- Transportation Facilities
- Fitness Centers
- Residential and Community Entrances
- Indoor and Sheltered Outdoor Locations
Specifications
| Parameter | Specification |
|---|---|
| Model | TS200 Pro |
| Product Type | Bi-Directional Tripod Turnstile |
| Barrier Material | SUS304 Stainless Steel |
| Barrier Movement | Rotation |
| Cabinet Material | SUS304 Stainless Steel |
| Lid Material | SUS304 Stainless Steel |
| Lane Width | 580 mm |
| Dimensions (L × W × H) | 1200 × 280 × 980 mm |
| Packed Dimensions (L × W × H) | 1275 × 370 × 1063 mm |
| Maximum Throughput | 30 People per Minute |
| Emergency Mode | Yes – Arm Drop Function |
| MCBF | 2 Million Cycles |
| Power Requirements | AC 110V / 220V, 50/60Hz |
| Security Level | Medium |
| Working Environment | Indoor / Outdoor if Sheltered |
| Working Humidity | 5% – 80% |
| Working Temperature | -28°C to 60°C |
Frequently Asked Questions
The TS200 Pro is a bi-directional tripod turnstile with a rotating barrier mechanism designed for controlled pedestrian access.
Yes. The TS200 Pro features an emergency arm drop function that allows the tripod arms to drop when emergency passage is required.
The TS200 Pro can provide a maximum throughput of up to 30 people per minute, depending on the authentication and access control configuration.
Yes. The TS200 Pro can be installed outdoors when placed in a sheltered environment. Its specified working temperature is -28°C to 60°C with 5% to 80% working humidity.
The cabinet, barrier, and lid are constructed from SUS304 stainless steel, providing a durable and corrosion-resistant structure for access control applications.
Yes. The TS200 Pro supports anti-tailgating to help prevent unauthorized users from following an authorized user through the access lane.
The TS200 Pro provides a standard lane width of 580 mm.
