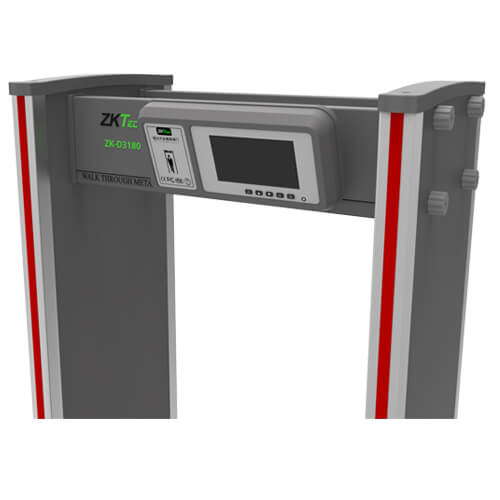

ZKTeco ZK-D3180 Walk Through Metal Detector

ZKTeco ZK-D3180 Walk Through Metal Detector

Rs. 102,408.00
Rs. 122,890.00 Rs. 102,408.00
Sale Sold out
Product Details

ZK-D3180 Walk Through Metal Detector

The ZK-D3180 is a high-performance walk-through metal detector designed for precise and reliable security screening. It supports up to 33 detection zones and 500 adjustable sensitivity levels, allowing accurate detection of ferrous and non-ferrous metal threats.

The device features a 7-inch LCD display, infrared detection technology, people counting, separate inbound and outbound sensitivity settings, and clear threat indication through synchronized sound and LED alerts. It can also be integrated with entrance gates through relay output and supports real-time monitoring and data logging through compatible software.

Key Features

  • Up to 33 adjustable detection zones.
  • 500 adjustable sensitivity levels.
  • 7-inch LCD display for easy setup and operation.
  • Detection of ferrous and non-ferrous metal weapons.
  • Separate sensitivity levels for inbound and outbound directions.
  • People entering and leaving can be counted separately.
  • Synchronous sound alert and LED threat indication.
  • More than 40 persons per minute throughput.
  • Automatic Detection Mode and Infrared Detection Mode.
  • Relay output for entrance gate linkage.
  • Network interface for communication and monitoring.
  • Remote control support.
  • 24/7 continuous operation capability.

Product Advantages

  • High detection accuracy with up to 33 detection zones.
  • 500 sensitivity levels provide flexible security configuration.
  • Supports real-time monitoring and data logging through compatible software.
  • Separate inbound and outbound sensitivity settings improve screening flexibility.
  • High throughput of more than 40 persons per minute.
  • Clear visual and audible alarm indication.
  • Can be linked with an entrance gate using relay output.
  • Designed for continuous 24/7 operation.

Technical Specifications

Specification Details
Product Type Walk Through Metal Detector
Model ZK-D3180
Physical Keypad 5 keys
Detection Zone 1 / 6 / 12 / 18 / 33 zones mode adjustable
Sensitivity Level 500 levels
Channel 100
Smallest Metal Objects Detected Φ22.25 × T1.85 mm (Steel-nickel Alloy)
Maximum Detection Distance Vertical 20-2000 mm
Detection Sound Alert 16 types of alarm tones (adjustable), 0-100 levels of volume adjustable, maximum volume 80 dB
Detection Visual Indicator 2 sets of LEDs evenly distributed on the left and right door panels; steady red indicates metal contraband detected
Throughput > 40 persons per minute
Self-Diagnosis Yes
Detection Mode Automatic Detection Mode / Infrared Detection Mode (default)
Number of IR Groups 2
Detected Contrabands Ferrous and non-ferrous metal weapons
Enclosure Material Flame Retardant ABS Polymer, Medium Density Fiberboard, PVC
Power Supply AC100V to 240V (DC12V/3A)
Input Voltage DC12V, POE (optional)
Operating Current 1.2A
Operating Power 14W
Operating Time 24/7 operation capability (continuous operation)
Operating Frequency 5.7KHz ~ 9.6KHz
Operating Temperature -20°C ~ 55°C
Storage Temperature -25°C ~ 60°C
Operating Humidity < 95% RH (non-condensing)
Ingress Protection Rating N/A (waterproof and dustproof)
N/A (vandal resistant)
Application Environment Indoor
Dimensions 2226 × 845 × 580 mm
Lane Size 2000 × 710 × 498 mm
Dimensions with Packaging 2280 × 347 × 660 mm
Net Weight 46 kg
Gross Weight 52 kg
Interface Relay Output: Yes
Network Interface: Yes
Remote Control Yes
Certifications CE, FCC, ISO9001

Main Features

  • 33-zone metal detection capability.
  • 500 adjustable sensitivity levels.
  • 7-inch LCD display.
  • More than 40 persons per minute throughput.
  • 16 adjustable alarm tones.
  • Adjustable alarm volume up to 80 dB.
  • Automatic and infrared detection modes.
  • Separate inbound and outbound sensitivity configuration.
  • People counting functionality.
  • Relay and network interfaces.
  • Remote control support.

Applications

  • Security Screening
  • Corporate Offices
  • Government Buildings
  • Airports
  • Courthouses
  • Prisons
  • Educational Institutions
  • Industrial Facilities
  • Public Buildings
  • High-Security Facilities

Why Choose the ZK-D3180?

  • Up to 33 detection zones provide precise threat localization.
  • 500 sensitivity levels allow detailed security configuration.
  • High throughput supports efficient security screening.
  • Clear sound and LED alerts provide immediate threat indication.
  • Network communication enables monitoring and data management.
  • Relay output allows integration with entrance gate systems.
  • Designed for continuous 24/7 operation.
  • Supports ZK Metal Detector and ZKBio SIS software.
