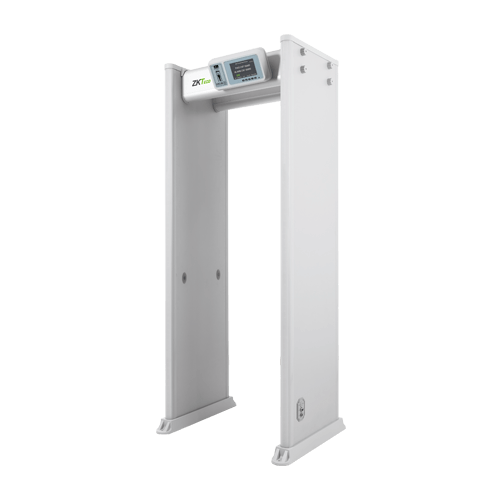

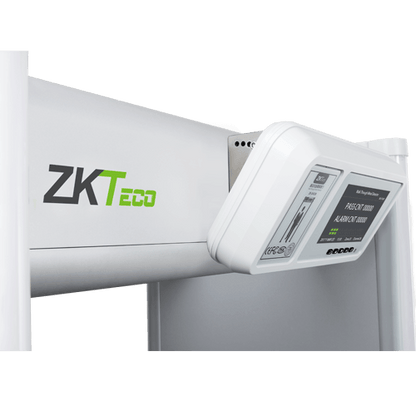

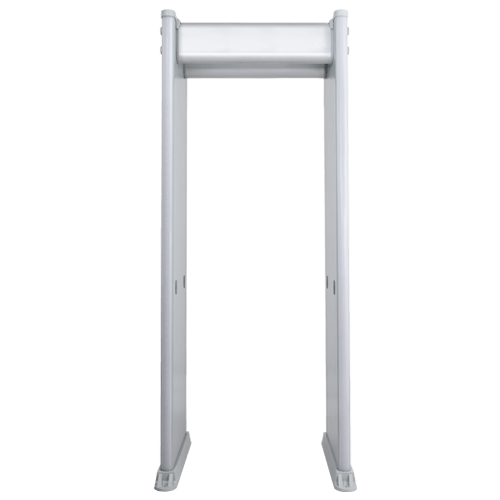

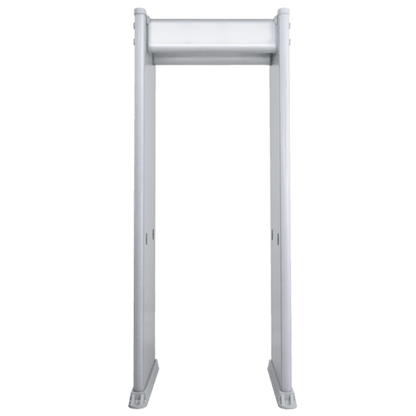

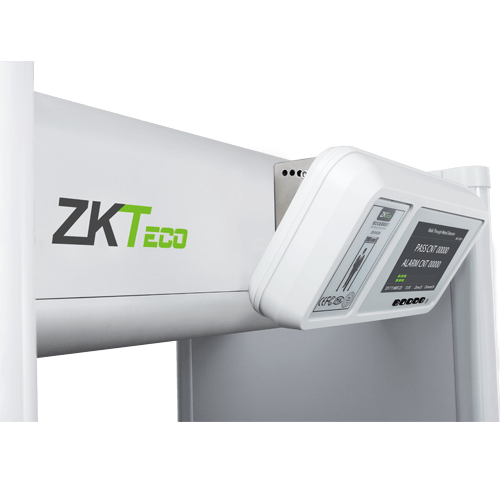

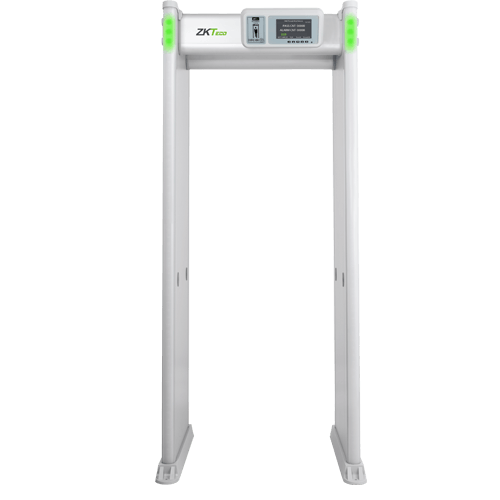

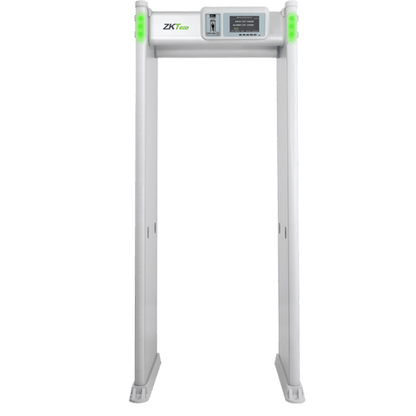

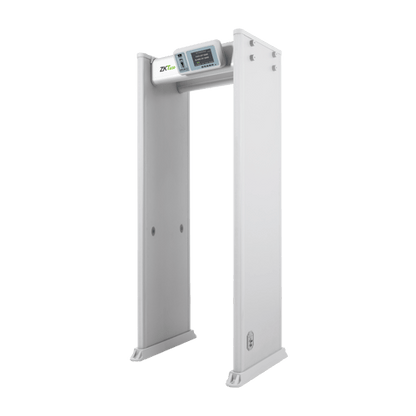

ZKTeco ZK-D4330 Walk Through Metal Detector
The ZKTeco ZK-D4330 is a high-performance walk-through metal detector designed to provide advanced security screening for airports, government buildings, schools, factories, event venues, and other high-security environments. Featuring 33 detection zones, a 7-inch touch screen display, and intelligent signal processing technology, the ZK-D4330 offers accurate metal detection with exceptional stability and anti-interference capability.
Built with a modular beam structure and durable flame-retardant materials, the ZK-D4330 ensures easy installation, reliable operation, and continuous 24/7 performance. With up to 500 adjustable sensitivity levels and support for TCP/IP communication, the system delivers flexible and efficient security management.
Key Features
- 33 independent detection zones for precise metal localization.
- 7-inch touch screen display for easy operation.
- 500 adjustable sensitivity levels.
- Advanced anti-interference technology.
- High detection accuracy and fast verification speed.
- Automatic and infrared detection modes.
- Pass count and alarm count memory function.
- 16 selectable alarm tones with adjustable volume.
- LED indicators for threat location and passage status.
- Supports TCP/IP communication for remote management.
- Remote control support.
- Continuous 24/7 operation capability.
- Modular design for easy installation and maintenance.
- Suitable for indoor and optional semi-outdoor applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model | ZKTeco ZK-D4330 |
| Display | 7-inch Touch Screen |
| Detection Zones | 33 Zones (12 / 24 / 33 / 46 / 69 Modes Adjustable) |
| Sensitivity Levels | 500 Levels |
| Channels | 100 |
| Detection Modes | Automatic Detection Mode / Infrared Detection Mode |
| Number of Infrared Groups | 2 |
| Smallest Detectable Metal Object | Φ22.25 × T1.85 mm (Steel-Nickel Alloy) |
| Maximum Detection Distance | 20 mm – 2000 mm (Vertical) |
| Throughput | > 40 Persons Per Minute |
| Alarm Sound | 16 Alarm Tones, Volume Adjustable (0–100 Levels) |
| Maximum Alarm Volume | 80 dB |
| Visual Indicator | 4 Sets of Red LED Indicators on Both Side Panels |
| Passage Indicators | Green, Red, and Yellow LED Status Indicators |
| Communication Interface | TCP/IP (RJ45) |
| Relay Output | Yes |
| Remote Control | Supported |
| Operating Power | 20W |
| Power Supply | AC 100V – 240V, 50/60Hz (DC 15V / 4.8A) |
| Operating Frequency | 5.7kHz – 9.6kHz |
| Operating Temperature | -20°C to 55°C |
| Operating Humidity | <95% RH (Non-Condensing) |
| Application Environment | Indoor, Optional Semi-Outdoor |
| External Dimensions | 2220 × 930 × 760 mm |
| Passage Dimensions | 2010 × 760 × 760 mm |
| Net Weight | 60 kg |
| Gross Weight | 70 kg |
| Certifications | CE-EMC, CE-LVD, FCC sDOC |
Applications
- Airports
- Railway Stations
- Government Buildings
- Educational Institutions
- Factories and Manufacturing Plants
- Commercial Complexes
- Exhibition Centers
- Hotels and Shopping Malls
- Event Venues
- Courthouses and Correctional Facilities
Why Choose ZKTeco ZK-D4330?
Precise Threat Localization
Thirty-three detection zones provide accurate identification of metal objects and their location on the body.
Advanced Sensitivity Adjustment
With up to 500 sensitivity levels, the detector can distinguish between harmless objects and prohibited items.
High Throughput Performance
Capable of screening more than 40 people per minute, making it suitable for busy entrances and security checkpoints.
Reliable and Stable Operation
Excellent anti-interference technology ensures dependable performance even in challenging environments.
Easy Installation and Maintenance
The modular structure and user-friendly interface simplify setup and ongoing maintenance.
Ideal For
Security Screening | Walk Through Metal Detection | Airport Security | Industrial Security | Educational Institutions | Event Venues | Government Facilities | Commercial Buildings
