ZKTeco ZK-D1090 Walk Through Metal Detector

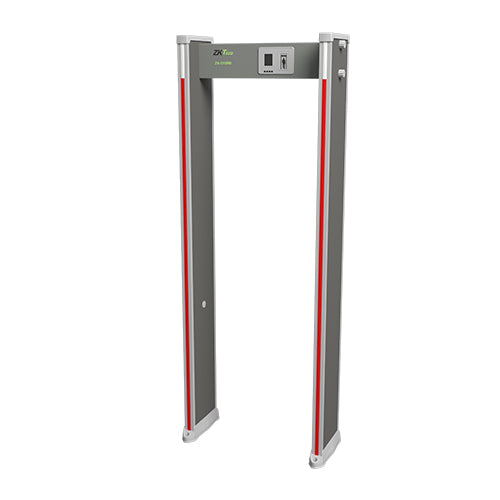

ZK-D1090 Walk Through Metal Detector

The ZK-D1090 is a budget-friendly walk-through metal detector designed to provide reliable security screening for schools, public venues, corporate entrances, and other high-traffic areas. With 9 detection zones and 500 adjustable sensitivity levels, it provides precise detection of ferrous and non-ferrous metal weapons.

The detector can detect small metal objects such as a 22.25mm diameter steel-nickel alloy while maintaining safe operation for users. Its 2.8-inch color screen provides convenient monitoring of channel information, time, people count, and alarm count.

With synchronized LED and audio alerts, anti-interference technology, self-diagnosis, and a throughput of more than 40 persons per minute, the ZK-D1090 is suitable for efficient security screening in high-traffic environments.

Key Features

• 9 detection zones for effective security screening.
• 500 adjustable sensitivity levels.
• Detects ferrous and non-ferrous metal weapons.
• Detection capability for small metal objects measuring Φ22.25 × T1.85mm.
• 2.8-inch color screen for convenient operation and monitoring.
• People count and alarm count monitoring.
• Synchronized LED and audio alarm indication.
• More than 40 persons per minute throughput.
• Automatic Detection Mode and Infrared Detection Mode.
• Self-diagnosis program supported.
• 6 adjustable alarm tones with adjustable volume.
• 24/7 continuous operation capability.
• Flame-retardant enclosure construction.

Product Advantages

• Budget-friendly solution for everyday security screening.
• 500 sensitivity levels provide flexible detection configuration.
• High throughput makes it suitable for busy entrances.
• Clear visual and audio alerts help operators identify threats quickly.
• People and alarm counting supports security monitoring.
• Compact power consumption of only 10W during operation.
• Supports continuous 24/7 operation.
• Suitable for schools, public venues, offices, and corporate entrances.

Technical Specifications

Detection & Monitoring

• 500 adjustable sensitivity levels for flexible detection configuration.
• Adjustable detection layout with 3 vertical, 3 × 2 grid, or 3 × 3 grid modes.
• Detection range of 20mm to 2000mm vertically.
• Detection of ferrous and non-ferrous metal weapons.
• Smallest specified detection target: Φ22.25 × T1.85mm steel-nickel alloy.
• People count and alarm count displayed on the overhead control unit.

Alarm & Indication

• 6 types of adjustable alarm tones.
• 0 to 6 adjustable volume levels.
• Maximum alarm volume of 80dB.
• Two sets of red LED indicators on the door panels.
• Synchronized audio and visual threat indication.

Applications

• Schools
• Corporate Offices
• Public Venues
• Commercial Buildings
• High-Traffic Entrances
• Government Facilities
• Event Venues
• Security Screening Checkpoints

Why Choose ZK-D1090?

• Affordable walk-through security screening solution.
• 500 sensitivity levels for precise detection adjustment.
• High throughput of more than 40 persons per minute.
• 2.8-inch color screen for easy monitoring.
• People and alarm counting for better security management.
• Clear synchronized LED and audio alerts.
• Supports continuous 24/7 operation.
• Low 10W operating power.
• Suitable for indoor high-traffic security applications.
