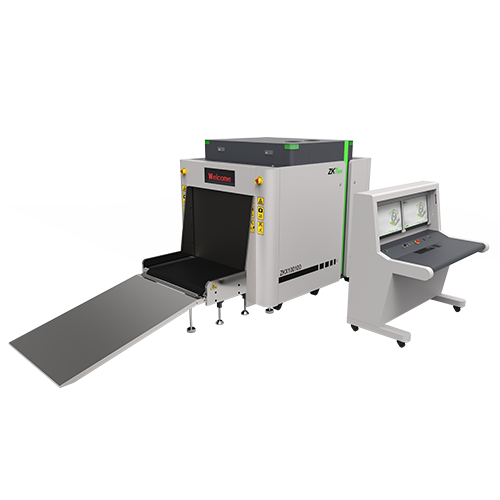

ZKTeco ZKX100100 X-Ray Baggage Scanner

ZKX100100 X-ray Inspection System

The ZKX100100 X-ray Inspection System is a high-capacity security inspection solution designed to scan large objects up to 1000 × 1000mm. It uses a reliable dual-energy X-ray generator and advanced image algorithms to provide clear scanning images, helping operators visually identify potential threat items.

The system features a lowered conveyor height of 387mm, making it easier for operators to place luggage and other objects onto the conveyor. Its ergonomic design, operator biometric identification function, and advanced inspection features provide enhanced security and efficient screening performance.

Key Features

• Large 1000 × 1000mm tunnel opening for oversized luggage and objects.
• Reliable dual-energy X-ray generator.
• Advanced image algorithms for clear scanning images.
• Lowered 387mm transmission belt height for easier luggage loading.
• Maximum load capacity of 200kg with adequate distribution.
• Operator biometric identification function for enhanced system security.
• High-density alert function.
• Explosive and drug auxiliary detection.
• TIP (Threat Image Projection) function.
• Luggage counter and date/time display.
• User management and operator training functions.
• Adjustable X-ray tube voltage from 80kV to 160kV.
• Adjustable tube current from 0.3mA to 1.0mA.
• ASA/ISO1600 film safety standard.

Product Advantages

• Large tunnel size allows inspection of bigger luggage and packages.
• Dual-energy X-ray technology supports effective security screening.
• High-quality image algorithms help operators identify suspicious objects.
• Low conveyor height improves operator convenience when loading luggage.
• Biometric operator identification enhances system security.
• Multiple intelligent inspection functions assist security operators.
• Adjustable X-ray output provides operational flexibility.
• Ergonomic modern design supports fast and accurate threat identification.

Technical Specifications

X-ray System Performance

• Dual-energy X-ray inspection technology.
• Adjustable tube voltage from 80kV to 160kV.
• Adjustable tube current from 0.3mA to 1.0mA.
• 38 AWG wire resolution.
• 32 AWG penetration definition.
• Horizontal space definition of Φ1.0mm.
• Vertical space definition of Φ2.0mm.
• Radiation leak dosage of 0.2 μGy/h at 5cm from the surface.
• ASA/ISO1600 film safety standard.

Intelligent System Functions

• High-density alert.
• Explosive auxiliary detection.
• Drug auxiliary detection.
• TIP (Threat Image Projection).
• Luggage counting.
• Date and time display.
• User management.
• Operator training function.
• Biometric identification for operators.

Design & Installation Specifications

• Large tunnel opening of 1000 × 1000mm.
• Low transmission belt height of 387mm.
• Maximum supported load of 200kg.
• Overall dimensions of 3384 × 1407 × 1866mm.
• Console desk dimensions of 1320 × 900 × 320mm.
• Tunnel package weight of 1250kg.
• Console desk package weight of 135kg.
• Power consumption: 1 kVA.

Applications

• Airport Security Screening
• Government Buildings
• Transportation Hubs
• Customs and Border Security
• Large Cargo Inspection
• Industrial Facilities
• High-Security Facilities
• Commercial Security Screening
• Large Luggage Inspection

Why Choose ZKX100100?

• Large 1000 × 1000mm tunnel accommodates oversized objects.
• Dual-energy X-ray technology provides detailed scanning images.
• Advanced image algorithms assist operators in identifying potential threats.
• Low conveyor height makes luggage loading easier.
• Biometric operator identification improves system security.
• Supports high-density, explosive and drug auxiliary detection functions.
• TIP and luggage counting functions improve screening efficiency.
• Adjustable X-ray tube voltage and current provide operational flexibility.
• Ergonomic design helps operators identify suspicious items quickly and accurately.
