ZKTeco ZKX5030C X-Ray Baggage Scanner
ZKTeco ZKX5030C X-Ray Baggage Scanner
Couldn't load pickup availability
Product Details

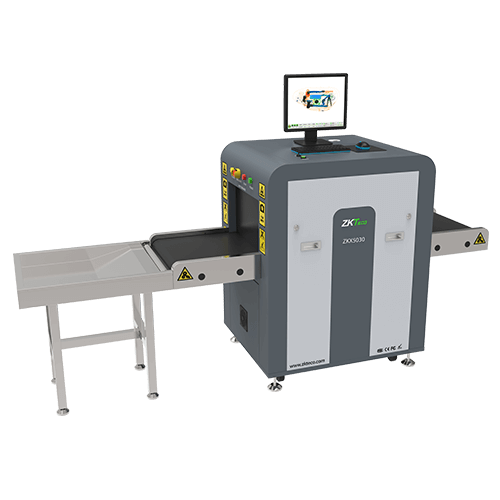

ZKTeco ZKX5030C X-ray Inspection System
The ZKTeco ZKX5030C is a compact dual-energy X-ray inspection system designed for efficient security screening of briefcases, carry-on luggage and small cargo packages. With a 500 mm × 300 mm tunnel opening, the system provides practical scanning capacity while maintaining a compact footprint.
Its compact design makes the ZKX5030C easy to relocate and suitable for locations where equipment needs to pass through narrow doorways. The system is well suited for stadiums, shopping malls, hotels and similar security screening environments.
The ZKX5030C uses a reliable dual-energy X-ray generator and detector together with advanced image algorithms to produce clear scanning images. This helps operators visually inspect baggage and identify potential threat items efficiently.
Kindly note: The ZKX5030C is equipped with a computer keyboard.
Key Features
- Dual-energy X-ray inspection technology.
- 500 mm × 300 mm tunnel opening.
- Single-view scanning system.
- Compact design with a small footprint.
- Suitable for briefcases, carry-on luggage and small cargo packages.
- Clear X-ray scanning images using advanced image algorithms.
- Up to 30 mm steel penetration.
- 36 AWG wire resolution.
- RJ45 TCP/IP communication interface.
- Compatible with ZKBio SIS software.
- Windows 10-based computer system.
- Storage capacity of up to 200,000 scanned images.
- Equipped with a computer keyboard.
- Sealed oil bath with forced-air generator cooling.
Product Advantages
- Dual-energy imaging provides enhanced material differentiation for security inspection.
- Compact dimensions make the system easier to position and relocate.
- 500 mm × 300 mm tunnel size is suitable for small baggage and parcels.
- 30 mm steel penetration provides strong inspection capability.
- Clear scanning images help operators identify suspicious objects visually.
- TCP/IP connectivity supports integration with compatible security management systems.
- Large image storage capacity helps maintain a record of scanned items.
- Suitable for high-traffic public and commercial security checkpoints.
X-ray Inspection Technology
Dual-Energy Detector
The ZKX5030C uses a dual-energy detector to generate detailed X-ray inspection images. Combined with image-processing algorithms, this allows operators to visually examine the contents of baggage and packages.
High Penetration Performance
The system provides 30 mm steel penetration, allowing it to inspect a wide range of small baggage and cargo items effectively.
Compact Tunnel Design
The 500 mm × 300 mm tunnel opening is designed for briefcases, carry-on luggage and small cargo packages while keeping the overall system compact.
Advanced Image Processing
Superior image algorithms provide clear scanning images to assist operators in visually identifying potential threat items during security screening.
Technical Specifications
| Specification | Details |
|---|---|
| Model | ZKX5030C |
| Product Type | Dual-Energy X-ray Inspection System |
| Tunnel Size | 500 × 300 mm (W × H) |
| Conveyor Speed | 0.20 m/sec |
| Conveyor Load | 120 kg (Adequate Distribution, Max. Load) |
| Conveyor Height | 650 mm |
| Detector | Dual-Energy Detector |
| View | Single-View |
| Supported Software | ZKBio SIS |
| Communication Interface | RJ45 (TCP/IP) |
| Dimensions (L × W × H) | 1701 × 796 × 1150 mm |
| Package Dimensions (L × W × H) | 2000 × 1000 × 1500 mm |
| Net Weight | 380 kg |
| Gross Weight | 450 kg (with Package) |
| Film Safety | ASA/ISO1600 |
| Certifications | CE-EMC, CE-MD, FCC sDOC, FDA |
X-ray Generator & Image Performance
| Specification | Details |
|---|---|
| Anode Voltage | 140 kV |
| Tube Current | 0.3 mA |
| Wire Resolution | 36 AWG |
| Steel Penetration | 30 mm |
| Spatial Resolution | Horizontal Φ1.3 mm / Vertical Φ1.3 mm |
| Penetration Resolution | 30 AWG |
| Generator Cooling | Sealed Oil Bath with Forced Air |
| Beam Direction | Vertically Upward |
| X-ray Converter Type | L-shaped Detector Line |
Computer Specifications
| Specification | Details |
|---|---|
| Operating System | Windows 10 |
| RAM | 8 GB |
| Hard Drive | 128 GB SSD + 2 TB HDD |
| Maximum Storage | Up to 200,000 Scanned Images |
| Keyboard | Computer Keyboard Included |
Communication & Connectivity
- RJ45 Ethernet communication interface.
- TCP/IP network communication.
- ZKBio SIS software support.
- Suitable for integration with compatible security management systems.
Operating Environment
| Specification | Details |
|---|---|
| System Power | 220 VAC ±10%, 50/60 Hz 110 VAC ±10%, 50/60 Hz |
| Power Consumption | < 300W |
| Noise Level | < 58 dB(A) |
| Operating Temperature | -10°C to +45°C |
| Storage Temperature | 20°C to +60°C |
Applications
- Stadiums
- Shopping Malls
- Hotels
- Corporate Offices
- Government Buildings
- Transportation Facilities
- Security Checkpoints
- Event Venues
- Commercial Buildings
- Small Cargo Screening Areas
- Carry-on Baggage Screening
- Briefcase Inspection
Why Choose ZKTeco ZKX5030C?
- Dual-energy X-ray inspection for enhanced screening capability.
- Compact 500 × 300 mm tunnel suitable for small baggage and parcels.
- 30 mm steel penetration for effective inspection.
- Clear images supported by advanced image algorithms.
- Compact footprint makes relocation and installation easier.
- TCP/IP connectivity for network communication.
- ZKBio SIS software compatibility.
- Up to 200,000 scanned-image storage capacity.
- Suitable for stadiums, hotels, shopping malls and other security-sensitive locations.
Package & Equipment Note
The ZKX5030C is supplied with its computer system and is equipped with a computer keyboard. The system is designed as a complete X-ray inspection solution for scanning small baggage, briefcases and cargo packages at controlled security checkpoints.
