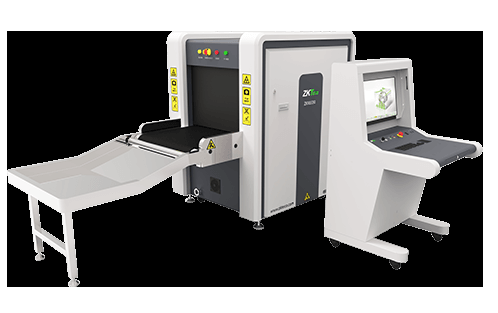

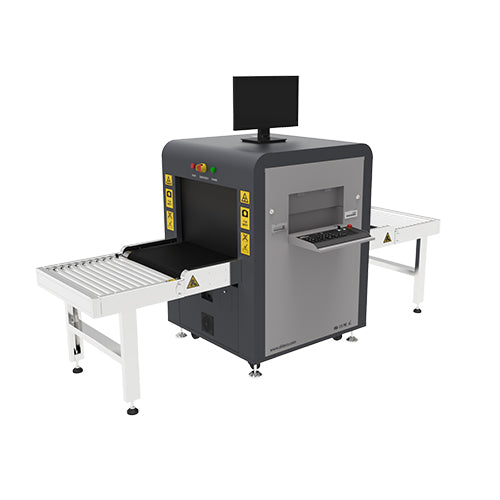

ZKTeco ZKX6040A Pseudo-Colour X-Ray Baggage Scanner
ZKTeco ZKX6040A Pseudo-Colour X-Ray Baggage Scanner
Couldn't load pickup availability
Product Details
ZKTeco ZKX6040A X-Ray Inspection System
The ZKTeco ZKX6040A is a compact and highly mobile X-ray inspection system designed for the security screening of briefcases, carry-on luggage, small cargo packages and other items. With a 600 × 400 mm tunnel opening, the system provides a practical balance between scanning capacity and compact installation requirements.
Featuring a foldable keyboard and compact design, the ZKX6040A can be easily positioned in hotels, shopping malls, transportation hubs, security checkpoints and similar locations. Its reliable X-ray generator, detector system and advanced image-processing algorithms provide clear scanning images to help operators visually identify potential threat items.
The system uses a single-energy X-ray detector and single-view imaging configuration, with a conveyor speed of 0.30 m/sec and a maximum distributed conveyor load of 120 kg. The integrated computer system supports ZKBio SIS software and can store up to 200,000 scanned images.
Key Features
Compact & Mobile Design
The compact construction and foldable keyboard make the ZKX6040A convenient to position and relocate according to changing security screening requirements.
600 × 400 mm Tunnel
The 600 mm wide × 400 mm high tunnel provides suitable scanning space for briefcases, carry-on luggage, parcels and other small cargo items.
Clear X-Ray Imaging
High-quality X-ray generation, detection components and image-processing algorithms provide clear scanning images for visual inspection.
Reliable X-Ray Generator
The system uses an 80 kV X-ray generator with a 0.6 mA tube current and sealed oil bath cooling with forced air.
Efficient Conveyor System
The conveyor operates at a speed of 0.30 m/sec and supports a maximum distributed load of 120 kg.
Integrated Computer System
The ZKX6040A includes a Windows 10 operating system, Intel N100 processor, 8 GB RAM, 128 GB SSD and 2 TB HDD for system operation and image storage.
Large Image Storage Capacity
The system supports storage of up to 200,000 scanned images, allowing operators to review and manage inspection records.
Integrated Full-HD Monitor
A 21.5-inch Color LED screen with 1920 × 1080P resolution provides operators with a clear viewing interface for X-ray inspection images.
Safety & Security Features
- Single-energy X-ray inspection technology
- Single-view imaging system
- Radiation leakage dosage of less than 0.3 μSv/h at 10 cm from the surface
- Radiation safety design for cabinet X-ray inspection applications
- Film safety up to ASA/ISO1600
- Reliable X-ray generator and detector system
- Clear image processing for visual identification of potential threat items
Design & Construction
- 600 × 400 mm tunnel opening
- Compact and mobile system design
- Foldable keyboard design
- 680 mm conveyor height
- Sealed oil bath generator cooling with forced air
- L-shaped detector line
- Vertically upward X-ray beam direction
- Integrated 21.5-inch Color LED monitor
Applications
- Hotels
- Shopping Malls
- Transportation Hubs
- Airports and Security Checkpoints
- Government Buildings
- Corporate Facilities
- Stadiums and Event Venues
- Commercial Buildings
- Security Screening Areas
- Small Cargo Inspection
- Carry-On Luggage Inspection
- Briefcase and Parcel Inspection
General Specifications
| Parameter | Specification |
|---|---|
| Model | ZKX6040A |
| Product Type | X-Ray Inspection System |
| Tunnel Size | 600 × 400 mm (W × H) |
| Conveyor Speed | 0.30 m/sec |
| Conveyor Load | 120 kg, Adequate Distribution (Maximum Load) |
| Conveyor Height | 680 mm |
| Detector | Single-Energy Detector |
| View | Single-View |
| Supported Software | ZKBio SIS |
| Communication Interface | RJ45 (TCP/IP) |
| Dimensions (L × W × H) | 1701 × 910 × 1305 mm |
| Package Dimensions (L × W × H) | 2110 × 1140 × 1540 mm |
| Net Weight | 380 kg |
| Gross Weight | 480 kg (with Package) |
| Film Safety | ASA/ISO1600 |
| Certifications | CE-EMC, CE-MD |
X-Ray Generator & Image Performance
| Parameter | Specification |
|---|---|
| Anode Voltage | 80 kV |
| Tube Current | 0.6 mA |
| Wire Resolution | 36 AWG |
| Steel Penetration | 8 mm |
| Spatial Resolution | Horizontal Φ1.3 mm / Vertical Φ1.3 mm |
| Penetration Resolution | 30 AWG |
| Generator Cooling | Sealed Oil Bath with Forced Air |
| Beam Direction | Vertically Upward |
| X-Ray Converter Type | L-Shaped Detector Line |
Computer Specifications
| Parameter | Specification |
|---|---|
| Operating System | Windows 10 |
| Processor | N100 |
| RAM | 8 GB |
| Hard Drive | 128 GB SSD + 2 TB HDD |
| Maximum Storage | Up to 200,000 Scanned Images |
| Monitor | 21.5-inch Color LED Screen, 1920 × 1080P |
Operating Environment
| Parameter | Specification |
|---|---|
| System Power | 220 VAC ±10%, 50/60 Hz 110 VAC ±10%, 50/60 Hz |
| Power Consumption | < 300 W |
| Noise Level | < 58 dB(A) |
| Operating Temperature | -10°C to +45°C |
| Storage Temperature | -20°C to +60°C |
| Working Humidity | 5–95%, Non-condensing |
| Radiation Leak Dosage | < 0.3 μSv/h at 10 cm from the Surface |
Why Choose ZKTeco ZKX6040A?
- 600 × 400 mm tunnel suitable for small and medium-sized baggage and parcels.
- Compact and mobile design for flexible deployment.
- Foldable keyboard helps save space during installation and relocation.
- Single-energy X-ray imaging provides clear inspection images.
- 0.30 m/sec conveyor speed supports efficient security screening.
- 120 kg maximum distributed conveyor load.
- Integrated Windows 10 computer system.
- 21.5-inch Full-HD Color LED monitor for clear image viewing.
- Up to 200,000 scanned images can be stored.
- Compatible with ZKBio SIS software.
- Low operating noise of less than 58 dB(A).
- Suitable for indoor security screening applications.
Package Includes
- 1 × ZKTeco ZKX6040A X-Ray Inspection System
- Integrated Computer System
- 21.5-inch Color LED Monitor
- Foldable Keyboard
- X-Ray Generator and Detector System
- Conveyor System
