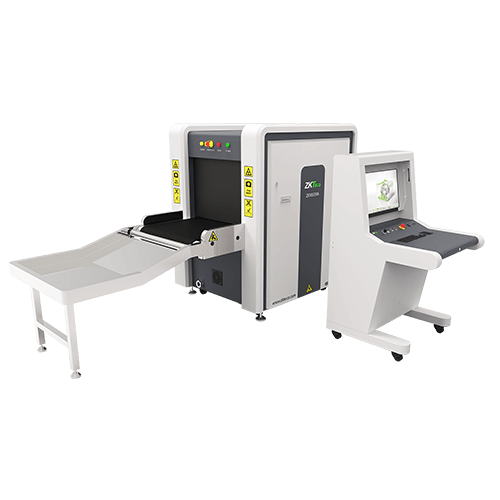

ZKTeco ZKX6550A Pseudo-Colour X-Ray Baggage Scanner

ZKX6550A X-Ray Inspection System

The ZKX6550A X-Ray Inspection System is a compact and efficient security inspection solution designed for screening briefcases, carry-on luggage, and small cargo packages. With a 650 mm × 500 mm tunnel opening, the system provides convenient and reliable inspection for a wide range of security screening applications.

The ZKX6550A is equipped with reliable, high-quality X-ray generators and detectors combined with advanced image algorithms to produce clear scanning images. This enables operators to visually inspect luggage and identify potential threat items efficiently.

Its movable console improves operator comfort and work efficiency, allowing the system to be positioned conveniently in locations such as hotels, shopping malls, transportation hubs, and similar facilities.

Key Features

• 650 mm × 500 mm tunnel opening for luggage and small cargo inspection.
• Single-energy X-ray detection technology.
• Single-view scanning system.
• High-quality X-ray generator and detector.
• Advanced image algorithms for clear scanning images.
• Movable console for improved operator efficiency and comfort.
• RJ45 TCP/IP communication interface.
• Compatible with ZKBio SIS software.
• Film safety up to ASA/ISO 1600.
• Radiation leakage dosage below 0.3 μSv/h at 10 cm from the surface.
• Compact design suitable for hotels, shopping malls, and transportation hubs.

Product Advantages

• Clear X-ray images help operators visually identify potential threat items.
• 650 mm wide tunnel accommodates briefcases, carry-on luggage, and small packages.
• Movable console provides greater flexibility during installation and operation.
• Reliable X-ray generator and detector provide consistent inspection performance.
• Advanced image processing technology supports effective security screening.
• TCP/IP connectivity enables integration with security inspection software.
• Designed for security screening in a variety of public and commercial environments.

Technical Specifications

X-Ray Generator & Image Performance

• 80 kV Anode Voltage: Provides the specified X-ray generation performance for security inspection.
• 36 AWG Wire Resolution: Enables detection of fine wire objects.
• 8 mm Steel Penetration: Provides effective penetration capability for inspected items.
• 32 AWG Penetration Resolution: Supports detailed inspection of objects within luggage.
• High Spatial Resolution: Horizontal Φ1.6 mm and vertical Φ1.3 mm.
• Vertically Upward Beam: X-ray beam direction is vertically upward.

Health & Safety

• Radiation leakage dosage is specified at less than 0.3 μSv/h at 10 cm from the surface.
• Designed to comply with the stated radiation safety standard of less than 5 μSv/h for cabinet X-ray systems.
• Film safety is rated at ASA/ISO 1600.

Applications

• Hotels
• Shopping Malls
• Transportation Hubs
• Security Checkpoints
• Commercial Buildings
• Public Facilities
• Small Cargo Inspection
• Briefcase and Carry-On Luggage Screening

Why Choose the ZKX6550A?

• 650 × 500 mm tunnel opening suitable for briefcases, carry-on luggage, and small cargo packages.
• Single-energy X-ray inspection with single-view imaging.
• Clear scanning images supported by high-quality detectors and image algorithms.
• 8 mm steel penetration capability.
• 36 AWG wire resolution and 32 AWG penetration resolution.
• Low noise level of less than 58 dB(A).
• Movable console improves operator convenience and work efficiency.
• TCP/IP connectivity enables communication with security inspection systems.
• Compatible with ZKBio SIS.
• Suitable for a wide range of commercial and security screening environments.
