Biometric Attendance System

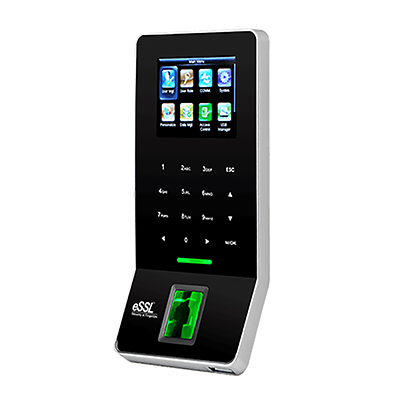

eSSL F22 Biometric Fingerprint Time Attendance Machine
eSSL F22 Biometric Fingerprint Time Attendance Machine
Regular price
Rs. 10,508.00
Regular price
Rs. 12,610.00
Sale price
Rs. 10,508.00
Quantity
Couldn't load pickup availability

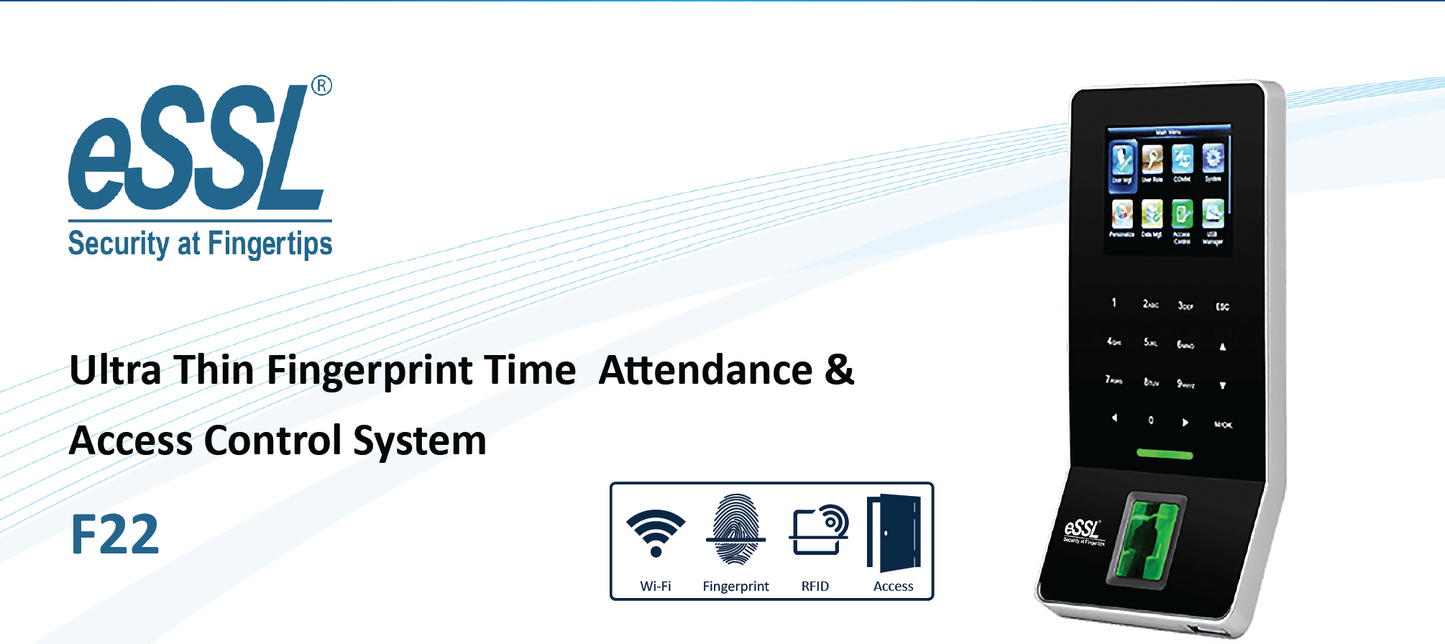

F22 Fingerprint Time Attendance & Access Control System
The F22 Fingerprint Time Attendance & Access Control System is a slim and modern biometric terminal designed for accurate employee attendance tracking and secure door access control. Equipped with a high-performance 500 DPI SilkID fingerprint sensor, built-in Wi-Fi, and comprehensive access control features, the F22 delivers fast authentication, reliable connectivity, and seamless integration with HRMS, payroll, and ERP solutions.
Key Features
- 500 DPI SilkID Fingerprint Sensor
- Stores up to 3,000 fingerprint templates
- Supports 5,000 RFID cards (Optional Mifare)
- Stores up to 30,000 attendance records

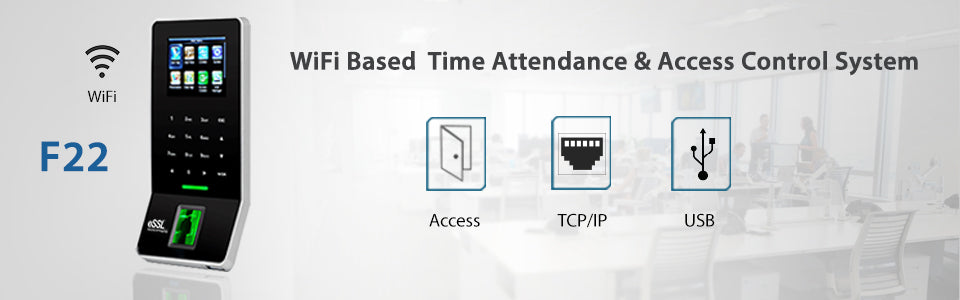

- Built-in Wi-Fi, TCP/IP, USB Host & RS232/RS485 communication
- Advanced access control with Anti-passback support
- Fast fingerprint recognition in less than 0.5 seconds
- Supports third-party payroll, HRMS and ERP integration
Technical Specifications
| Specification | Details |
|---|---|
| Model | F22 |
| Product Type | Fingerprint Time Attendance & Access Control System |
| Fingerprint Capacity | 3,000 Templates |
| Card Capacity | 5,000 Cards |
| Transaction Capacity | 30,000 Records |
| Fingerprint Sensor | 500 DPI SilkID Sensor |
| Fingerprint Algorithm | Finger VX10.0 |
| CPU | 32-bit Microprocessor |
| Core Board | ZLM60 |
| Identification Speed | < 0.5 Seconds |
| False Acceptance Rate (FAR) | ≤ 0.0001% |
| False Rejection Rate (FRR) | ≤ 1% |
| Display | 2.8-inch TFT Color Screen |
| Keypad | Touch Keys |
| LED Indicator | Green / Red |
| Communication | TCP/IP, RS232, RS485, USB Host, Built-in Wi-Fi |
| Wiegand | Input & Output |
| Push Data | Yes (Supports Static IP & Domain Server) |
| Access Control Interface | Electric Lock, Door Sensor, Exit Button, Alarm Output |
| Power Supply | DC 12V 1.5A |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 20% – 80% RH |

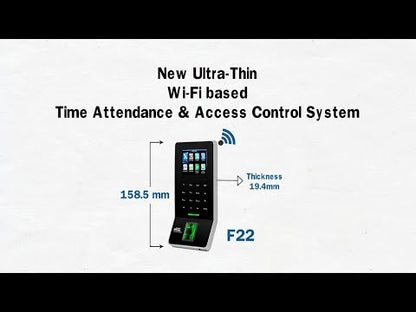

| Dimensions (L × W × H) | 158.5 × 78 × 19.4 mm |
| Supported Software | eTimetracklite Desktop & Web, Bio Server |
Standard Functions
- Push Data
- Work Code
- SMS
- Daylight Saving Time (DST)
- Self-Service Query
- Status Switch
- Automatic Status Switch
- Record Query
- T9 Input
- 14-Digit User ID
- Anti-Passback
- Optional Mifare Card Support
Product Features
- High-performance 500 DPI SilkID fingerprint sensor
- Slim and elegant design suitable for modern offices
- Built-in Wi-Fi for easy installation without network cabling
- Supports multiple communication interfaces
- Advanced access control with anti-passback functionality
- Auxiliary input for emergency switch or wired detector integration
- Supports multiple authentication methods
- Fast and highly accurate biometric verification

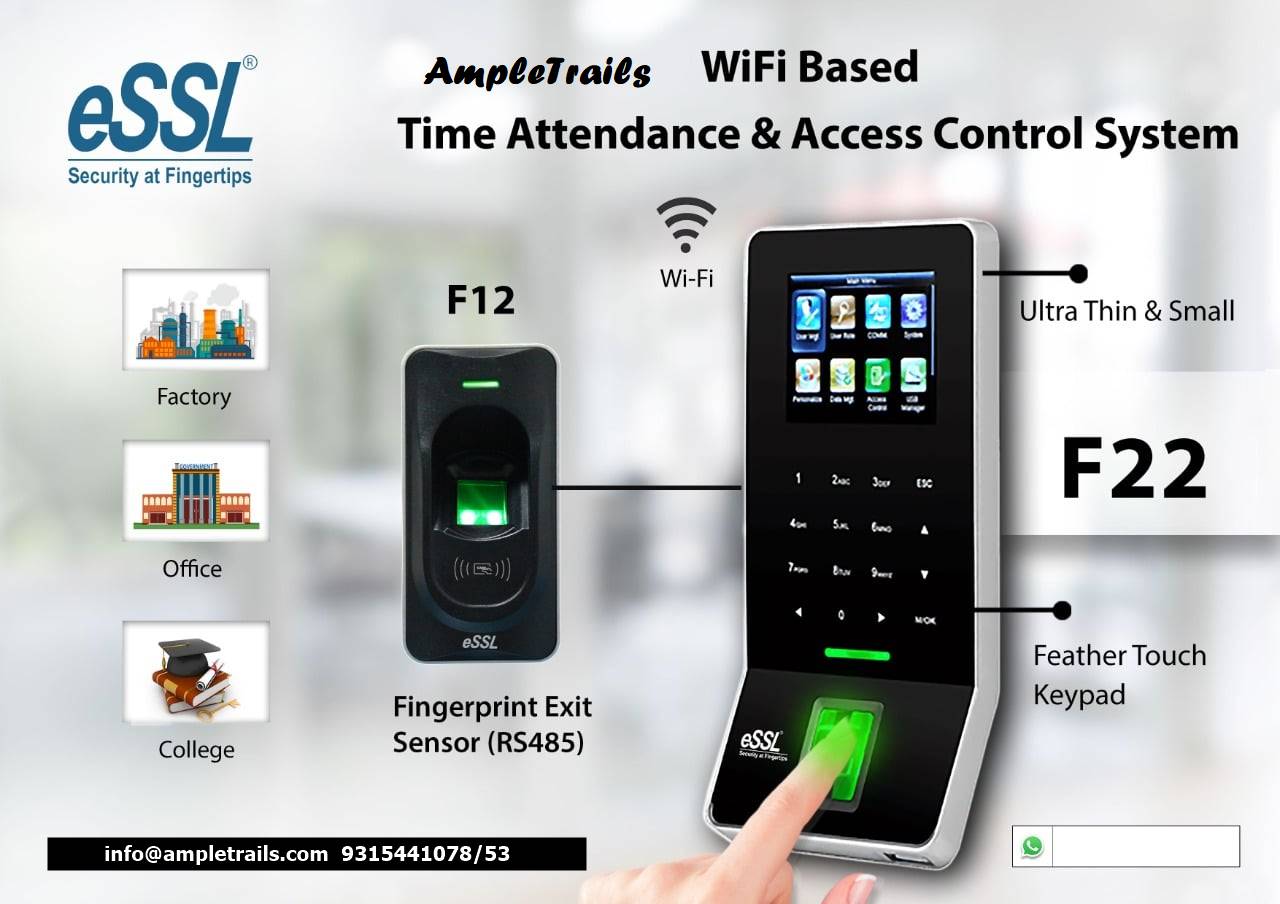

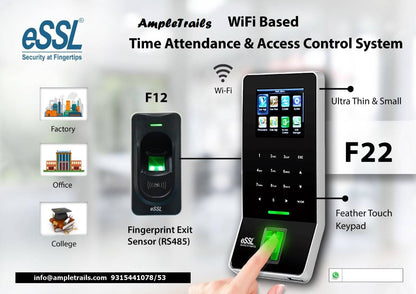

Supported Exit Readers
- FR1200
- KR500
- KR503
- No Touch Exit Button
- Standard Exit Push Button
Applications
- Corporate Offices
- Commercial Buildings
- Factories & Manufacturing Units
- Educational Institutions
- Hospitals
- Banks
- Retail Stores
- Government Organizations
Why Choose F22?
- Fast and highly accurate SilkID fingerprint recognition
- Built-in Wi-Fi for simplified deployment
- Supports attendance and complete door access control
- Easy integration with payroll, HRMS, ERP and third-party software
- Reliable performance with enterprise-grade security
- Compact, stylish and easy-to-install design
Package Includes
- 1 × F22 Fingerprint Device
- Power Adapter
- Wall Mounting Kit
- User Manual
