eSSL SF100 Fingerprint Attendance & Access Control Terminal – Compact 86 mm Box Mount, Wiegand, RS485
eSSL SF100 Fingerprint Attendance & Access Control Terminal – Compact 86 mm Box Mount, Wiegand, RS485
Couldn't load pickup availability

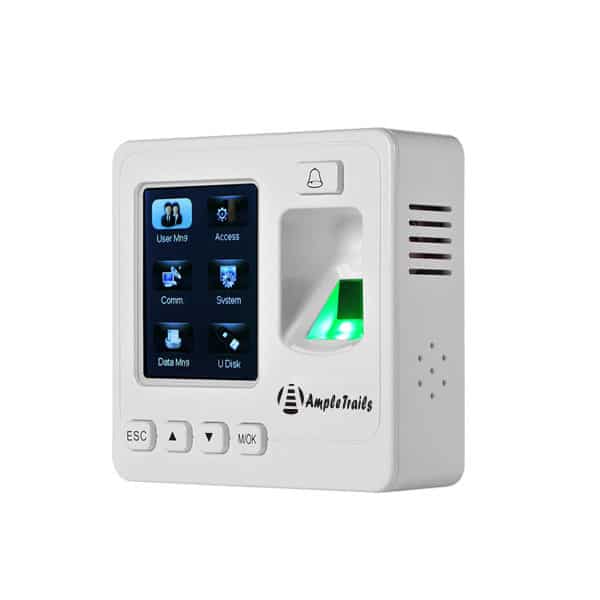

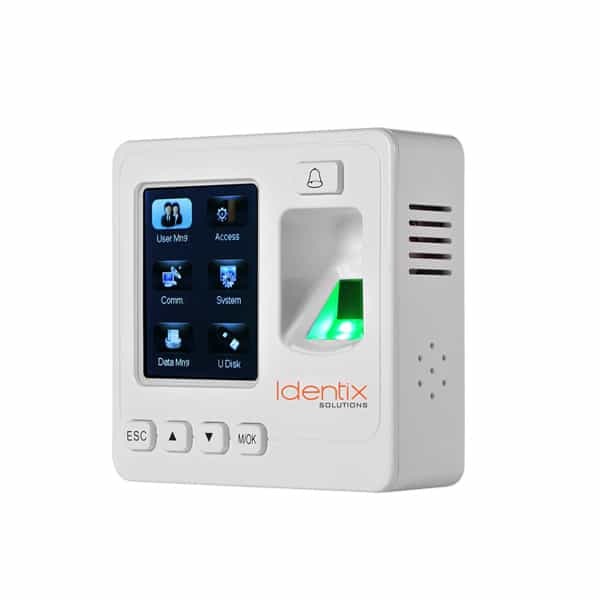

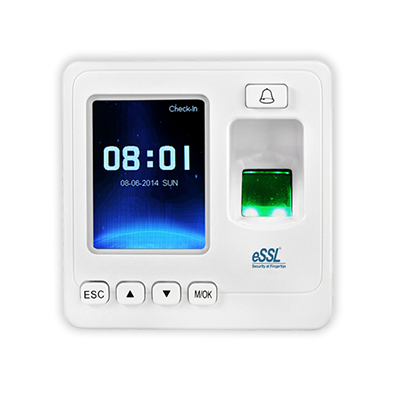

The eSSL SF100 is a compact IP-based fingerprint terminal for time attendance and single-door access control. It fits a standard 86 × 86 mm electrical box, making it ideal for neat door-side installations.

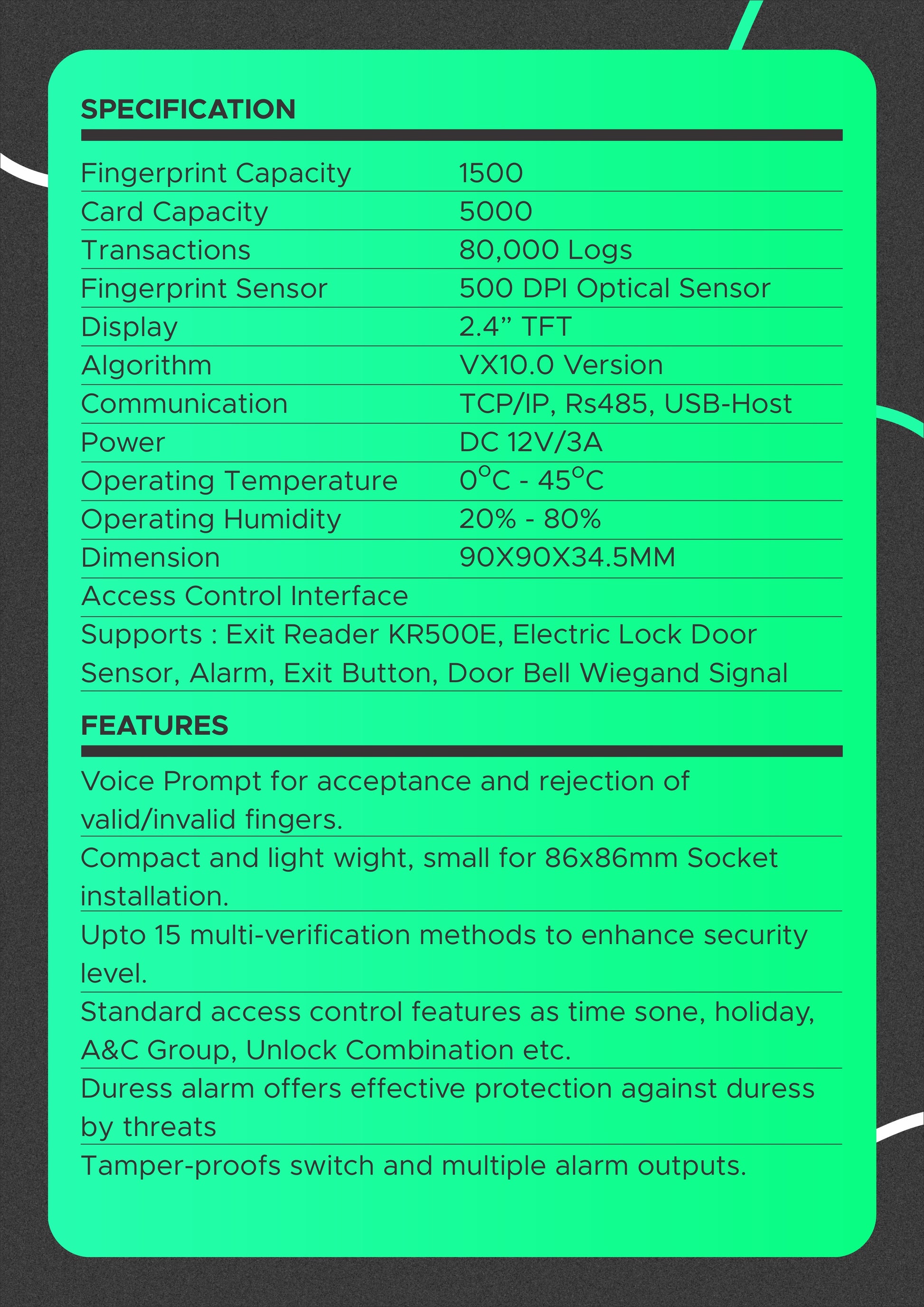

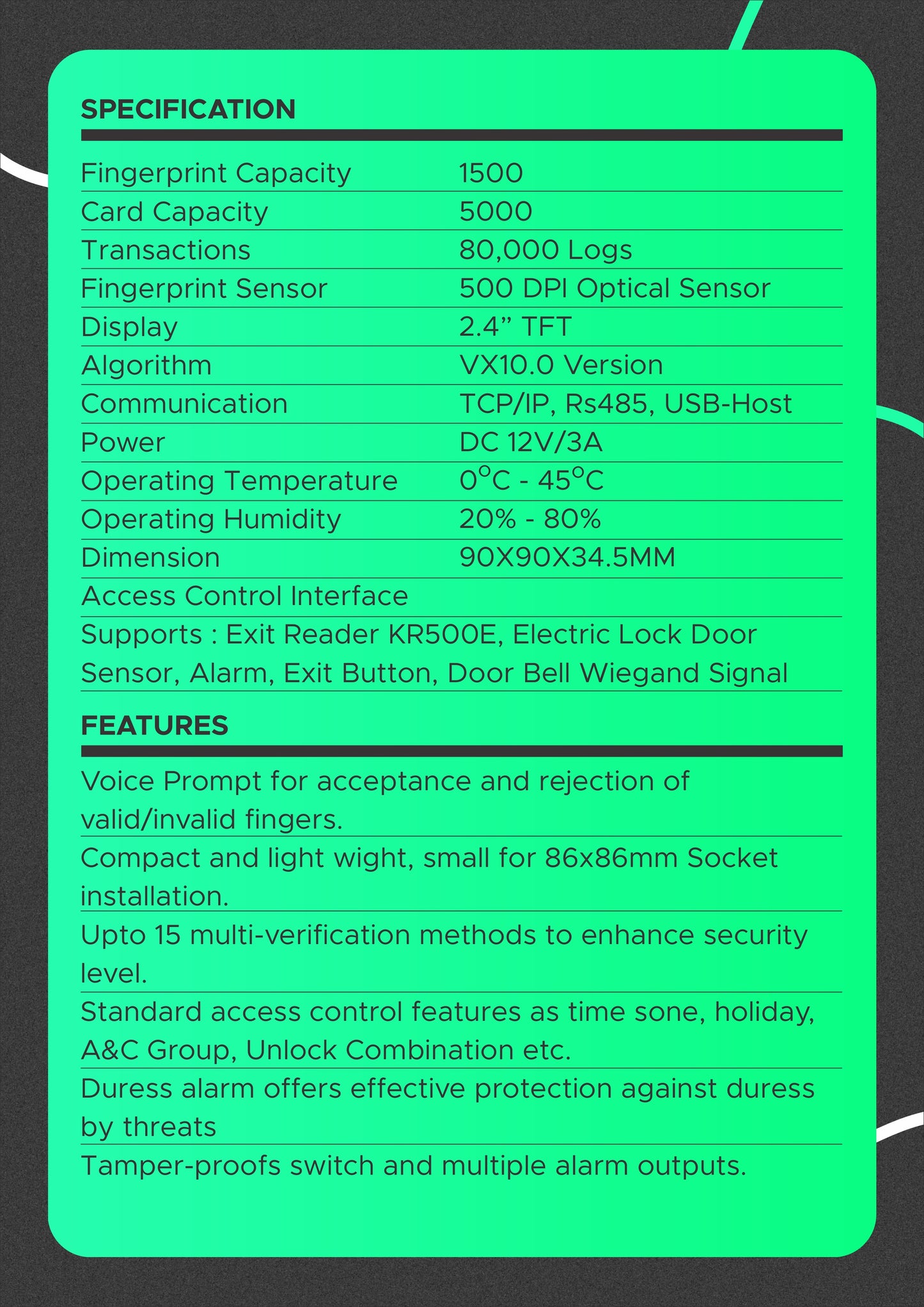

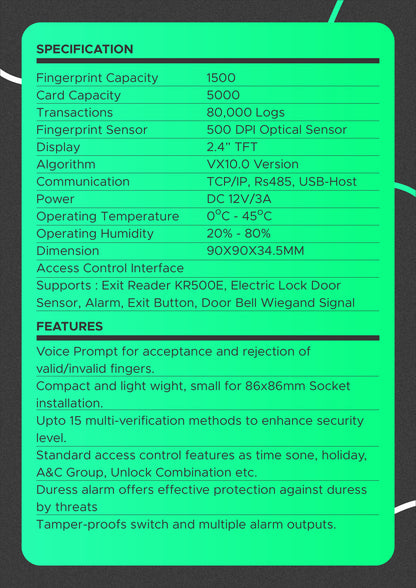

Key specifications
| Fingerprint capacity | 1,500 |
| Card capacity | 5,000 |
| Log capacity | 80,000 |
| Sensor | 500 DPI optical |
| Display | 2.4" TFT |
| Communication | TCP/IP, RS485, USB host, Wiegand in/out |
| Access control | Lock, door sensor, exit button, alarm, bell |
| Power | 12V DC, 3A |
| Dimensions | 90 × 90 × 34.5 mm |
| Operating temperature | 0–45 °C |
| Humidity | 20–80% |
Who should purchase it?
Offices, server rooms, labs and cabins that need fingerprint door access plus attendance in a small, clean-looking unit, for up to 1,500 fingerprint users.
How many users can it support?
1,500 fingerprint templates, 5,000 cards and 80,000 attendance logs.
Which biometric methods does it support?
Fingerprint (500 DPI optical sensor, ZKFinger VX10.0 algorithm) and card, with up to 15 multi-verification combinations.
Does it support TCP/IP, USB, Wi-Fi or cloud connectivity?
TCP/IP, RS485, USB host and Wiegand in/out. Wi-Fi and cloud push are confirmed on your quotation – ask our team.
Does it support an attendance application?
Yes. Attendance data is available through compatible eSSL / ZKTeco attendance and access software.
Which software is compatible?
ZKTeco's datasheet for the same platform lists ZKAccess 3.5 in network mode. The eSSL software bundle is confirmed on your quotation – ask our team; AmpleTrails can also integrate the data with your payroll or HRMS.
Does it support access control?
Yes – full single-door access control: electric lock, door sensor, exit button, alarm and door bell outputs, an optional KR500E exit reader, tamper switch, duress alarm, time zones, holidays, groups and unlock combinations.
What are the installation requirements?

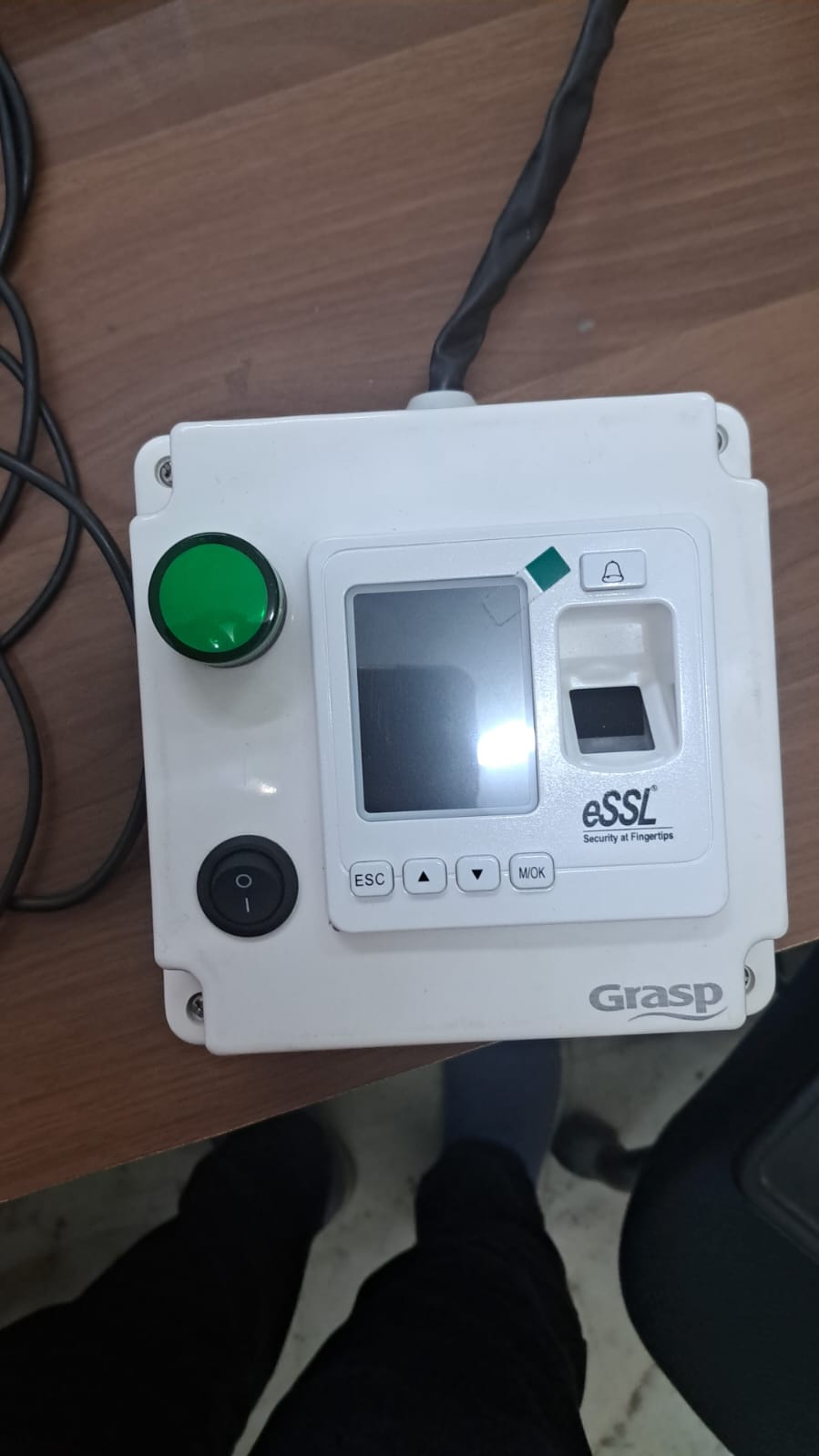

Power: 12V DC, 3A. Mounts in an 86 × 86 mm box. Operating temperature 0–45 °C, humidity 20–80%. Plan for the lock, exit button and lock power supply when used for door access. AmpleTrails installs and configures this device anywhere in India: mounting, network setup, software installation, employee enrolment and admin training. See installation services.
What is included in the box?
Box contents are confirmed on your quotation – ask our team.
What is the warranty?
Supplied with the eSSL manufacturer warranty through AmpleTrails, an authorised eSSL partner. The exact warranty term is stated on your invoice; our support team handles warranty claims for you.
What alternatives are available?
- eSSL F22 – larger keypad unit with built-in Wi-Fi
- eSSL X990 – higher capacity with 10,000 fingerprints
- eSSL iClock990 – 40,000-user terminal for large sites
- Browse all fingerprint attendance machines or the full eSSL range.
