eSSL iClock990 Fingerprint Attendance & Access Control Terminal – 40,000 Users, 3.5" Display
eSSL iClock990 Fingerprint Attendance & Access Control Terminal – 40,000 Users, 3.5" Display

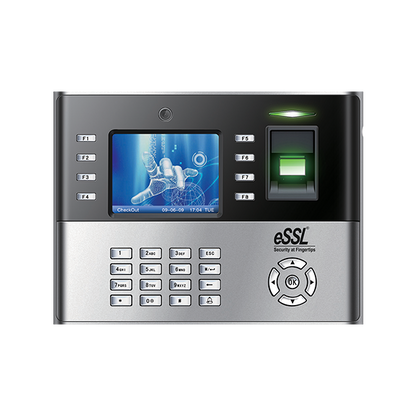

The eSSL iClock990 is a high-capacity standalone fingerprint terminal for time attendance and access control, with a 3.5-inch colour display, built-in card reader and push data.
Key specifications
| Users | 40,000 |
| Fingerprint capacity | 40,000 |
| Card capacity | 40,000 |
| Log capacity | 8,00,000 |
| Sensor | 500 DPI optical |
| Display | 3.5" colour TFT |
| Communication | TCP/IP, USB, push data; Wi-Fi / GPRS optional; Wiegand 26/34 |
| Access control | 12V relay, door sensor, fire alarm, anti-passback, bell |
| Power | 12V DC, 3A; optional battery |
| Dimensions | 210 × 157 × 40 mm |
| Operating temperature | 0–45 °C |
| Humidity | 20–80% |
Who should purchase it?
Large factories, hospitals, campuses and enterprises that need one terminal for thousands of employees, with door access, bells and optional Wi-Fi or GPRS.
How many users can it support?
40,000 users, 40,000 fingerprint templates, 40,000 cards and 8,00,000 attendance logs.
Which biometric methods does it support?
Fingerprint (500 DPI optical, v10 algorithm; 1:N and 1:1), card and password, with multi-verification combinations. Verification speed is 1 second or less (FAR ≤ 0.0001%, FRR ≤ 1%). Mifare or HID Prox card readers are optional.
Does it support TCP/IP, USB, Wi-Fi or cloud connectivity?
TCP/IP and USB as standard, with built-in push data. Wi-Fi or GPRS is available as an option. Wiegand 26/34-bit in/out.
Does it support an attendance application?
Yes. It works with eSSL eTimeTrackLite (desktop and web).
Which software is compatible?
eSSL eTimeTrackLite (desktop and web), eBioServer, Web Device Manager / ePush server and the eSSL SDK. Third-party payroll, HRMS and ERP integration is supported; AmpleTrails builds these integrations.
Does it support access control?
Yes – 12V relay for EM, bolt or strike locks, door sensor, fire alarm, anti-passback, door bell and schedule bell. Compatible exit readers include 101HE, FR1200 and KR500E. Optional external speaker, bulb and printer.
What are the installation requirements?
Power: 12V DC, 3A. An optional backup battery is available. Operating temperature 0–45 °C, humidity 20–80%. Plan for the lock and its power supply when used for door access. AmpleTrails installs and configures this device anywhere in India: mounting, network setup, software installation, employee enrolment and admin training. See installation services.
What is included in the box?
Box contents are confirmed on your quotation – ask our team.
What is the warranty?
Supplied with the eSSL manufacturer warranty through AmpleTrails, an authorised eSSL partner. The exact warranty term is stated on your invoice; our support team handles warranty claims for you.
What alternatives are available?
- eSSL X990 – same form factor with 10,000 fingerprints at a lower price
- eSSL F18 – eSSL access-control terminal
- eSSL E9C Wi-Fi – Wi-Fi attendance-only option for smaller sites
- Browse all fingerprint attendance machines or the full eSSL range.
Buy from an authorised eSSL partner
AmpleTrails is an authorised eSSL partner with PAN India installation and support. Call +91 90347 57673 or WhatsApp us for a quotation including installation.
Specifications: eSSL official product page. Specifications may change with manufacturer revisions; our team confirms the current version on your quotation.
