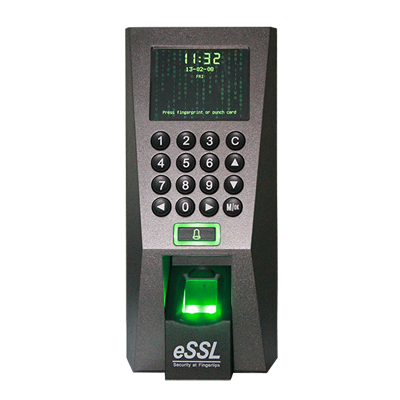

eSSL F18 Fingerprint Time Attendance & Access Control System

Rs. 0.00

Sale Sold out

eSSL F18 Fingerprint Time Attendance & Access Control System

The eSSL F18 is a powerful fingerprint-based Time Attendance and Access Control device designed for offices, factories, educational institutions, retail stores, and commercial facilities. Equipped with a high-speed processor and a 500 DPI optical fingerprint sensor, the F18 provides fast and accurate user authentication while offering advanced access control features for enhanced security.

High Capacity Storage

Stores up to 3,000 fingerprint templates, 5,000 cards, and 100,000 transaction logs, making it ideal for small and medium-sized organizations.

Advanced Access Control

Supports electric locks, door sensors, exit buttons, anti-passback, and Wiegand input/output for complete access management.

Fast & Accurate Recognition

Features a 500 DPI optical fingerprint sensor with identification speed of less than 0.5 seconds.

Multiple Communication Options

Supports TCP/IP and USB Host connectivity for easy data transfer and software integration.

Key Features

Fingerprint Time Attendance and Access Control Terminal.
3000 Fingerprint Capacity.
5000 Card Capacity.
100,000 Transaction Storage.
500 DPI Optical Fingerprint Sensor.
2.8-inch Color TFT Display.
TCP/IP and USB Host Communication.
Wiegand In & Out Support.
Door Sensor and Anti-Passback Function.
Compatible with RFID, Mifare and HID Prox Cards.
Supports third-party Payroll, HRMS and ERP Software.
Built-in Mini Speaker and LED Indicators.

Technical Specifications

Specification	Details
Model	F18
Fingerprint Capacity	3,000 Templates
Card Capacity	5,000 Cards
Transaction Capacity	100,000 Logs
CPU	32-bit High-End Microprocessor
Fingerprint Sensor	500 DPI Optical Sensor
Identification Speed	≤ 0.5 Seconds
FAR	≤ 0.0001%
FRR	≤ 1%
Display	2.8-inch Color TFT
Communication	TCP/IP, USB Host
Push Data	Supported
Wiegand	In & Out
Relay Output	12V Relay for EM Lock, Bolt Lock and Strike Lock
Door Sensor	Yes
Anti Passback	Yes
Power Supply	DC 12V – 1.5A
Operating Temperature	0°C to 45°C
Operating Humidity	20% – 80%
Dimensions	183 × 80 × 42 mm
Supported Exit Readers	FR1200 / KR500
Optional Card Types	Mifare / HID Prox
