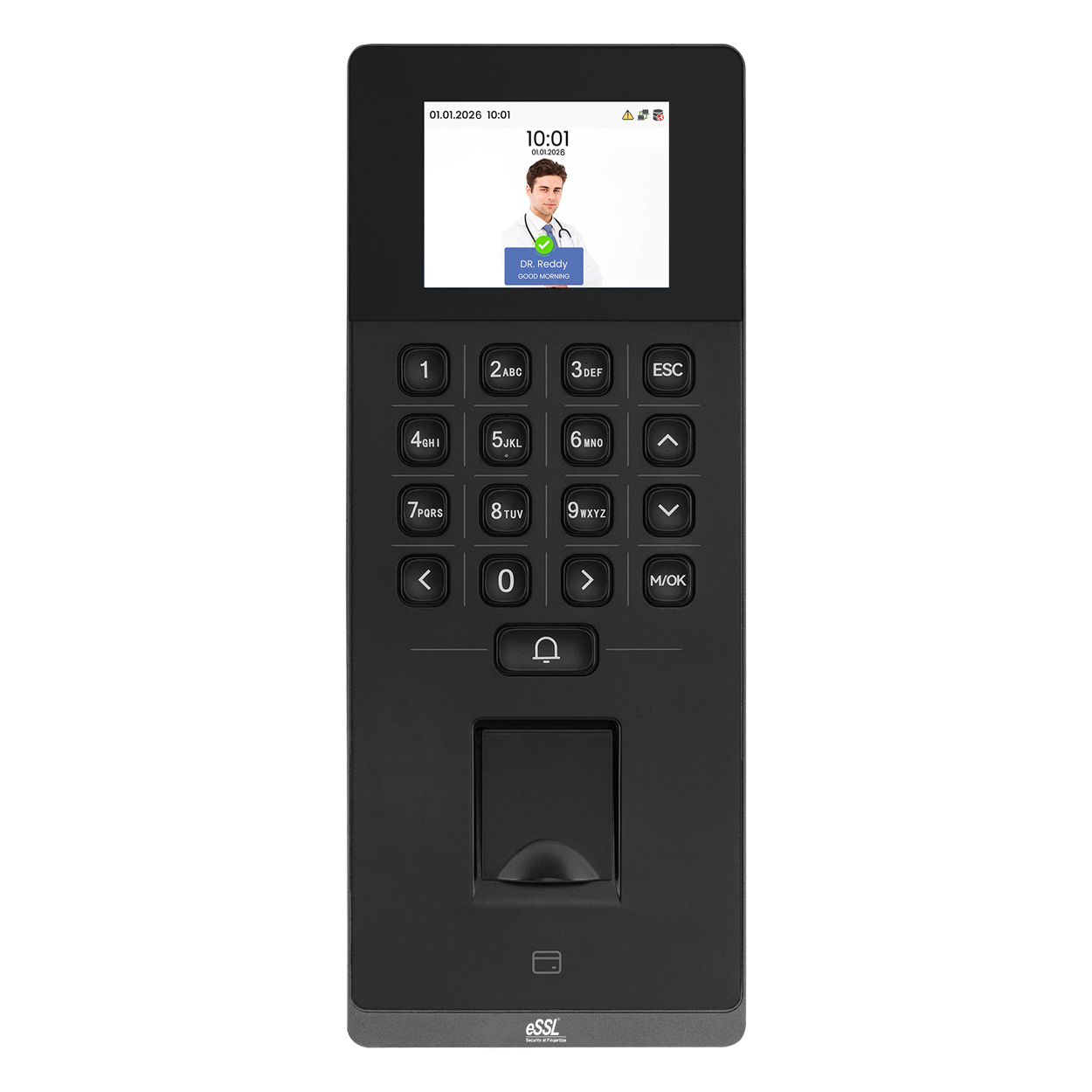

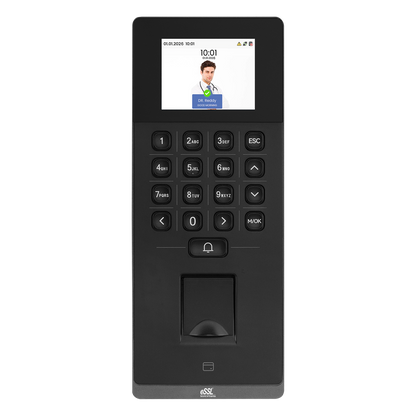

eSSL VEGA+W+POE Fingerprint Attendance Machine with WiFi & PoE

Rs. 10,117.00

~~Rs. 13,152.00~~ Rs. 10,117.00

Sale Sold out

VEGA+W+POE Fingerprint Time Attendance & Access Control Terminal

The VEGA+W+POE is an advanced biometric attendance and access control terminal designed for secure and efficient workforce management. Equipped with a 2.4-inch TFT Color LCD display, Linux operating system, and multiple authentication methods including Fingerprint, RFID Card, and Password, this device provides reliable and fast identification for offices, factories, institutions, and commercial facilities.

Featuring TCP/IP, Wi-Fi, RS485, Wiegand, USB, and PoE support, the VEGA+W+POE offers flexible connectivity options and seamless integration with access control systems. With an IP65-rated enclosure, the device is suitable for both indoor and outdoor installations.

Key Features

2.4-inch TFT Color LCD display with 240 × 320 resolution.
Linux operating system for stable performance.
Multiple authentication methods: Fingerprint, Card, and Password.
Supports up to 3,000 fingerprints, cards, and users.
Stores up to 200,000 transaction records.
Fast fingerprint recognition in less than 0.5 seconds.
Built-in Wi-Fi and TCP/IP communication.
Supports Wiegand, RS485, and USB communication.
Integrated access control interfaces.
Power over Ethernet (PoE) support.
IP65-rated dustproof and water-resistant design.

Product Advantages

Fast and accurate biometric authentication.
Multiple communication and integration options.
Large user and transaction storage capacity.
Suitable for both attendance and access control applications.
Durable IP65-rated enclosure for harsh environments.
Easy installation with PoE support.

Technical Specifications

Specification	Details
Product Name	VEGA+W+POE
Category	Fingerprint Time Attendance & Access Control Terminal
Display	2.4" TFT Color LCD Screen (240 × 320)
Operating System	Linux
Processor	Dual Core @ 1.0GHz
RAM	128MB
ROM	256MB
Speaker	8Ω ±15% @ 1.0W
Physical Keypad	17 Keys
Authentication Method	Fingerprint / Card / Password
Fingerprint Capacity	3,000 Templates (1:N)
Card Capacity	3,000 Cards (1:N)
User Capacity	3,000 Users (1:N)
Transaction Capacity	200,000 Records
User Password Length	6 – 8 Digits
Fingerprint Authentication Speed	Less than 0.5 Seconds
False Acceptance Rate (FAR)	≤ 0.0001%
False Rejection Rate (FRR)	≤ 0.01%
Card Type	125kHz Proximity Card (Standard), 13.56MHz MIFARE Card (Optional)
Communication	TCP/IP, Wi-Fi, Wiegand (Input/Output), RS485, USB
Access Control Interface	Electromagnetic Lock/Electric Lock, Door Sensor, Exit Button, Alarm Output
Power Supply	DC 12V 1.5A, PoE (IEEE 802.3)
Operating Temperature	-10°C to 55°C
Operating Humidity	10% to 90% RH (Non-Condensing)
Ingress Protection Rating	IP65
Dimensions	205.7 × 82.7 × 33 mm (L × W × H)
