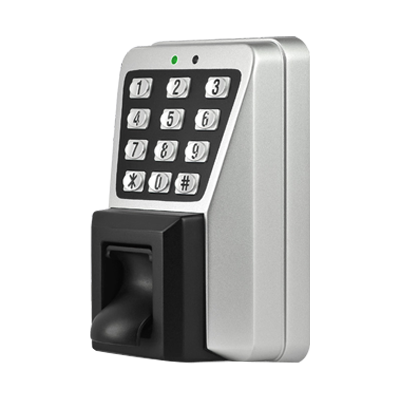

eSSL MA500 Outdoor Fingerprint Access Control Reader – IP65, Vandal Resistant, RS485 Master-Slave
eSSL MA500 Outdoor Fingerprint Access Control Reader – IP65, Vandal Resistant, RS485 Master-Slave
📞 Call 9315441078 for Best Price
The eSSL MA500 is a vandal-resistant, IP65 waterproof fingerprint access control reader for outdoor doors and gates, with Wiegand output and RS485 master-slave pairing.
Key specifications
| Fingerprint capacity | 3,000 |
| Card capacity | 30,000 |
| Log capacity | 1,00,000 |
| Sensor | Optical with protective cover, Finger V10.0 |
| Communication | TCP/IP, RS485, Wiegand out |
| Access control | Electric lock, door sensor, alarm, exit button, anti-passback |
| Ingress protection | IP65, vandal resistant |
| Power | 12V DC, 3A |
| Dimensions | 83 × 127.5 × 74 mm |
| Operating temperature | 0–45 °C |
| Humidity | 20–80% |
Who should purchase it?
Gates, outdoor doors, labs and secure areas with up to 3,000 users that need a rugged fingerprint reader, including in/out pairs with anti-passback.
How many users can it support?
3,000 fingerprints, 30,000 cards and 1,00,000 logs.
Which biometric methods does it support?
Fingerprint through an optical sensor with protective cover (Finger V10.0 algorithm). Proximity or Mifare card reading is available as an option.
Does it support TCP/IP, USB, Wi-Fi or cloud connectivity?
TCP/IP and RS485, with configurable Wiegand output for most access control panels.
Does it support an attendance application?
Attendance application support for this model is confirmed on your quotation – our team will share the current manufacturer details.
Which software is compatible?
Compatible software for this model is confirmed on your quotation – our team will share the current manufacturer details.
Does it support access control?
Yes – electric lock, door sensor, alarm and exit button, with anti-passback, master-slave entry/exit over RS485, and tamper, door-sensor and duress alarms.
What are the installation requirements?
Power: 12V DC, 3A. IP65 rated for outdoor installation. Operating temperature 0–45 °C, humidity 20–80%. Dimensions 83 × 127.5 × 74 mm. Plan the lock and its power supply. AmpleTrails installs and configures this device anywhere in India: mounting, network setup, software installation, employee enrolment and admin training. See installation services.
What is included in the box?
The box content list for this model is confirmed on your quotation – our team will share the current manufacturer details.
What is the warranty?
Supplied with the eSSL manufacturer warranty through AmpleTrails, an authorised eSSL partner. The exact warranty term is stated on your invoice, and our support team handles warranty claims for you.
What alternatives are available?
- eSSL VEGA+W+POE – IP65 terminal with Wi-Fi, PoE and 2,00,000 logs
- eSSL X7 – compact indoor single-door access terminal
- eSSL F6 – RS485 fingerprint reader for standalone access
- Browse all biometric attendance machines or the full eSSL attendance machines.
Buy from an authorised eSSL partner
AmpleTrails is an authorised eSSL partner with PAN India installation and support. Call +91 90347 57673 or WhatsApp us for a quotation including installation.
Specifications: eSSL official product page; eSSL catalogue PDF. Specifications may change with manufacturer revisions; our team confirms the current version on your quotation.
