Matrix COSEC ARGO FOI212 Fingerprint Door Controller – HID iClass Card, Wi-Fi, PoE, IP65
Matrix COSEC ARGO FOI212 Fingerprint Door Controller – HID iClass Card, Wi-Fi, PoE, IP65

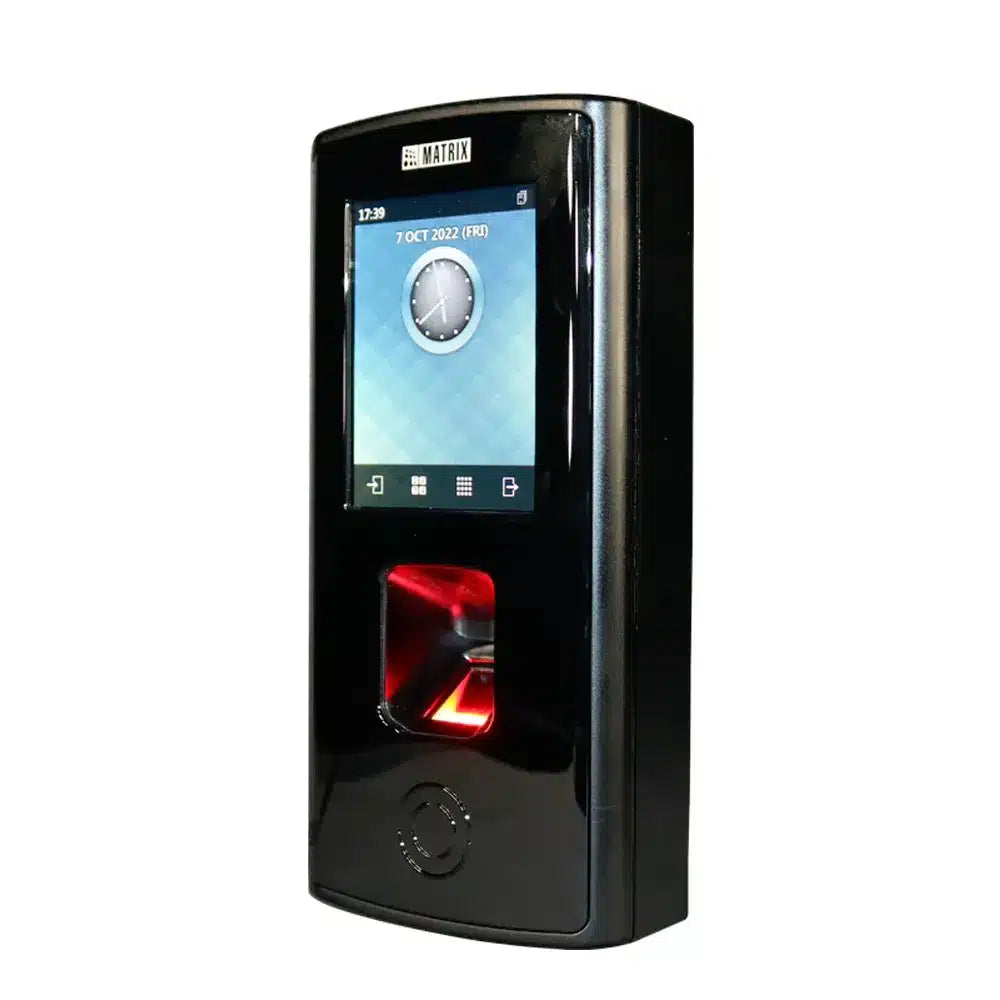

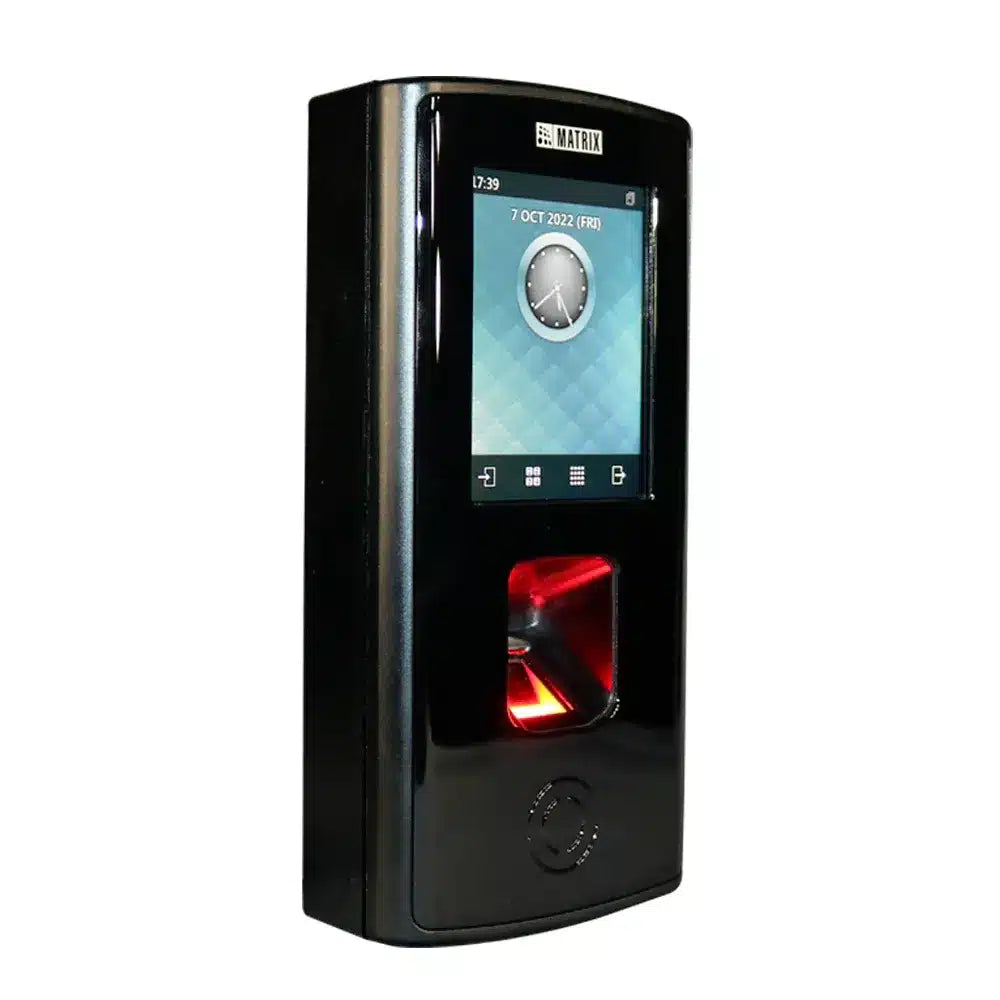

The Matrix COSEC ARGO FOI212 is a fingerprint and HID iClass card door controller with a 3.5-inch Gorilla Glass touchscreen, for time attendance and access control indoors and outdoors.
Key specifications
| Credentials | Fingerprint, RF card, PIN, Bluetooth mobile |
| Card type | HID iClass (also reads HID Prox, EM Prox and Mifare/DESFire CSN) |
| User capacity | 50,000 |
| Fingerprint templates | 25,000 (1:N), 1,00,000 (1:1) |
| Event buffer | 5,00,000 |
| Sensor | Suprema SFM6030 optical, 500 dpi |
| Display | 3.5" IPS capacitive touchscreen, 480 x 320, Gorilla Glass |
| Network | Ethernet 10/100, PoE (802.3af), Wi-Fi, Bluetooth, 3G/4G/LTE, micro USB, RS-232 |
| Door interface | Form C relay 30 V DC @ 2 A, door sense, exit switch, Wiegand in/out |
| Protection | IP65, tamper detection, IK06 |
| Operating temperature | 0 to +50 °C |
| Dimensions | 186 x 74 x 50 mm (wall), 186 x 74 x 16 mm (flush); 0.55 kg |
Who should purchase it?
Offices, factories, data centres and campuses that want fast fingerprint plus card access control and attendance in a rugged IP65 device, managed centrally in COSEC.
How many users can it support?
Up to 50,000 users, 25,000 fingerprint templates in 1:N mode (1,00,000 in 1:1 mode), up to 10 templates per user and 5,00,000 events.
Which biometric methods does it support?
Fingerprint (Suprema SFM6030 optical sensor, 500 dpi), HID iClass card, PIN and Bluetooth mobile credential.
Does it support TCP/IP, USB, Wi-Fi or cloud connectivity?
Ethernet 10/100 Mbps, PoE (IEEE 802.3af), Wi-Fi 802.11 b/g/n, Bluetooth (8 m range), 3G/4G/LTE mobile broadband, micro USB and RS-232.
Does it support an attendance application?
Yes. Employees can use their smartphone as a Bluetooth mobile credential at the device, and attendance records flow to the COSEC platform for reports.
Which software is compatible?
Matrix COSEC CENTRA (server-based, on-premise) or COSEC VYOM (cloud-based), with the Matrix API available for third-party integration. AmpleTrails can integrate the attendance data with your payroll or HRMS. It also works in panel door mode with COSEC PANEL200P.
Does it support access control?
Yes. Door controller with Form C door lock relay (30 V DC @ 2 A), door status sense, exit switch, Wiegand in/out and RS-232 reader interfaces, plus tamper detection.
What are the installation requirements?
Wall mount or flush mount. Power by PoE or a 12 V DC @ 2 A adapter; locks above 500 mA use an external lock supply. IP65 rated, operating range 0 to +50 °C. AmpleTrails installs and configures this device anywhere in India: mounting, network setup, software installation, employee enrolment and admin training. See installation services.
What is included in the box?
The box content list for this model is confirmed on your quotation – our team will share the current manufacturer details.
What is the warranty?
Supplied with the Matrix manufacturer warranty through AmpleTrails, an authorised Matrix partner. The exact warranty term is stated on your invoice, and our support team handles warranty claims for you.
What alternatives are available?
- Matrix COSEC ARGO FOM212 – Mifare card version
- Matrix COSEC PATH DCFI – compact HID fingerprint controller for narrow door frames
- Matrix COSEC ARGO FACE210I – touchless face recognition with HID cards
- Browse all biometric attendance machines or the full Matrix attendance machines.
Buy from an authorised Matrix partner
AmpleTrails is an authorised Matrix partner with PAN India installation and support. Call +91 90347 57673 or WhatsApp us for a quotation including installation.
Specifications: Matrix COSEC ARGO FOI212 technical specifications. Specifications may change with manufacturer revisions; our team confirms the current version on your quotation.
