Matrix COSEC VEGA FAX Fingerprint Door Controller – RFID Card, BLE, Wi-Fi, PoE

Matrix COSEC VEGA FAX Fingerprint Door Controller – RFID Card, BLE, Wi-Fi, PoE

Rs. 25,168.00
Rs. 43,560.00 Rs. 25,168.00
Sale Sold out

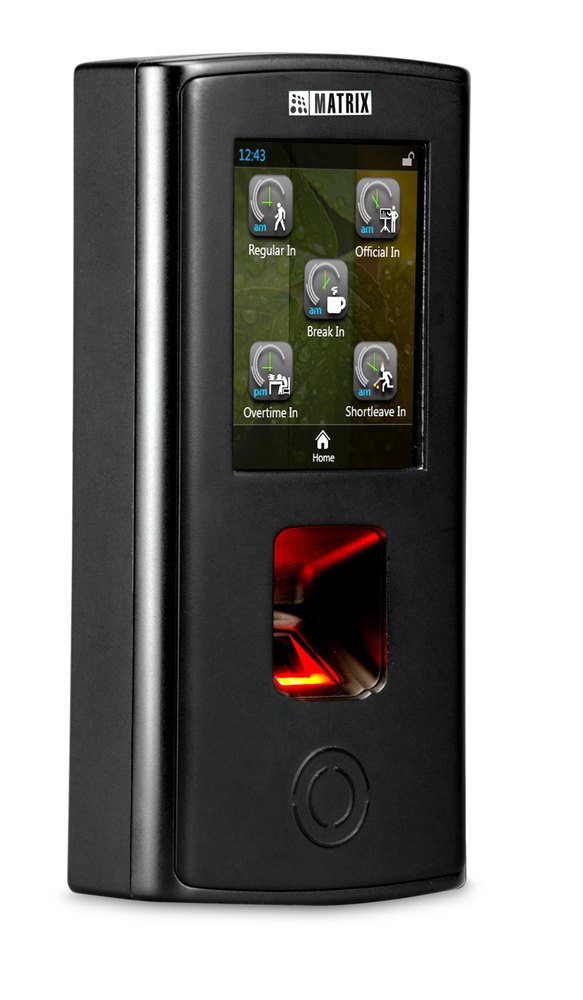

The Matrix COSEC VEGA FAX is a fingerprint, RFID card, PIN and Bluetooth door controller with a 3.5-inch touchscreen, for time attendance and access control. It comes in EM Prox (FAE), Mifare (FAM) and HID iClass (FAI) card versions; your card version is confirmed on your quotation.

Key specifications

Credentials Fingerprint, RFID card, PIN, BLE mobile
Card versions FAE (EM Prox), FAM (Mifare/DESFire/NFC), FAI (HID iClass/Prox)
User capacity 50,000
Fingerprint templates 9,600 (1:N), 1,00,000 (1:1)
Event buffer 5,00,000
Sensor Suprema SFM5030 optical, 500 dpi
Display 3.5" capacitive touch TFT, 320 x 240
Network Ethernet 10/100, PoE (802.3af), Wi-Fi, BLE, 3G/4G/LTE, USB, RS-232
Door interface Form C relay, door sense, exit switch, aux in/out, Wiegand in/out
Protection IP65, tamper detection
Dimensions 91 x 186 x 38 mm; 0.54 kg

Who should purchase it?

Offices, plants and institutions that want fingerprint-based door access and attendance with flexible connectivity (PoE, Wi-Fi, 4G), managed centrally in COSEC.

How many users can it support?

Up to 50,000 users, 9,600 fingerprint templates in 1:N mode (1,00,000 in 1:1 mode), 2 cards per user and 5,00,000 events.

Which biometric methods does it support?

Fingerprint (Suprema SFM5030 optical sensor, 500 dpi, FAR 0.001%), RFID card (EM Prox, Mifare/DESFire/NFC or HID iClass/Prox by version), PIN and Bluetooth (BLE) mobile credential.

Does it support TCP/IP, USB, Wi-Fi or cloud connectivity?

Ethernet 10/100 Mbps, PoE (IEEE 802.3af), Wi-Fi 802.11 b/g/n, Bluetooth BLE, 3G/4G/LTE mobile broadband, USB and RS-232.

Does it support an attendance application?

Yes. Employees can use their smartphone as a Bluetooth (BLE) mobile credential at the device, and attendance records flow to COSEC CENTRA or COSEC VYOM for reports.

Which software is compatible?

Matrix COSEC CENTRA (server-based, on-premise) or COSEC VYOM (cloud-based), with the Matrix API available for third-party integration. AmpleTrails can integrate the attendance data with your payroll or HRMS. It also works in panel door mode with COSEC PANEL200P.

Does it support access control?

Yes. Door controller with Form C door lock relay, programmable door status sense, exit switch, aux in/out, Wiegand in/out and tamper detection.

What are the installation requirements?

Wall mount. Power by PoE or a 12 V DC @ 2 A adapter, with battery backup support. IP65 rated, operating range 0 to +45 °C (datasheet). AmpleTrails installs and configures this device anywhere in India: mounting, network setup, software installation, employee enrolment and admin training. See installation services.

What is included in the box?

The box content list for this model is confirmed on your quotation – our team will share the current manufacturer details.

What is the warranty?

Supplied with the Matrix manufacturer warranty through AmpleTrails, an authorised Matrix partner. The exact warranty term is stated on your invoice, and our support team handles warranty claims for you.

What alternatives are available?

Buy from an authorised Matrix partner

AmpleTrails is an authorised Matrix partner with PAN India installation and support. Call +91 90347 57673 or WhatsApp us for a quotation including installation.

Specifications: Matrix COSEC VEGA official product page; Matrix COSEC VEGA FAX technical specifications. Specifications may change with manufacturer revisions; our team confirms the current version on your quotation.
